28
OPTIONAL ACCESSORY
A
Introduction
Economizer kit is an accessory provided by the factory, but requires fi eld installation. Economizer kit is compatible for R410A
rooftop models. If you are unsure whether this kit can be used with your particular unit, please contact authorized service
division. The economizer kit allows outside air to be mixed with return air for ‘free’ cooling if the outdoor air temperature is
suitable. Economizer cooling can be used alone or in conjunction with mechanical cooling. Beside that, the economizer
kit can be used as well to provide ventilation air thus can improve indoor air quality. It is vital to do a correct selection on
economizer kit, refer the table below for kit selection guideline:
ECONOMIZER KIT
No.
Rooftop Unit
Economizer kit which is compatible with
rooftop unit
1
UATYQ250
ECONO250
2
UATYQ350
ECONO350
3
UATYQ450
ECONO450
4
UATYQ550
ECONO550
5
UATYQ600
ECONO600
6
UATYQ700
ECONO700
Wrong selection may cause the kit is unable to be assembled with the rooftop unit.
B
Preinstallation Checking
(i)

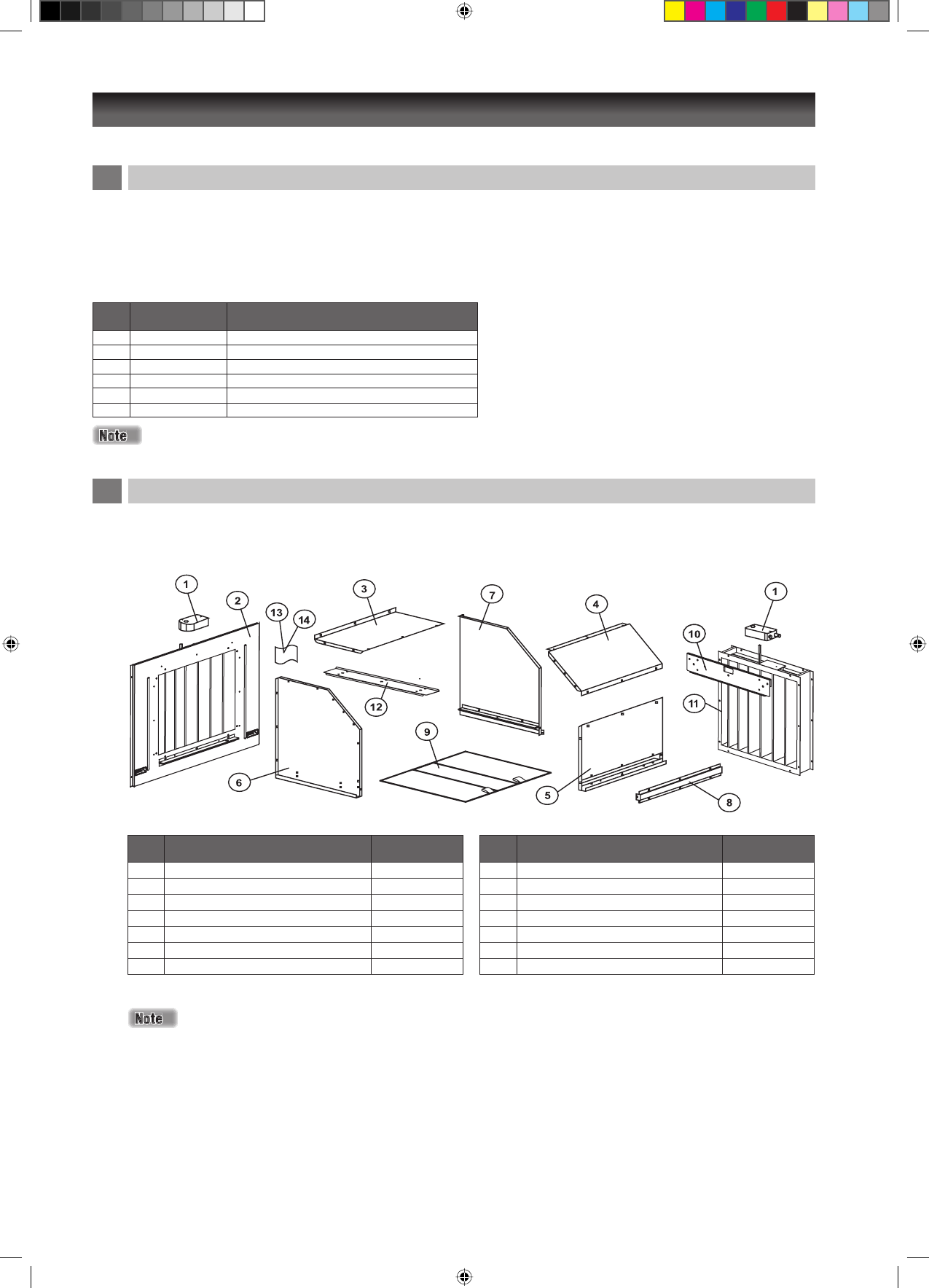

The Contents of Economizer Kit
Before installation, it is recommended to check the contents of the economizer kit after removing the packaging.
The kit includes the following components:
No.
Item Description
Quantity
(set)
1
Belimo actuator, LF24-SR
2
2
Side panel with outdoor air damper
1
3
Hood, top panel
1
4
Hood, center panel
1
5
Hood, bottom panel
1
6
Hood, side panel left
1
7
Hood, side panel right
1
No.
Item Description
Quantity
(set)
8
Filter cover
1
9
Filter
1
10
Support bracket, return air damper
1
11
Return air damper
1
12
Support bracket, down throw
1
13
Screw, M5x16
55
14
Screw, M4x12
4
Contact authorized service division if accessory is damaged or incomplete.
(ii) Unit
Clearance
Provide suffi
cient space for air fl ow, servicing and wiring after the kit is mounted on the unit. There shall be no
obstruction of air fl ow in this space. Refer to part (F) under chapter “INSTALLATION OF THE UNIT” in this manual. Fail
to do so may cause low air fl ow or unit malfunction.
* Support bracket, down throw (item 12) is not available in ECON0700.
