17

ENGLISH

Remove the
side panel

Remove the
Pulley Belt

Detached the

blower support

Detached
blower

Remove screws
at both sides

For UATYQ250:

The two side plates are screwed
on the blower support as shown

For UATYQ350, 450, 550, 600 & 700

The two downfl ow structure
are screwed to blower

Cover the
horizontal supply
opening with the
blower support
that detached
from the blower
and screw tightly.
Refer Note 2.

Turn the blower to face bottom.
Screw at both sides.

Install back the pulley
belt. Adjust the belt
tension by moving the
motor base.

Cover the horizontal
return opening with the
cover and screw tightly.
Refer Note 2.

Unscrew the vertical return
cover from the base panel

Remove the side
panel at return side

Lastly, install back the side panel.

Install back the pulley belt. Adjust the belt tension. Lastly, install back the side panel. Refer Note 1.

For downthrow conversion, belt length need to be changed.
For unit with standard pulley, belt length  = a mm
Shaft to shaft distance for downthrow, C-C  = b mm

UATYQ250

UATYQ350

UATYQ450

UATYQ550

UATYQ600

UATYQ700

a

1382

1357

1250

1382

1382

1382

b

375

388

375

445

445

435

G

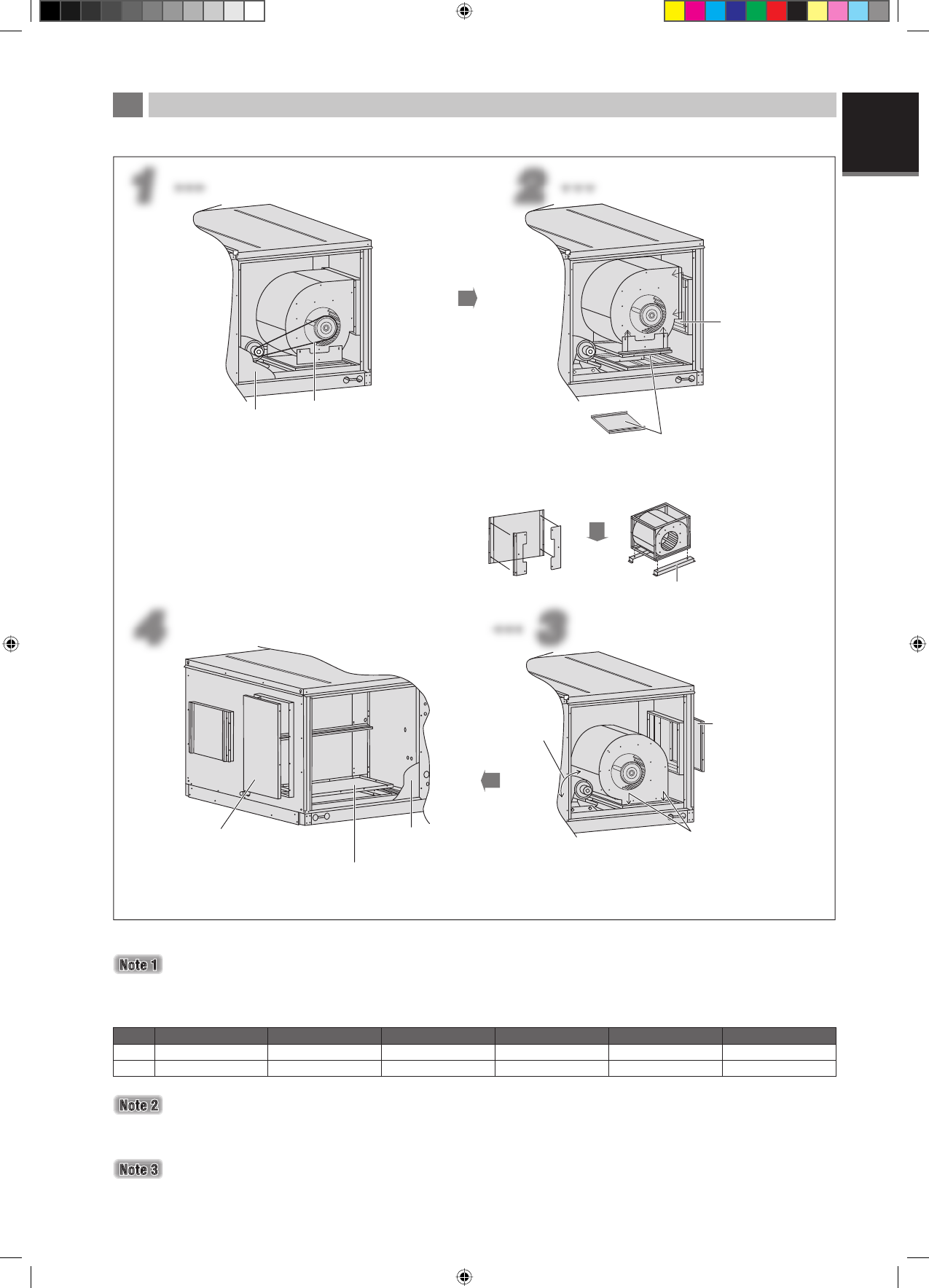

Unit Conversion

In the case of converting standard unit to downthrow unit, follow the steps as stated below:

UATYQ250, 350, 450, 550, 600 & 700

1

1

ÑÑÑ

2

2

ÇÇÇ

ÉÉÉ

 3

 3

4

4

Sealant such like gasket (fi eld supply) shall be placed in between the metal cover and fl ange. Besides that, weather-
proof silicone shall be applied on all the joints, screw holes and gaps to ensure water-tight condition.

Refer Engineering Data Book for blower curve and technical data of variable pitch pulley.
