Adjusting Bevel Angles

(Saw Blade)

Adjusting the Bevel Angle Range from 0 °  to
45 °

As a standard, bevel angles can be variably set
in the range from 0 °  to 45 ° .
– Lightly unscrew the locking knob

22

 in anti-

clockwise direction.

– Set the standard bevel angle range (push le-

ver

26

 toward the left).

– Turn rotary knob

20

 until the indicator for

bevel angle

21

 indicates the requested bevel

angle on scale

19

.

– Tighten the locking knob

22

 again.

Adjusting the Extended Bevel Angle Range
– 1,5 °   to  + 46,5 °

The additional bevel angle range of

±

1,5 °  can be

set for sawing undercuts. This is used to prevent
the formation of gaps when joining bevel-cut
workpieces.

– Lightly unscrew the locking knob

22

 in anti-

clockwise direction.

– Lightly turn rotary knob

20

 in anticlockwise

direction away from the 0 °  position.

– Set the extended bevel angle range (push le-

ver

26

 toward the right).

– Turn rotary knob

20

 until the indicator for

bevel angle

21

 indicates the requested bevel

angle on scale

19

.

– Tighten the locking knob

22

 again.

Marking the Cutting Line (see figure M)

A laser beam indicates the saw blade cutting
line. This allows for exact positioning of the
workpiece and the fence

36

 for sawing.

Before sawing, check if the cutting line is still in-
dicated correctly (see “Adjusting the Laser”,
page 42). The laser beam, as an example, can
misadjust due to vibrations after intensive use.
– Switch the laser beam on with switch

44

.

– Align your mark on the workpiece along the

laser beam.

Adjusting the Universal Guide

f

For all cuts, firstly ensure that the saw
blade cannot touch or graze against the
stops (guide rail 31 or fence 36 of the uni-
versal guide) or any other machine parts.

Depending on the operating mode, the universal
guide

1

 can be used differently:

– as cross or angle stop when using as a pull

push saw,

– as parallel guide when using as a table saw.

Using the Universal Guide as Cross or Angle
Stop (see figure N1)

– Mount the universal guide

1

 left or right on

the saw table

7

 or the table extension

27

.

(see “Mounting the Universal Guide”,
page 44)

Note:

When sawing bevel angles, the univer-

sal guide should be mounted to the

right of

the saw blade

.

– Depending on the workpiece size and on the

set bevel angle, mount the fence

36

upright

or flat

 to the universal guide

1

. (see “Mount-

ing the Fence to the Universal Guide”,
page 44)

– Adjust the desired mitre angle. (see “Adjust-

ing Mitre Angles”, page 46)

– Check if the fence

36

 is out of the cutting

range.
Loosen wing bolt

34

 as required, move the

fence

36

 and retighten wing bolt

34

.

Note:

To avoid jamming or slipping of the

workpiece, the clearance between saw blade

28

 and fence

36

may not exceed 15 mm

(max.)

.

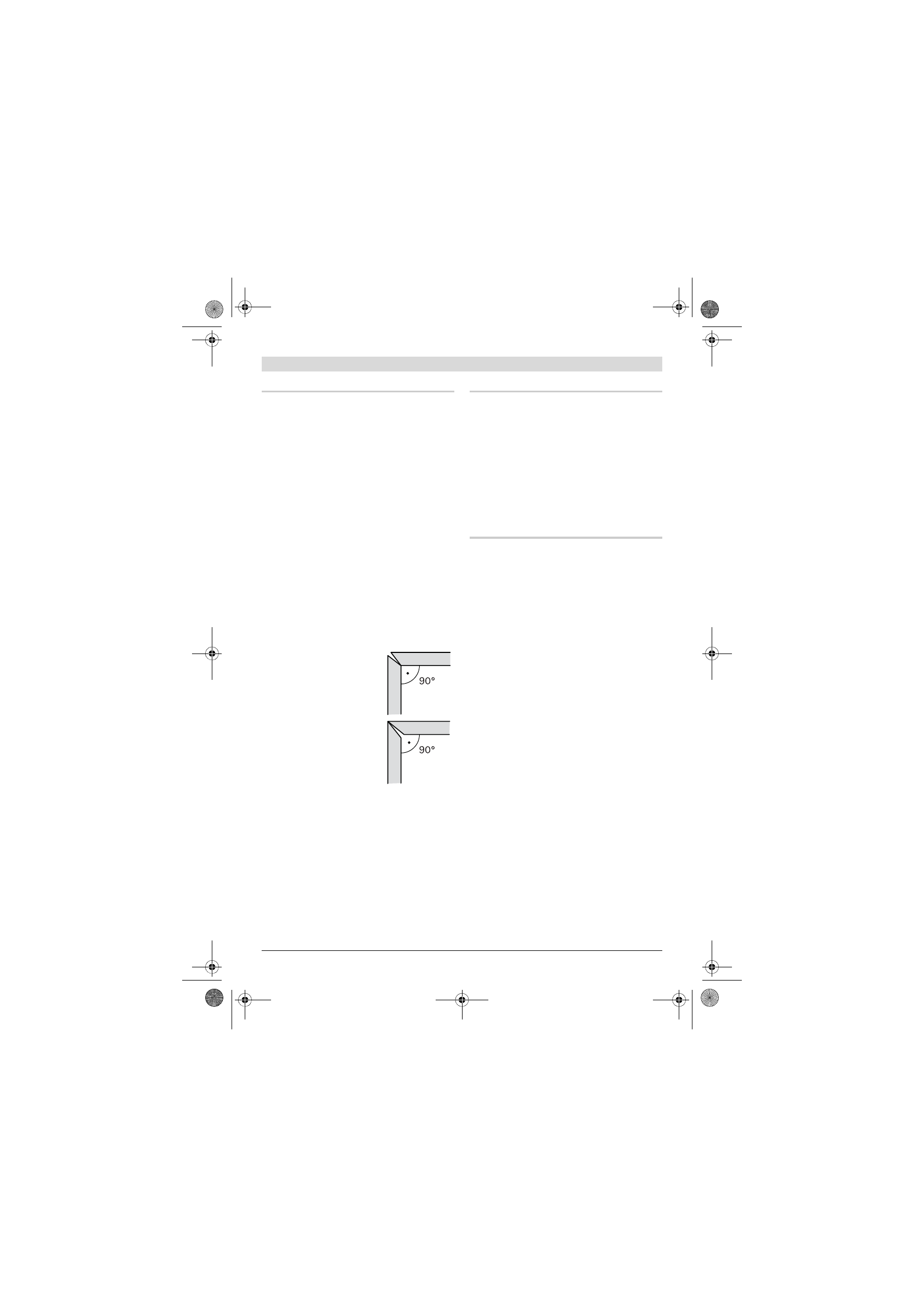

Bevel-cut workpieces without
undercut

Bevel-cut workpieces with un-
dercut
