Product Description and Speci-
fications

Read all safety warnings and all in-
structions.

Failure to follow the

warnings and instructions may re-
sult in electric shock, fire and/or se-
rious injury.

Intended Use

The power tool is intended as a stationary ma-
chine for making straight lengthways and cross-
ways cuts in wood.
Bevel angles are possible from maximum – 1,5 °
to + 46,5 ° ; the universal guide allows for adjust-
ing mitre cuts from 90 °  (left side) to 90 °  (right
side).
The capacity of the power tool is designed for
sawing hardwood and softwood, as well as par-
ticle and fibre board.
The power tool is not suitable for cutting alumin-
ium or other non-ferrous metals or alloys.

Product Features

The numbering of the components shown refers
to the representation of the power tool on the
graphic pages.

1

Universal guide

2

Laser warning label

3

Blade guard

4

Riving knife

5

Insert plate

6

Recessed handles

7

Saw table

8

Guide groove for universal guide

1

 or table

extension

27

9

Mounting holes

10

Sawdust ejector

11

Storage compartment for push stick

12

Push stick

13

Allen key (6 mm/4 mm)

14

Scale for clearance of the saw blade to the
universal guide

15

Sticker for marking of the cutting line

16

ON button

17

OFF button

18

Crank for lowering and raising the saw blade

19

Scale for bevel angle

20

Rotary knob for adjustment of bevel angles

21

Indicator for bevel angle

22

Locking knob for adjustment of bevel angles

23

Pull handle for sliding action

24

Release lever for sliding action

25

Lever for locking the saw blade in the centre
of the saw table

26

Bevel override

27

Table extension

28

Saw blade

29

Cable holder

30

Extension plate for the universal guide

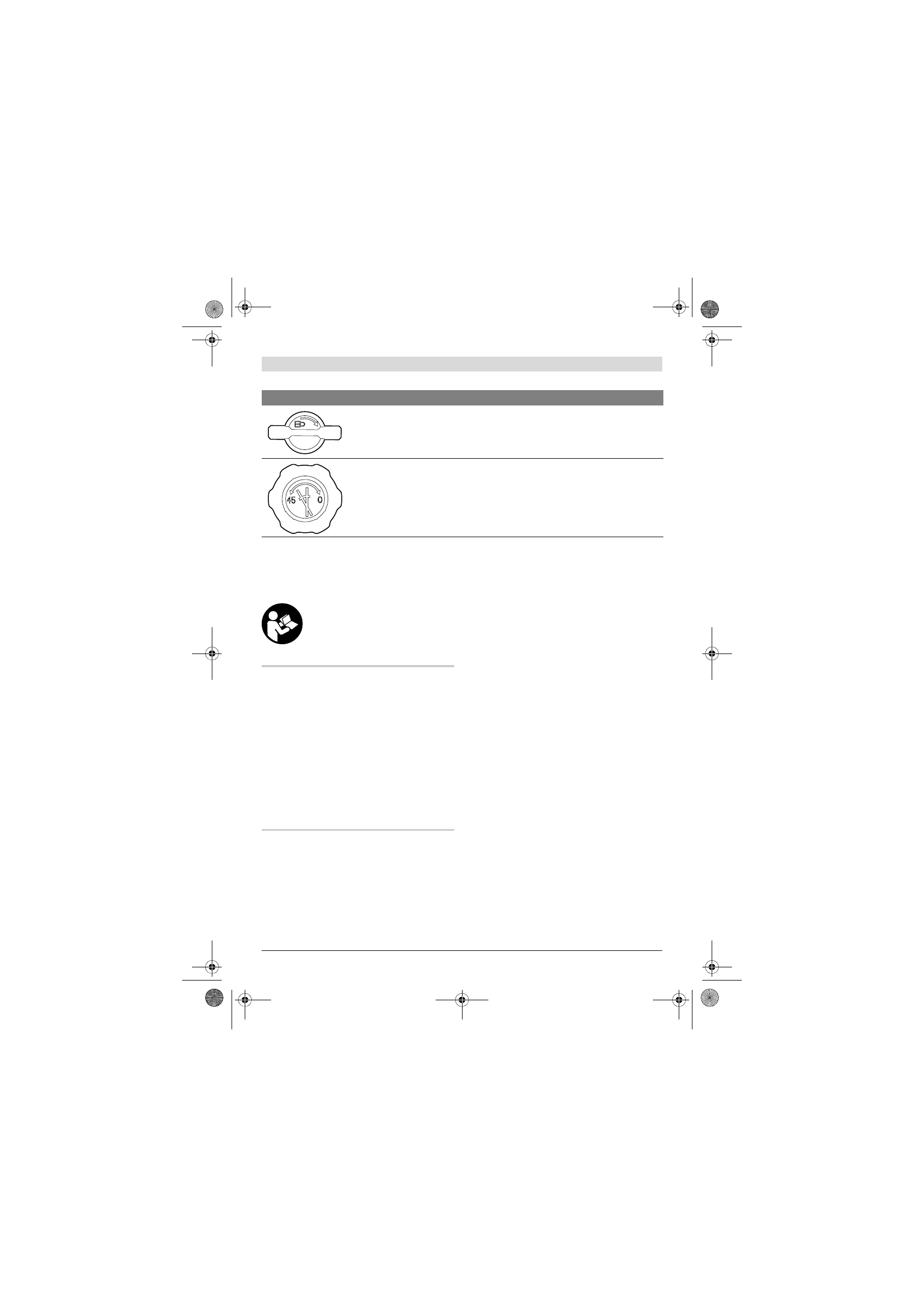

Turning direction of the locking knob for locking bevel angles

Possible turning directions of the rotary knob for adjusting bevel an-
gles

Symbol

Meaning
