 English |

39

Bosch Power Tools

1 609 929 W71 | (30.3.11)

f

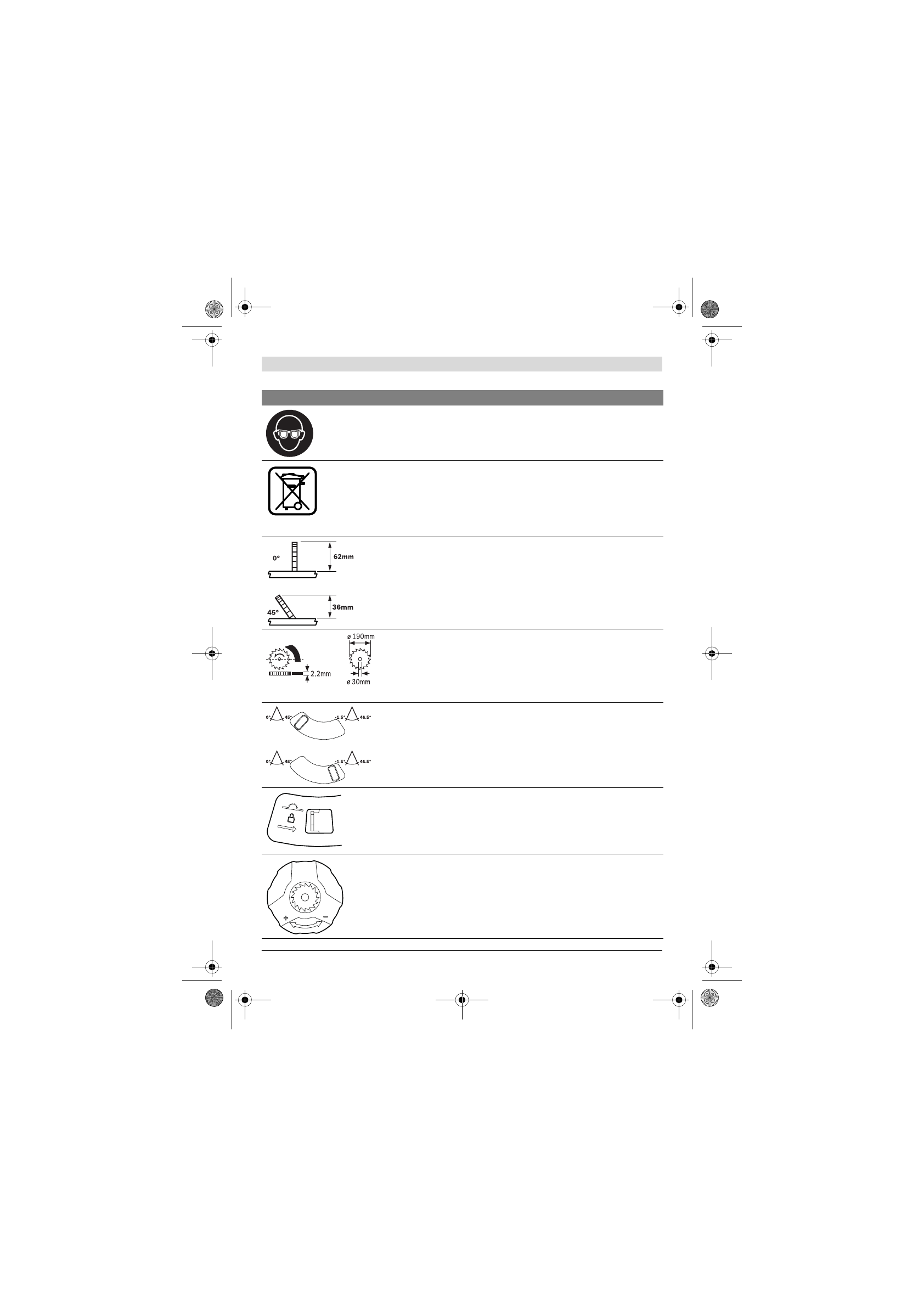

Wear safety goggles.

Do not dispose of power tools into household waste!

Only for EC countries:

According to the European Guideline 2002/96/EC for Waste Electrical and Electron-
ic Equipment and its implementation into national right, power tools that are no
longer usable must be collected separately and disposed of in an environmentally
correct manner.

Indicates the maximum permissible workpiece height for the stand-
ard bevel angles 0 °  and 45 ° .

Observe the dimensions of the saw blade. The hole diameter must
match the tool spindle without play. Do not use reducers or adapters.
When changing the saw blade, pay attention that the kerf width is not
less than 2,2 mm and the blade thickness not greater than 2,2 mm.
Otherwise, there is danger that the riving knife (2,2 mm) becomes
wedged in the workpiece.

Bevel angle range (possible tilting range of the saw blade)

– Left position of bevel override:

Standard bevel angle range 0 °  to 45 °

– Right position of bevel override:

Extension of the standard bevel angle range for undercuts; Also see
“Adjusting the Extended Bevel Angle Range – 1,5 °  to + 46,5 °”,
page 47

To lock the saw blade in the centre of the saw table (operation as a
table saw), push the lever to the right.

Possible turning directions of the crank

– Anticlockwise direction (– ): For lowering the saw blade (

transport

position

)

– Clockwise direction (+): For raising the saw blade (

working posi-

tion

)

Symbol

Meaning
