– Fit the chain links around the drive sprocket

18

 and mount

the chain bar

11

 in such a manner that the guide fins

20

 in

front and behind the fastening bolt

21

 engage into the key-

way of the chain bar

11

.

– Check if all parts are seated properly and hold the chain

bar and the chain in this position.

– Fit  the  cover

15

 exactly and take care that the chain catch

bolt

23

 engages into the groove of the cover plate

15

.

– Lightly tighten the cover

15

 with the locking knob

14

.

– The chain is not yet tensioned. The saw chain is tensioned

as described in section “Tensioning the Saw Chain”.

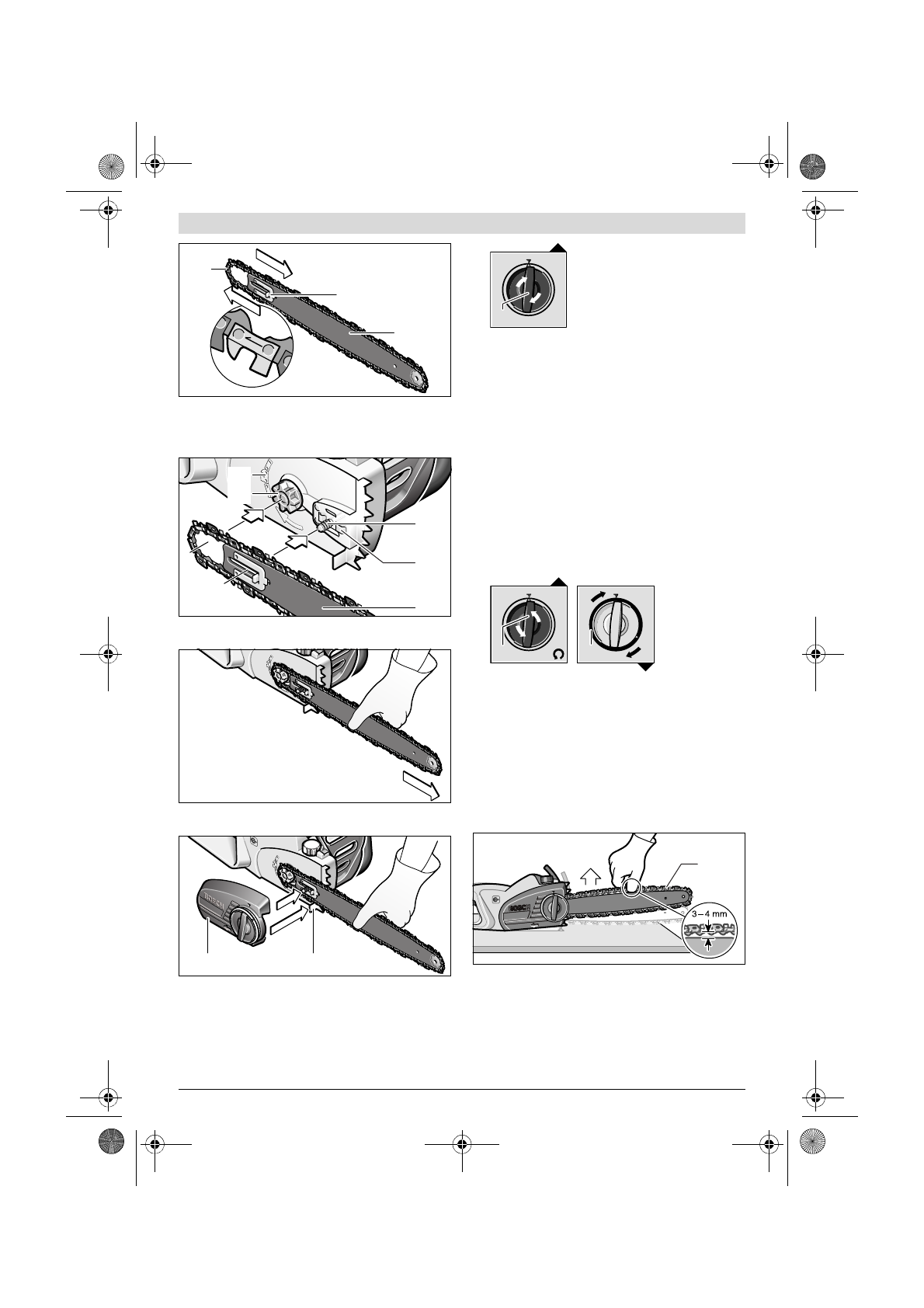

Tensioning the Saw Chain (see figures A and C)

Always check the chain tension before use, after the first cuts
and regularly during use approx. every 10 minutes. Upon ini-
tial operation, new chains can lengthen considerably.

The chain life of the saw chain mainly depends upon sufficient
lubrication and correct tensioning.

Avoid tensioning the chain if it is hot, as this will cause the
chain to become overtensioned and face too tightly against
the chain bar when it cools down.

– Place the chain saw on any suitable flat surface.
– Turn  locking  knob

14

 approx. 1 – 3 turns anticlockwise to

loosen the chain bar.

– Check if the chain links are correctly located in the slot

around the chain bar

11

 and on the drive sprocket

18

.

– Turn the red chain-tensioning ring

13

 clockwise ratcheting

until the correct chain tension is reached. The ratchet
mechanism prevents the chain tension from loosening. If
the chain-tensioning ring

13

 is hard to turn, loosen the

locking knob

14

 further in anticlockwise direction. The

locking knob

14

 may also turn, when adjusting the chain-

tensioning ring

13

.

– The  saw  chain

10

 is correctly tensioned when it can be

raised approx. 3 – 4 mm from the chain bar in the centre.
This should be done by using one hand to raise the saw
chain against the weight of the machine.

– If  the  saw  chain

10

 is overtensioned, turn the chain-ten-

sioning ring

13

 in anticlockwise direction.
