SPARK PLUG
(70/100/150,000 Btu/Hr Models)
1. Remove upper shell (see page 6).
2. Remove fan (see page 9).
3. Remove spark plug wire from spark plug.
4. Remove spark plug from burner head using 13/16” open-end
wrench.
5. Clean and regap spark plug electrodes as follows:
70/100,000 Btu/Hr Models: 1.9 mm
150,000 Btu/Hr Model: 2.8 mm
6. Install spark plug in burner head.
7. Attach spark plug wire to spark plug.
8. Replace fan (see page 9).
9. Replace fan guard and upper shell.
AIR OUTPUT, AIR INTAKE, AND LINT FILTERS
1. Remove upper shell (see page 6).
2. Remove
fi
lter end cover screws using 5/16” nut-driver.
3. Remove
fi
lter end cover.
4. Replace air output and lint
fi
lters.
5. Wash or replace air intake
fi
lter (see
Preventative Maintenance
Schedule
, page 5).
6. Replace
fi
lter end cover.
7. Replace fan guard and upper shell.
IMPORTANT: Do not oil fi lters.
PUMP PRESSURE ADJUSTMENT
1. Remove pressure gauge plug from
fi
lterend cover.
2. Install accessory pressure gauge (part number 4109.427).
3. Start heater (see
Operation
, page 4).Allow motor to reach full
speed.
4.
Adjust pressure. Turn relief valve to right to increase
pressure. Turn relief valve to left to decrease pressure. See
speci
fi
cations below for correct pressure for each model.
5. Remove pressure gauge. Replace pressure gauge plug in
fi
lter end cover.

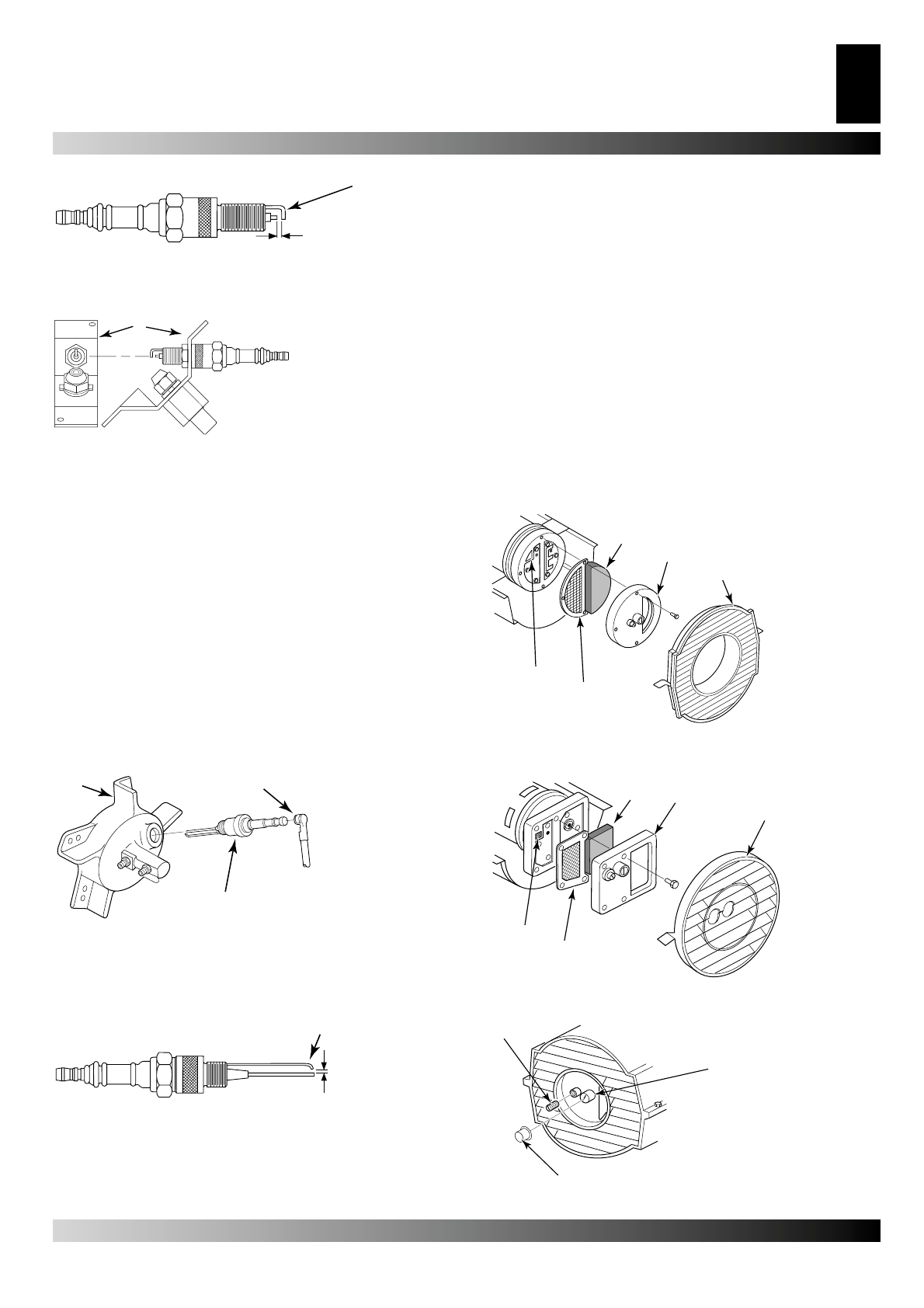

SERVICE PROCEDURES
A .
B .
C .
A
.Burner head
B
.Spark plug wire
C
.Spark plug
Figure 14 – Spark plug removal, 70.000, 100.000, 150.000
Bth/Hr models.
A.
B.
A
.Bend here to adjust gap
B
.Gap
Figure 15 – Spark plug gap, 70.000, 100.000, 150.000 Btu/
Hr models.
A .
Figure 13 – Spark plug rotation, 35.000 Btu/Hr model.
A
. Burner strap.
A.
1,4 mm
Figure 12 – Spark plug gap, 35.000 Btu/Hr model.
A
. Bend
here to
adjust
gap.
A.
B.
C.
D.
E.
Figure 17 – Air output, air intake and lint fi lters, 100.000
and 150.000 Btu/Hr models.
A.
B.
C.
D.
E.
Figure 16 – Air output, air intake and lint fi lters, 35.000 and
70.000 Btu/Hr models.
A
.Air Intake
Filter
B
.Filter end
cover
C
.fan guard
D
.Air output
fi
lter
E
.Lint Filter.
A
.Air Intake
Filter
B
.Filter end
cover
C
.fan guard
D
.Air output
fi
lter
E
.Lint Filter.
A.
B.
C.
A.
Pressure gauge
Plug
B.
relief Valve
C.
Plastic cap
Figure 18 – Pressure Gauge Plug removal.
