26

English

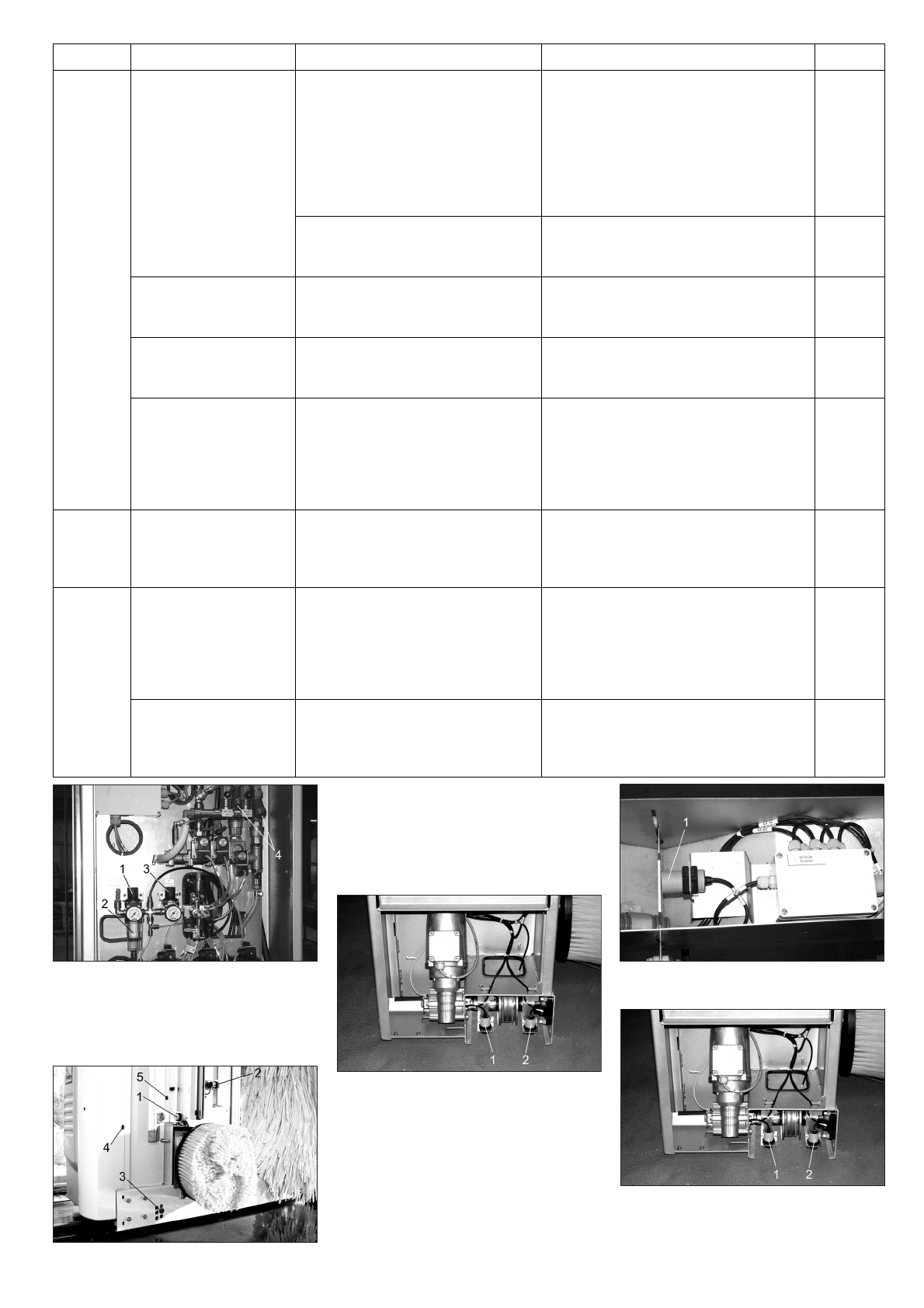

Figure 1
1 Maintenance unit
2 Filter
3 Pressure lessener wheel wash
4 Dirt catcher

Figure 2
1 Lower roof brush limit switch (DBU)
2 Lower drier limit switch (TRU)
3 Light barrier wheel wash facility
4 Light barrier position 1
5 Light barrier position 2

Figure 3
1 Upper roof brush limit switch (DBO)
2 Upper roof drier limit switch (TRO)

Figure 4
1 Limit switch for roof drier safety bracket

Figure 5
1 Limit switch for travel start (PTS)
2 Limit switch for travel end (PFE)

Time

Activity

Assembly affected

Remedy

of whom

monthly or
after 2000
washes

Clean filter

Block compressed air in the com-
pressed air maintenance unit (Diag. 1)

Turn off the compressed air supply and
use the manual operation to move the
wheel wash system in and out until the
pressure has been released. Then check
for zero pressure at the manometer, screw
off filter housing, remove filter cartridge,
clean filter with compressed air, re-insert
cartridge, and screw on housing.

Operator

Detergent suction filter in the deter-
gent containers

Screw off the cover of the detergent con-
tainers and rinse the filters of the suction
hoses with clean water.

Operator

Clean dirt catcher

Dirt catcher Fresh water (option), Dirt
catcher Fresh water (Diag. 1)

Shut off water supply, screw off cover of
the dirt catcher, rinse out filter with water,
re-insert filter and screw on cover.

Operator

Visual check of belt for
roof brush, roof drier

Belt of roof brush, roof drier

Visual inspection: Check status of the
belts, replace, if necessary (Customer
Service).

Custom-
er Serv-
ice

Tighten and and check
distance of all limit
switches

All limit switches (see diagrams 2 to 6) Check of the nominal distances of 4mm:

Use a 4mm thick flat material as feeler
gage, measure distance between limit
switch and switching flag. Readjust limit
switch, if necessary by shifting both plastic
nuts.

Custom-
er Serv-
ice

half-year-
ly or after
5000
washes

Check energy supply
line

Cables and hoses at: - energy column
or - energy chain or - cable tow

Visible inspection: Condition of hoses and
cables, leaks in hoses and connectors.
Check ease of movement of roller truck at
cable tow.

Operator

yearly or
after
10000
washes

Check plastic rollers and
rubber buffers

Running rollers (Diag. 7) and stop-
buffers of the side-brushes’ wagon,
stop-buffers of the side-brushes oscil-
late (Diag. 8)

Visual inspection: check state of the guide
rollers and play between rollers and guide
rails (maximum 5 mm play, binding of the
guide rollers at least 15 mm thick). Check
rubber buffers for cracks, visible inspec-
tion.

Operator

Check running surface

SB traversing operation

Check that running surface for SB travers-
ing operation is clean. Remove contamina-
tions using special cleaners (for e.g.6.869-
035).

Operator
