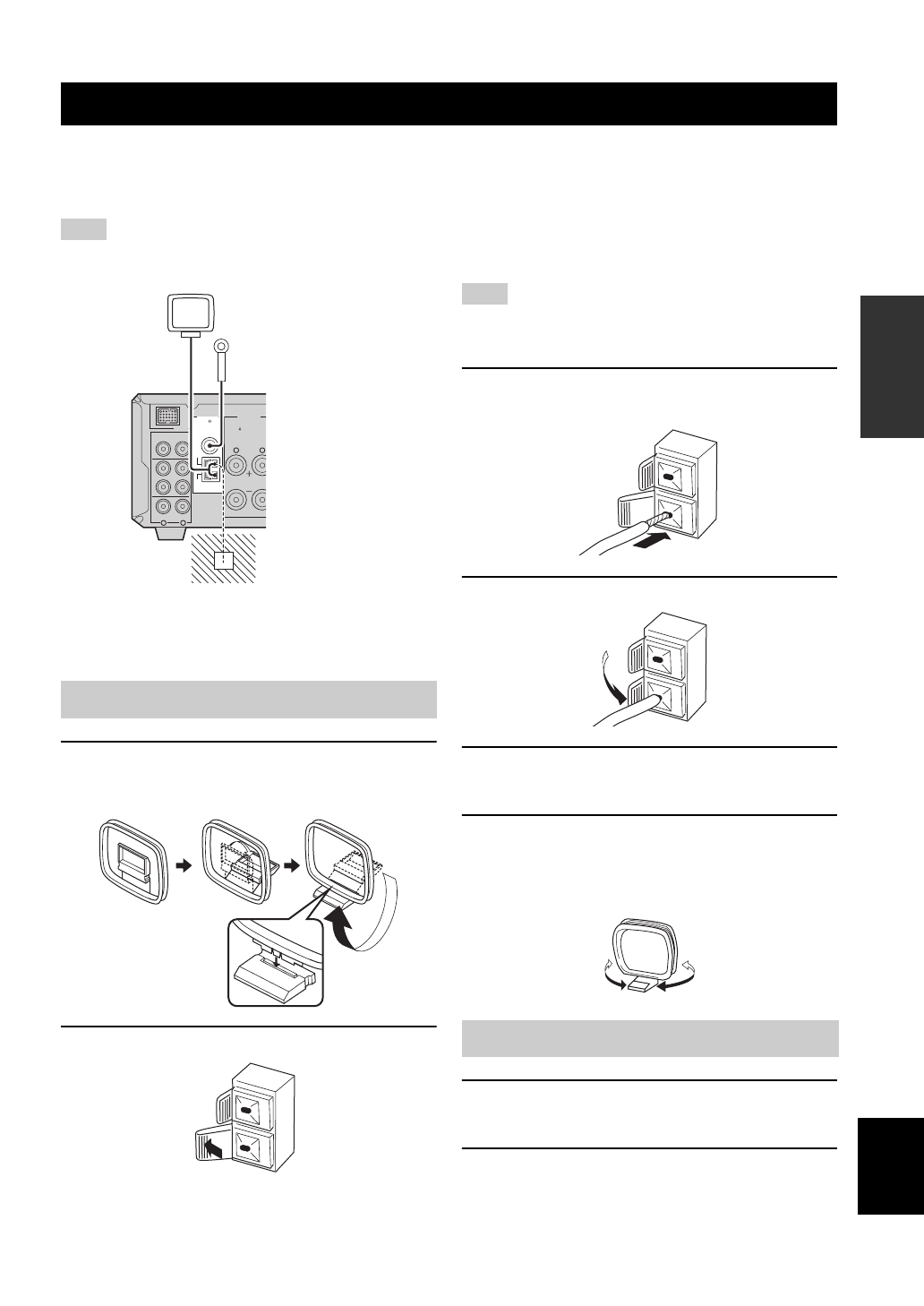

CONNECTING ANTENNAS

15

 En

Eng

lish

PREP

ARA

TION

To enjoy radio on the receiver, connect the supplied AM and FM antennas to the designated terminals. If there is a
problem of weak radio wave reception in your area or you want to improve radio reception, we recommend that you use
optional outdoor antennas. For details, consult the nearest authorized YAMAHA dealer or service center.

Be sure to set the tuner frequency step (Asia and Taiwan models only) according to the frequency spacing in your area (see page 38).

■

About grounding

For maximum safety and minimum interference, connect
the antenna GND terminal to a good earth ground. A good
earth ground is a metal stake driven into moist earth.

1

Attach the antenna stand to the antenna.

When attaching the antenna to the wall, you do not
need to use the antenna stand.

2

Press down the tab of the AM terminal.

Depending on the product, the shape of the tab is different from
the described illust.

3

Insert the AM loop antenna lead wires into
the AM terminal.

4

Replace the tab back to secure the wire.

5

Repeat steps 2 to 4 to insert the AM loop
antenna lead wires into the GND terminal.

6

Place the antenna away from the receiver and
speaker cables.

While listening to the radio, rotate the antenna head
to find the best angle for reception.

1

Connect the supplied indoor FM antenna to
the FM jack of the receiver.

2

Place the antenna away from the receiver and
speaker cables.

Connecting Antennas

Note

Connecting the AM loop antenna

L

R

L

R

SPEAKERS

DOCK

DVD/CD

TAPE/MD

AUX

OUT

IN

FM

GND

AM

ANTENNA

75

UNBAL.

6   MIN / SPEAKER

Indoor FM

antenna

(supplied)

AM loop

antenna

(supplied)

Ground

(GND terminal)

Note

Connecting the FM antenna
