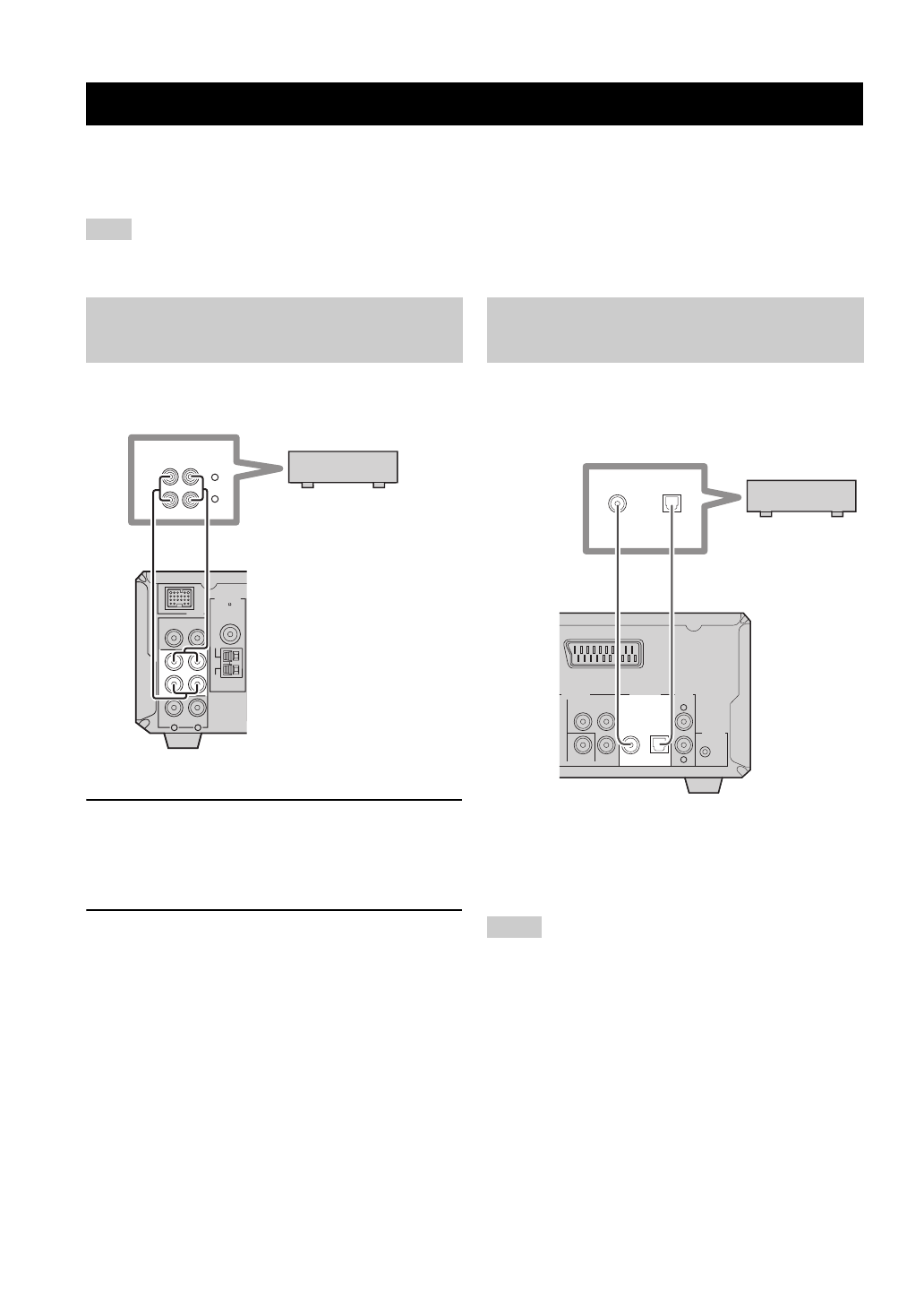

CONNECTING EXTERNAL COMPONENTS

16

 En

You can connect various audio components, such as an MD player, a tape deck or a YAMAHA iPod universal dock to the
receiver. Also you can connect an MD recorder or a CD recorder to the DVD player using the DIGITAL OUT jacks. For
information on your external component, refer to the owner’s manual supplied with each component.

Do not connect the power cable of the receiver, DVD player, or other components to the wall outlet until all cable connections are
completed.

If you connect an MD player or a tape deck to the receiver,
you can enjoy audio sources played on the component.

1

Connect the TAPE/MD IN (L/R) jacks of the
receiver to the analog output jacks of an MD
player or a tape deck using a commercially
available audio pin cable.

2

To record audio output from the receiver,
connect the TAPE/MD OUT (L/R) jacks of the
receiver to the analog input jacks of an MD
player or a tape deck using a commercially
available audio pin cable.

If you connect an MD recorder or a CD recorder to the
DVD player with a digital connection, you can make a
digital recording.

Connect the DIGITAL OUT (COAXIAL or
OPTICAL) jack of the DVD player to the digital
input (coaxial or optical) jack of an MD recorder
or a CD recorder using a commercially available
coaxial or optical cable.

• The DIGITAL OUT jacks are compatible with PCM, Dolby

Digital and DTS signals.

• The DIGITAL OUT (OPTICAL) jack is designed based on EIA

standards. To make a digital connection, use an optical cable
that meets EIA standards.

Connecting External Components

Note

Connecting an MD player or a tape

deck

L

R

DOCK

DVD/CD

TAPE/MD

AUX

OUT

IN

FM

GND

AM

ANTENNA

75

UNBAL.

L

R

ANALOG

OUT

IN

MD player or

tape deck

Audio pin cable

Receiver

Connecting an MD recorder or a CD

recorder

Notes

L

R

AV

AUDIO

OUT

DIGITAL OUT

COAXIAL

COMPONENT

VIDEO

P

B

P

R

Y

OPTICAL

VIDEO OUT

TO RX-E810

COAXIAL

OPTICAL

MD recorder or

CD recorder

DVD player

Optical cable

or

Coaxial cable
