CONNECTING THE SYSTEM

12

 En

Make sure you read the following procedure and notes carefully before connecting the system. For information on the
speakers (NX-E800), refer to the owner’s manual supplied with it.

Do not connect the power cable of the receiver, DVD player, or other components to the wall outlet until all cable connections are
completed.

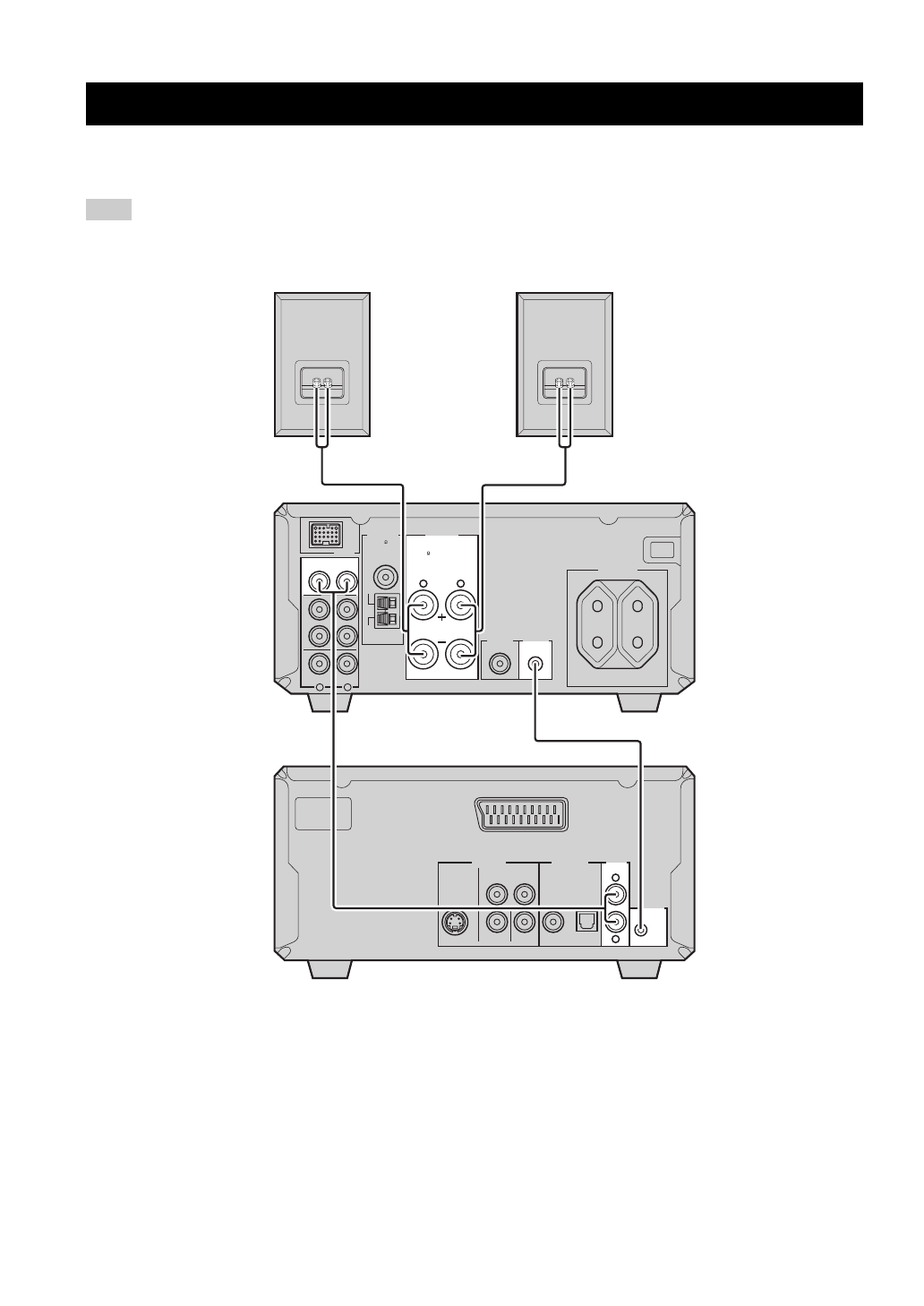

1

 Connect the DVD/CD (L/R) jacks of the receiver to the AUDIO OUT (L/R) jacks of the DVD player using the

supplied audio pin cable.

2

 Connect the system connector (TO DVD-E810) jack of the receiver to the system connector (TO RX-E810) jack of

the DVD player using the supplied system control cable.

3

 Connect the speaker terminals (L) of the receiver to the speaker terminals of the left speaker and the speaker terminals

(R) of the receiver to the speaker terminals of the right speaker using the speaker cables supplied with the speaker set
(NX-E800). See page 13 for details.

y

• The system control connection is used to synchronize the specific operations between the receiver and the DVD player.
• If you want to connect an amplifier with a digital input instead of the RX-E810, use the DIGITAL OUT (COAXIAL or OPTICAL)

jacks of the DVD player and configure the “DIGITAL OUTPUT” setting in the setup menu (see page 52).

Connecting the System

Note

L

R

AV

AUDIO

OUT

DIGITAL OUT

COAXIAL

COMPONENT

S VIDEO

VIDEO

P

B

P

R

Y

OPTICAL

VIDEO OUT

MAINS

TO RX-E810

L

R

L

R

MAINS

SPEAKERS

DOCK

DVD/CD

TAPE/MD

AUX

OUT

IN

FM

GND

AM

ANTENNA

75

UNBAL.

TO DVD-E810

SUBWOOFER

OUT

100W MAX. TOTAL

AC OUTLETS

SWITCHED

6   MIN / SPEAKER

1

3

3

2

Receiver (RX-E810)

(Europe model)

DVD player (DVD-E810)

Left speaker

(NX-E800)

Right speaker

(NX-E800)
