Controller for units

FWECSA

USER UNIT

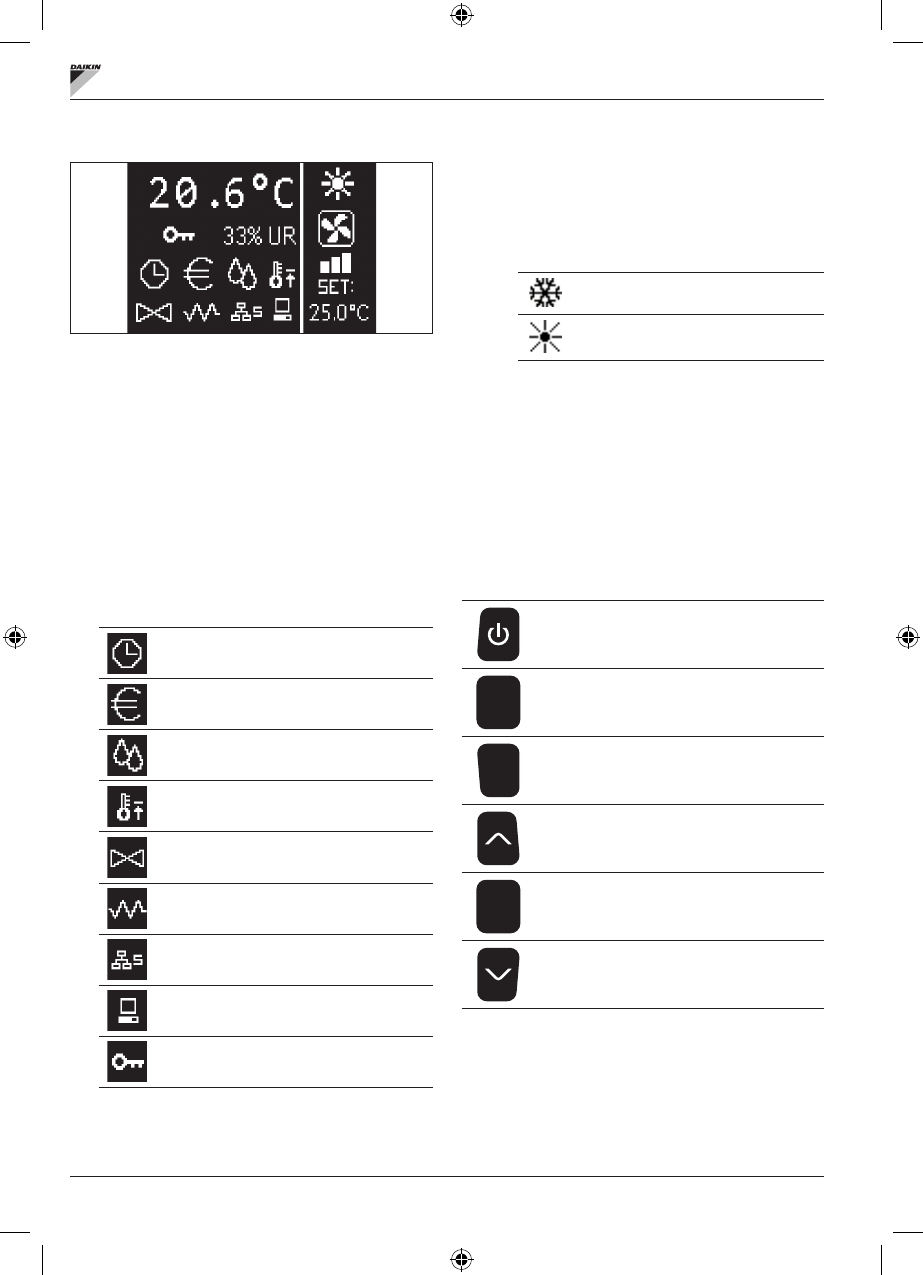

The main screen is divided into two par ts (which are
referred to below as lt side and r t side) by a ver tical line that
separates them.
the following information is contained on

the lt side

 (from

top to bottom and lt to r t):

•

room temperature (read by the remote probe on-board
the user unit, or by the probe connected to the I/O board
terminal board, according to the configuration)

•

ambient humidity (if there is a humidity probe installed
and configured)

•

status symbols:

time slots on

economy function on

dehumidification running

minimum room temperature function
enabled

valve/s open

electric heater enabled/on

SMALL network on RS485 on

serial communication
with supervision system

locked keyboard

•

alarm signal: symbol and identification of the type of
alarm overwrite the area normally dedicated to status
symbols.

The following information is contained in the

rt side

 (from

top to bottom)

•

identification of the operating mode

COOLING

 mode

HEATING

 mode

•

identification of the ventilation status

•

identification of the room air temperature SET value

If the unit is OFF the side will be completely covered by the
word OFF written ver tically across it.

KEYBOARD

There are 6 keys on the display screen; below are the basic
functions associated with each key.

ON/OFF KEY

•

switch the unit on/off

•

go back to main screen

Prg

PRG KEY

•

access to the MENU

Mode

MODE KEY

•

change operating mode (HEATING/
COOLING)

UP ARROW KEY

•

change ventilation values/speed

•

scroll through screens

Set

SET KEY

•

change SET/VENTILATION mode

•

confirm value/return in screen scroll mode

DOWN ARROW KEY

•

change ventilation values/speed

•

scroll through screens
