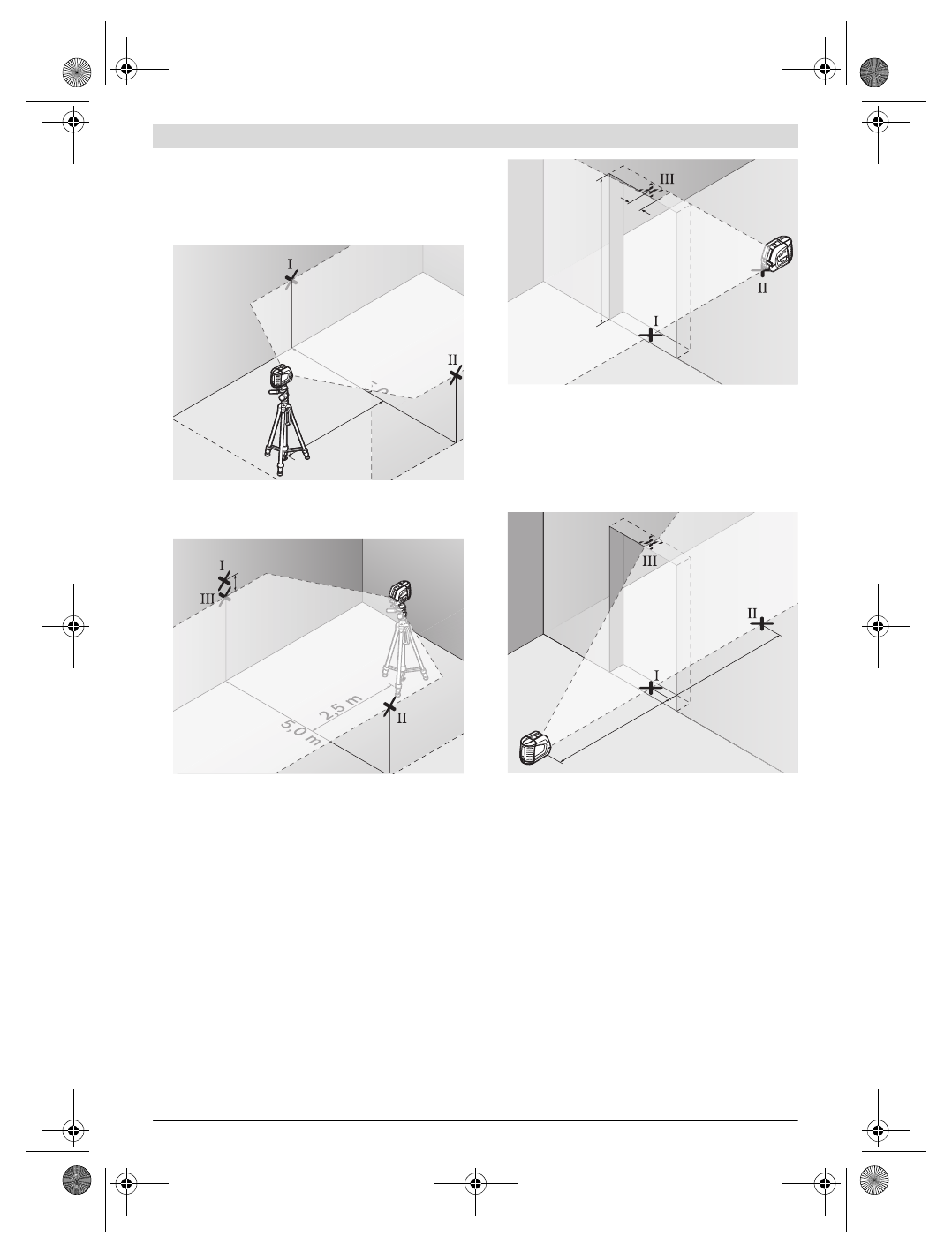

Checking the Levelling Accuracy of the Horizontal Line

For the check, a free surface of approx. 5 x 5 metres is required.

– Set up the measuring tool on a firm, level surface between

both walls A and B. Allow the measuring tool to level in
while in horizontal operation.

– At a distance of 2.5 metres from the measuring tool, mark

the centre of the laser line (point

I

 on wall A and point

II

 on

wall B) on both walls.

– Set up the measuring tool 5 metres away turned by 180 °

and allow it to level in.

– Align the height of the measuring tool (using a tripod or by

underlaying, if required) in such a manner that the centre
of the laser line is projected exactly against the previously
marked point

II

 on wall B.

– Mark the centre of the laser line as point

III

 (vertically

above or below point

I

) on the wall A.

– The difference

d

 of both marked points

I

 and

III

 on wall A

indicates the actual deviation of the measuring tool from
the level plane.

The maximum permitted deviation d

max

 is calculated as fol-

lows:
d

max

= double distance of the walls x 0.3 mm/m

Example: With a 5 metre distance between the walls, the max-
imum deviation must not exceed
d

max

= 2 x 5 m x 0.3 mm/m = 3 mm.  Thus,  the  marks  must  not

be more than 3 mm apart.

Checking the Levelling Accuracy of the Vertical Line

For this check, a door opening is required with at least 2.5 m
of space (on a firm surface) to each side of the door.

– Position the measuring tool on a firm, level surface (not on

a tripod) 2.5 m away from the door opening. Allow the
measuring tool to level in while in cross-line operation
mode, and direct the laser beams at the door opening.

– Mark the centre of the vertical laser line at the floor of the

door opening (point

I

), at a distance of 5 m beyond the

other side of the door opening (point

II

) and at the upper

edge of the door opening (point

III

).

– Position the measuring tool on the other side of the door

opening directly behind point

II

. Allow the measuring tool

to level in and align the vertical laser line in such a manner
that its centre runs exactly through points

I

 and

II

.

– The  difference

d

 between point

III

 and the centre of the la-

ser line at the upper edge of the door opening results in the
actual deviation of the measuring tool from the vertical
plane.

– Measure the height of the door opening.

The maximum permitted deviation d

max

 is calculated as fol-

lows:
d

max

= double height of the door opening  x 0.3 mm/m

Example: With a door opening height of 2 metres, the maxi-
mum permitted deviation is
d

max

= 2 x 2 m x 0.3 mm/m = 1.2 mm. Thus, the marks must

not be more than 1.2 mm apart.

2,5 m

,0 m

5,

5

A

B

d

2,5 m

A

B

2,5 m

2,5 m

2 m

d
