 English |

29

Bosch Power Tools

1 609 92A 15R | (26.1.15)

Product Description and Specifica-
tions

Read all safety warnings and all instruc-
tions.

Failure to follow the warnings and in-

structions may result in electric shock, fire
and/or serious injury.

Intended Use

The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts in hard and soft-
wood, as well as in particle and fibre board. In this, mitre an-
gles  from – 60 ° to +60 ° as well as bevel angles from –2 ° to
47 ° are possible.

When using appropriate saw blades, sawing aluminium pro-
files and plastic is also possible.

Product Features

The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.

1

Scale for clearance of the saw blade to the
parallel guide

10

2

Guide groove for parallel guide

10

3

Angle stop

4

Recessed handles

5

Guide groove for angle stop

6.1

Blade guard with clamping lever *

6.2

Blade guard with clamping screw and side protector *

7

Vacuum connection on the blade guard

8.1

Clamping lever for locking blade guard

6.1

8.2

Clamping screw for locking blade guard

6.2

9

Saw table

10

Parallel guide

11

V-guide groove on saw table for parallel guide

12

Mounting holes

13

Carrying handle

14

Saw-table extension

15

Tensioning lever for saw-table extension

16

Fastening bracket for saw stand GTA 600

17

Locking lever for adjustment of bevel angles

18

Handwheel

19

Crank for lowering and raising the saw blade

20

Safety flap of On/Off switch

21

Hex key (5 mm)

22

Ring spanner (23 mm)

23

Push stick

24

Insert plate

25

Riving knife

26

Saw blade

27

Lens

28

Profile rail

29

Cable holder

Wear ear protectors.

Exposure to noise

can cause hearing loss.

Wear safety goggles.

Observe the dimensions of the saw blade. The hole diameter
must match the tool spindle without play. Do not use reduc-
ers or adapters.

When changing the saw blade, pay attention that the kerf
width is not less than 2.3 mm and the blade body thickness
not greater than 2.3 mm. Otherwise, there is danger that the
riving knife (2.3 mm) becomes wedged in the workpiece.

The maximal possible workpiece height is 79 mm.

Left side

Indicates the rotation direction of the
handwheel for lowering (

transport

position

) and raising (

working posi-

tion

) the saw blade.

Right side

Indicates the position of the locking le-
ver for locking the saw blade and for
adjusting the bevel angle (saw blade
tiltable).

If required, lubricate the
power tool at the indicat-
ed locations.

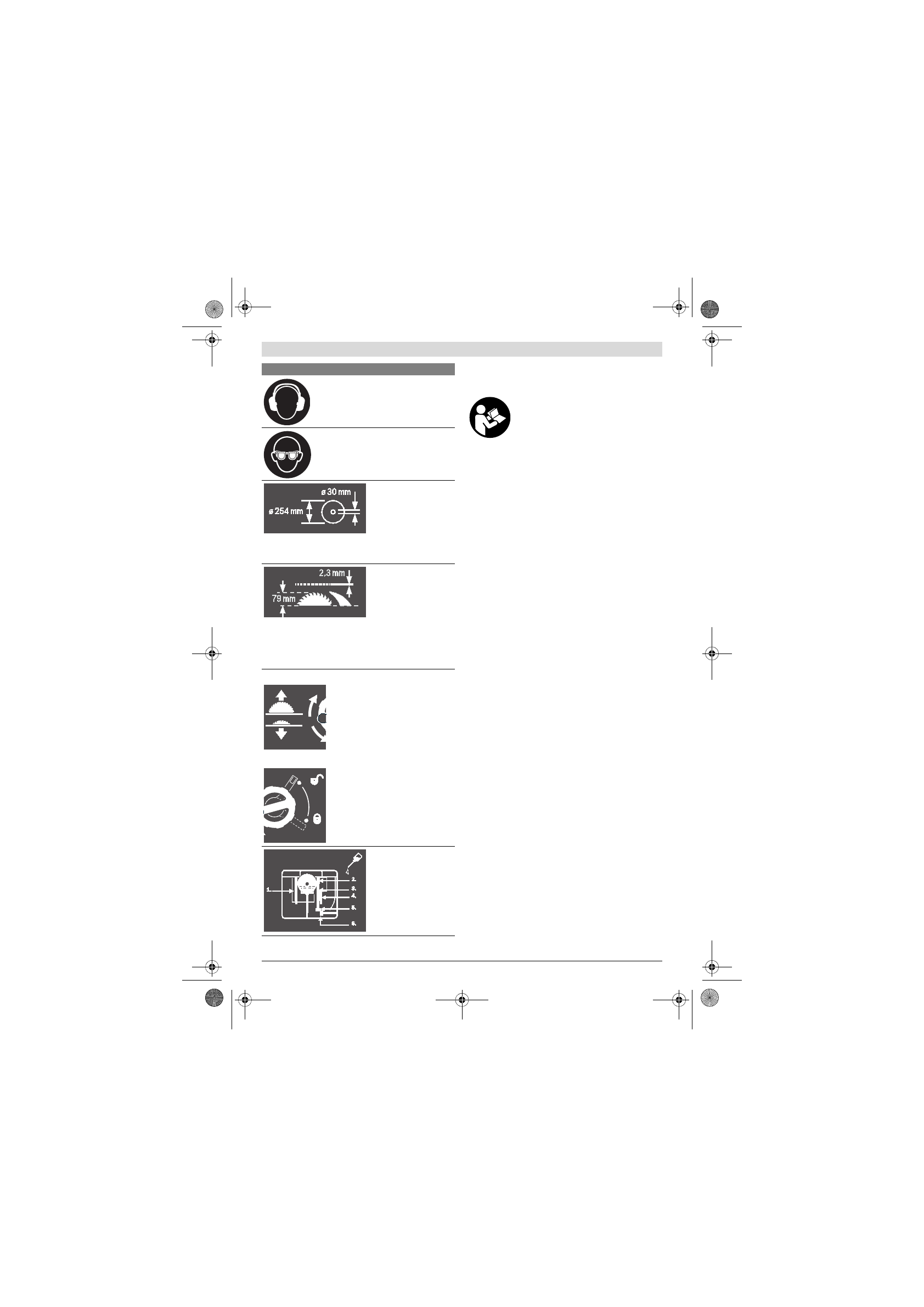

Symbols and their meaning
