Connecting your equipment

03

34

En

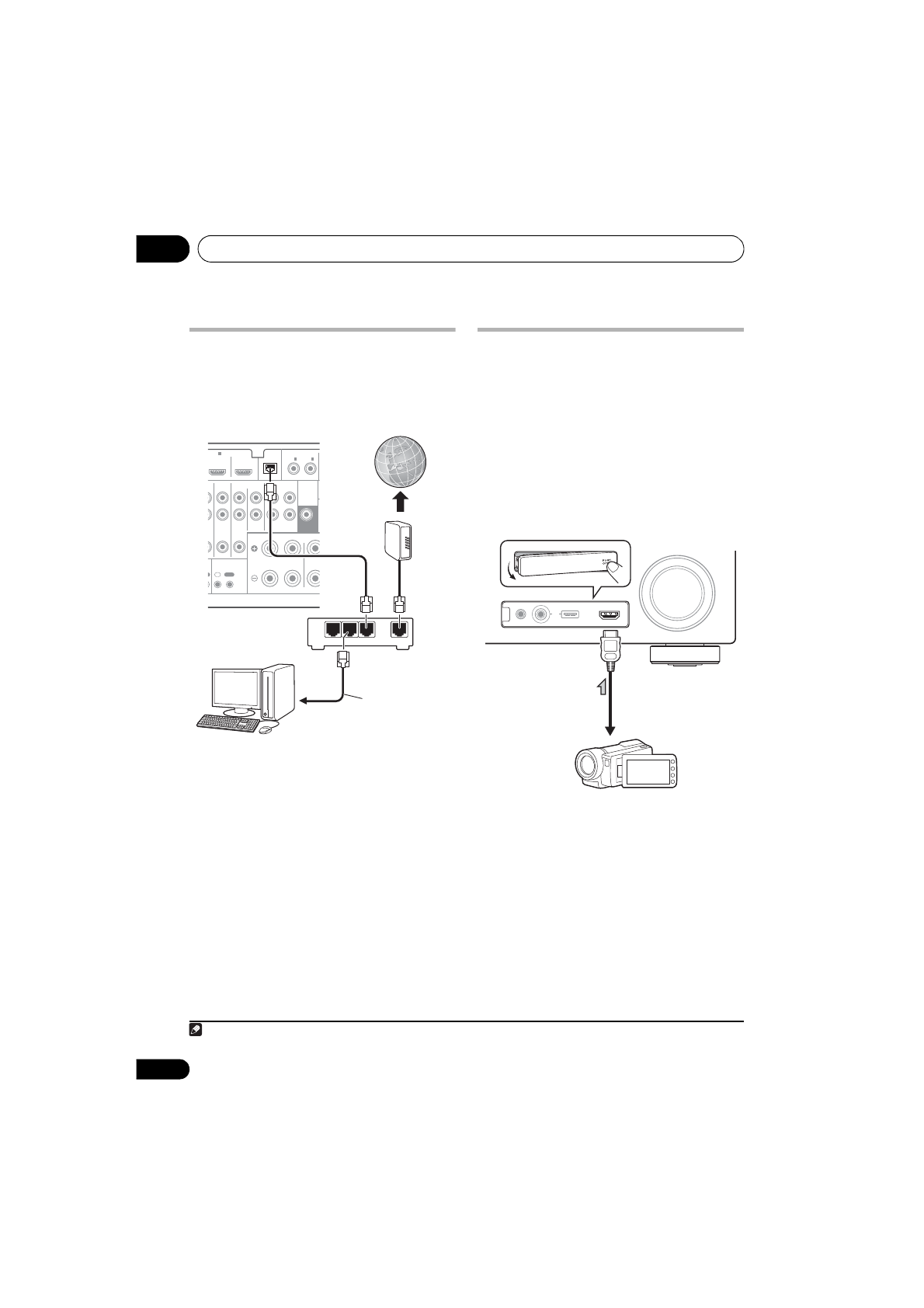

Connecting to the network
through LAN interface

By connecting this receiver to the network via

the LAN terminal, you can listen to Internet

radio stations.

1

Connect the LAN terminal on this receiver to

the LAN terminal on your router (with or
without the built-in DHCP server function) with
a straight LAN cable (CAT 5 or higher).
Turn on the DHCP server function of your

router. In case your router does not have the

built-in DHCP server function, it is necessary to

set up the network manually. For details, see

Network Setup menu

 on page 104.

LAN terminal specifications

LAN terminal . . . . . . . . . . . . . . . . . . Ethernet jack

10BASE-T/100BASE-TX

Connecting an HDMI-equipped
component to the front panel
input

(VSX-1020/VSX-1025 only)

There is an HDMI input terminal on the front

panel. High quality pictures can be viewed via
the receiver simply by connecting an HDMI-
equipped video camera with a single HDMI

cable. HDMI-equipped components other than

video cameras can also be connected to this
terminal.

Note

1 To listen to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.

ASSIGNABLE

(DVD)

R

FRONT

CENTE

L

D

CD-R/TAPE

OUT

IN

CD

IN

TV/SAT

IN

VIDEO

IN

(CD)

SUBWOOFER

PRE OUT

CONTROL

LAN

COAXIAL

IN

OUT

(10/100)

IN

1

IN

2

4

I

T

IN

OUT

WAN

3

2

1

LAN

LAN cable

(sold separately)

to LAN port

Router

Modem

Internet

PC

VSX-1020/VSX-1025

CONTROL

ON / OFF

MASTER
VOLUME

MCACC

SETUP MIC

VIDEO CAMERA

iPod

iPhone

USB

HDMI 5

Video camera, etc.
