Connecting your equipment
03
32
En
MULTI-ZONE setup
This receiver can power up to two independent
systems in separate rooms after you have
made the proper MULTI-ZONE connections.
Different sources can be playing in two zones
at the same time or, depending on your needs,
the same source can also be used. The main
and sub zone have independent power (the
main zone power can be off while sub zone is
on) and the sub zone can be controlled by the
remote or front panel controls.
Making MULTI-ZONE connections
It is possible to make these connections if you
have a separate speakers and TV monitor
1
for
the sub zone (
ZONE 2
). You will also need a
separate amplifier if you are not using the
MULTI-ZONE setup using speaker terminals
(ZONE 2)
on page 33 for the sub zone.
MULTI-ZONE listening options
The following table shows the signals that can
be output to ZONE 2:

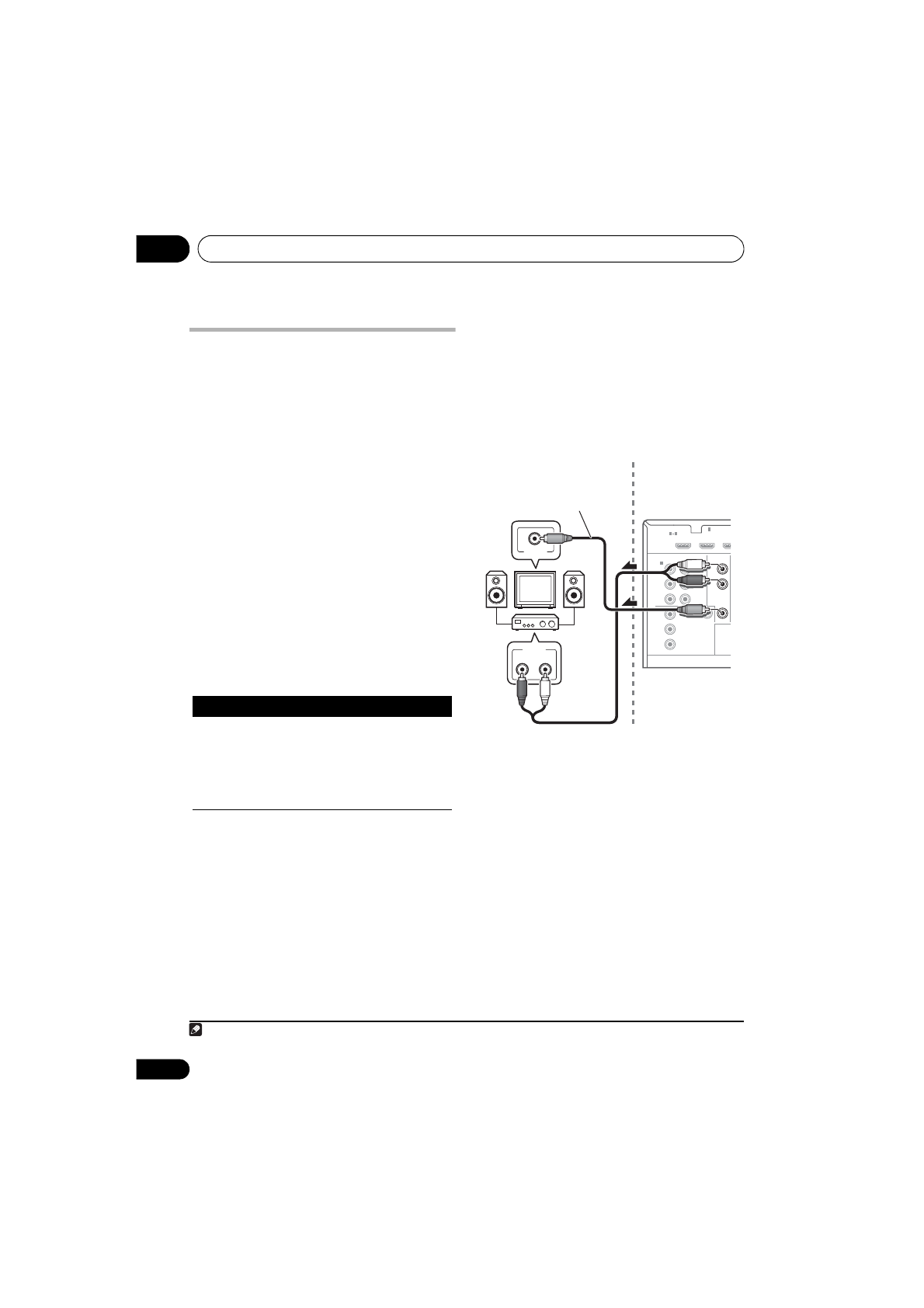

Basic MULTI-ZONE setup (ZONE 2)
1
Connect a separate amplifier to the
AUDIO ZONE 2 OUT jacks and a TV monitor
1
to the VIDEO ZONE 2 OUT jack, both on this
receiver.
2
Connect a pair of speakers to the sub
zone amplifier.
Note
1 VSX-920 model cannot connect the TV monitor for sub zone.
Sub Zone Input functions available
ZONE 2
DVD, TV/SAT, DVR/BDR, VIDEO
a
,
VIDEO1/2
b
, INTERNET RADIO
a
, iPod/
USB
a
, CD, CD-R/TAPE, TUNER,
ADAPTER PORT
(Outputs analog audio and composite
video.)
a.VSX-1020/VSX-1025 only.
b.VSX-920 only.
R
L
AUDIO IN
VIDEO IN
HDMI
ASSIGNABLE
P
B
P
R
ASSIGNABLE
(DVD)
Y
P
B
P
R
Y
P
B
P
R
Y
L
R
ZONE 2
OUT
(DVR)
COMPONENT VIDEO
AUDIO
VIDEO
MONITOR
OUT
BD IN
IN
IN
1
IN
1
IN
2
1 4
Main zone
Sub zone
VSX-1020/VSX-1025
VSX-1020/VSX-1025 only
