Connecting your equipment

03

17

En

English

Français

Deutsch

Nederlands

Italiano

Español

Determining the speakers’
application

This unit permits you to build various surround
systems, in accordance with the number of

speakers you have.

• Be sure to connect speakers to the front

left and right channels (

L

 and

R

).

• It is also possible to only connect one of the

surround back speakers (

SB

) or neither.

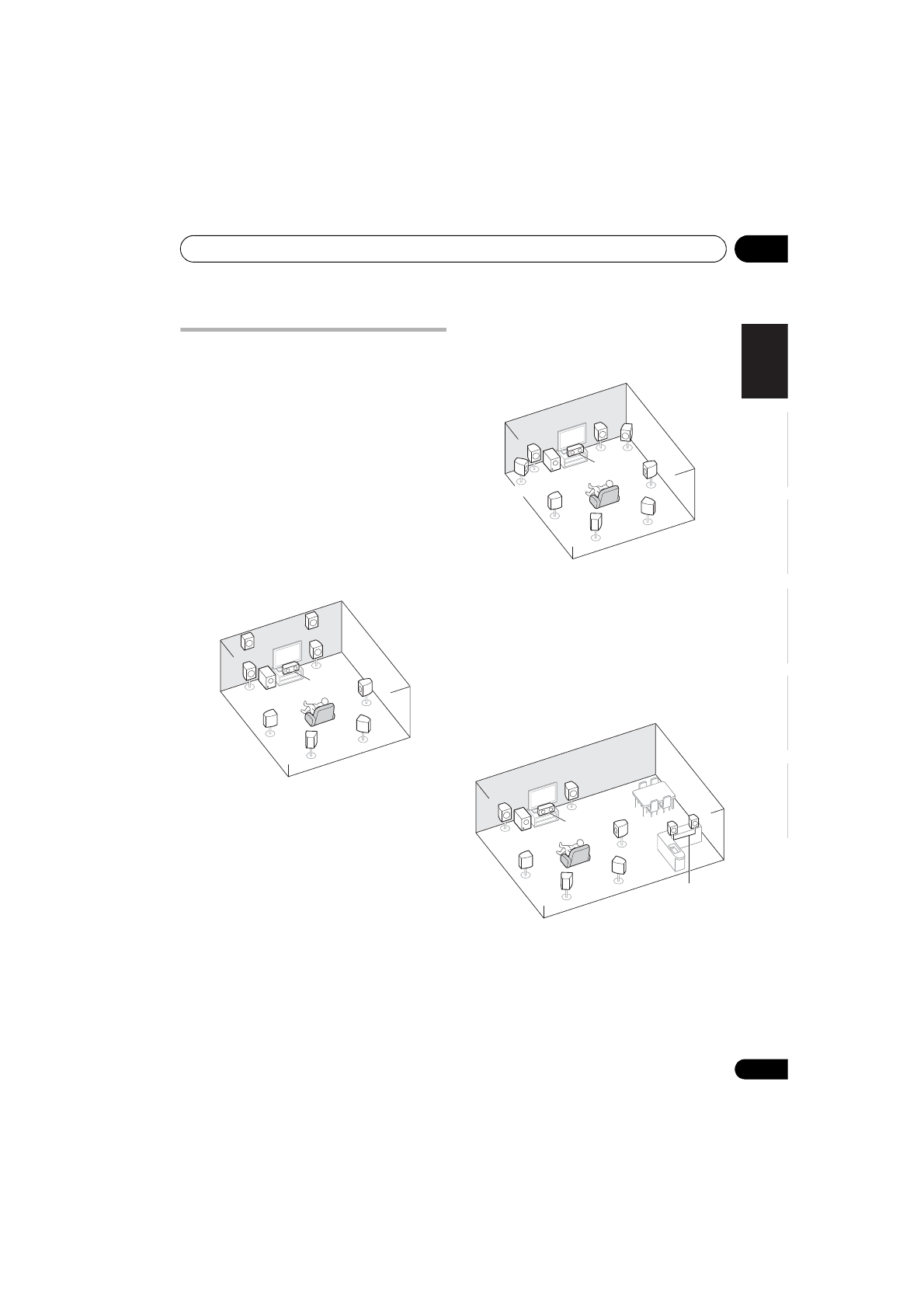

Choose one from Plans [A] to [E] below.

[A] 9.1 channel surround system (Front
height)

*Default setting

•

Speaker System setting: Normal(SB/FH)

A 9.1 ch surround system connects the left and
right front speakers (

L

/

R

), the center speaker

(

C

), the left and right front height speakers

(

FHL

/

FHR

), the left and right surround

speakers (

SL

/

SR

), the left and right surround

back speakers (

SBL

/

SBR

), and the subwoofer

(

SW

).

This surround system produces a more true-to-
life sound from above.

[B] 9.1 channel surround system (Front
wide)

•

Speaker System setting: Normal(SB/FW)

This plan replaces the left and right front
height speakers shown in [A] with the left and
right front wide speakers (

FWL

/

FWR

).

This surround system produces a true-to-life

sound over a wider area.

[C] 7.1 channel surround system &
Speaker B connection

•

Speaker System setting: Speaker B

With these connections you can

simultaneously enjoy 5.1-channel surround

sound in the main zone with stereo playback of

the same sound on the B speakers. The same

connections also allow for 7.1-channel
surround sound in the main zone when not
using the B speakers.

S L

L

F HL

S W

C

R

F HR

S R

S BL

S BR

FWR

FWL

SL

L

SW

C

R

SR

SBL

SBR

SL

L

SW

C

R

SR

SBL

SBR

L

R

Speaker B
