Connecting your equipment

03

31

En

English

Français

Deutsch

Nederlands

Italiano

Español

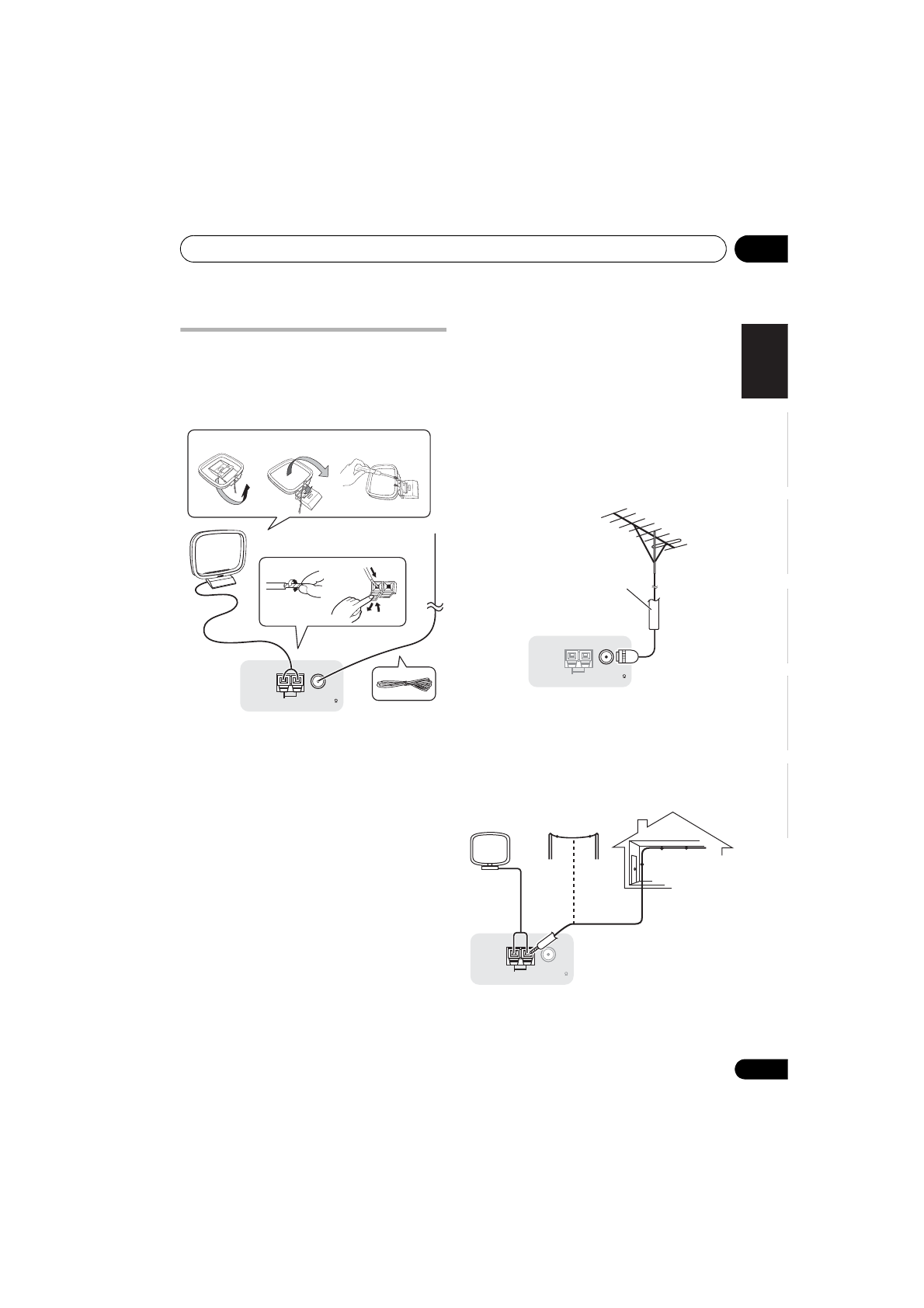

Connecting AM/FM antennas

Connect the AM loop antenna and the FM wire

antenna as shown below. To improve reception

and sound quality, connect external antennas

(see

Connecting external antennas

 below).

1

Pull off the protective shields of both AM

antenna wires.

2

Push open the tabs, then insert one wire

fully into each terminal, then release the tabs
to secure the AM antenna wires.

3

Fix the AM loop antenna to the attached

stand.

To fix the stand to the antenna, bend in the

direction indicated by the arrow (

fig. a

) then

clip the loop onto the stand (

fig. b

).

• If you plan to mount the AM antenna to a

wall or other surface, secure the stand with

screws (

fig. c

) before clipping the loop to

the stand. Make sure the reception is clear.

4

Place the AM antenna on a flat surface

and in a direction giving the best reception.

5

Connect the FM wire antenna into the FM

antenna socket.

For best results, extend the FM antenna fully
and fix to a wall or door frame. Don’t drape
loosely or leave coiled up.

Connecting external antennas

To improve FM reception connect an external

FM antenna to

FM UNBAL 75

Ω

.

To improve AM reception, connect a 5 m to 6 m
length of vinyl-coated wire to the

AM LOOP

terminals without disconnecting the supplied

AM loop antenna.
For the best possible reception, suspend
horizontally outdoors.

AM LOOP

FM UNBAL 75

ANTENNA

3

4

5

fig. a

fig. b

fig. c

1

2

AM LOOP

FM UNBAL 75

ANTENNA

75

Ω

 coaxial cable

AM LOOP

FM UNBAL 75

ANTENNA

Outdoor

antenna

5 m to 6 m

Indoor antenna

(vinyl-coated wire)
