Connecting your equipment
03
24
En

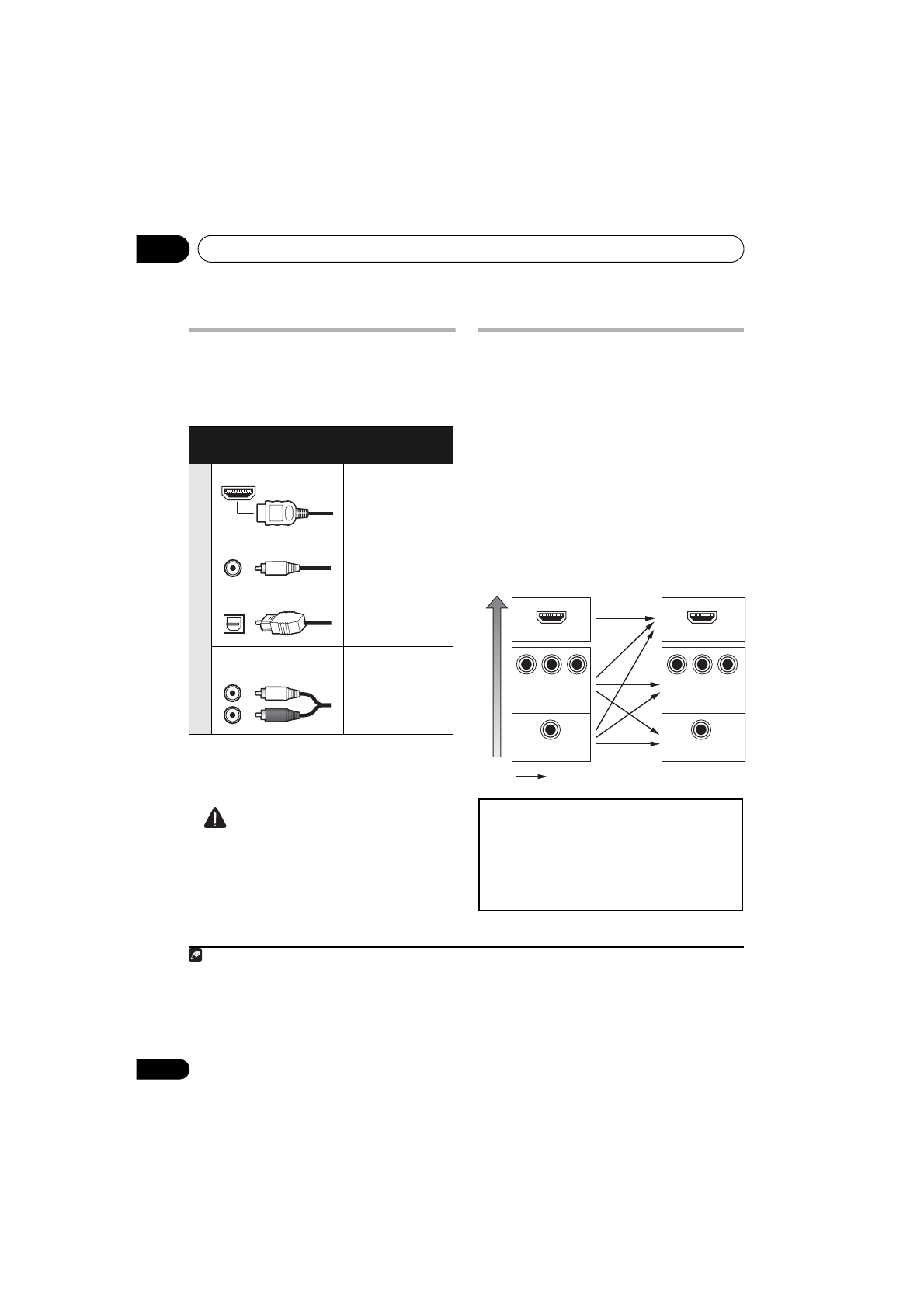

About the audio connection
There are several types of audio input and output
terminals on this receiver. The receiver selects
the first available signal in the following order
when you choose
AUTO
as the input signal:
• With an HDMI cable, video and audio
signals can be transferred in high quality
over a single cable.
CAUTION
• When connecting optical cables, be careful
when inserting the plug not to damage the
shutter protecting the optical socket.
• When storing optical cable, coil loosely.
The cable may be damaged if bent around
sharp corners.
About the video converter
The video converter ensures that all video
sources are output through all of the
MONITOR OUT
jacks. The only exception is
HDMI: since this resolution cannot be
downsampled, you must connect your
monitor/TV to the receiver’s HDMI video
outputs when connecting this video source.
1
If several video components are assigned to
the same input function (see
The Input Setup
menu
on page 42), the converter gives priority
to HDMI, component, then composite (in that
order).
Types of cables and
terminals
Transferable
audio signals
Sound signal priori
ty
HDMI
HD audio
Digital (Coaxial)
Conventional
digital audio
Digital (Optical)
RCA (Analog)
(White/Red)
Conventional
analog audio
Note
1 • If the video signal does not appear on your TV, try adjusting the resolution settings on your component or display.
Note that some components (such as video game units) have resolutions that may not be converted. In this case, try
switching Digital Video Conversion (in
Setting the Video options
on page 71)
OFF
.
• The signal input resolutions that can be converted from the component video input for the HDMI output are 480i/
576i, 480p/576p, 720p and 1080i. 1080p signal cannot be converted.
• Only signals with an input resolution of 480i/576i can be converted from the component video input for the
composite
MONITOR OUT
terminals.
HDMI IN
VIDEO IN
VIDEO
MONITOR OUT
COMPONENT
VIDEO IN
HDMI OUT
COMPONENT VIDEO
MONITOR OUT
Y
P
B
P
R
Y
P
B
P
R
High
pic
ture quality
Terminal for
connection with
source device
Terminal for
connection with TV
monitor
Video signals can be output
This product incorporates copyright protection
technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright
protection technology must be authorized by Rovi
Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Rovi
Corporation. Reverse engineering or disassembly is
prohibited.
