Connecting your equipment
03
22
En

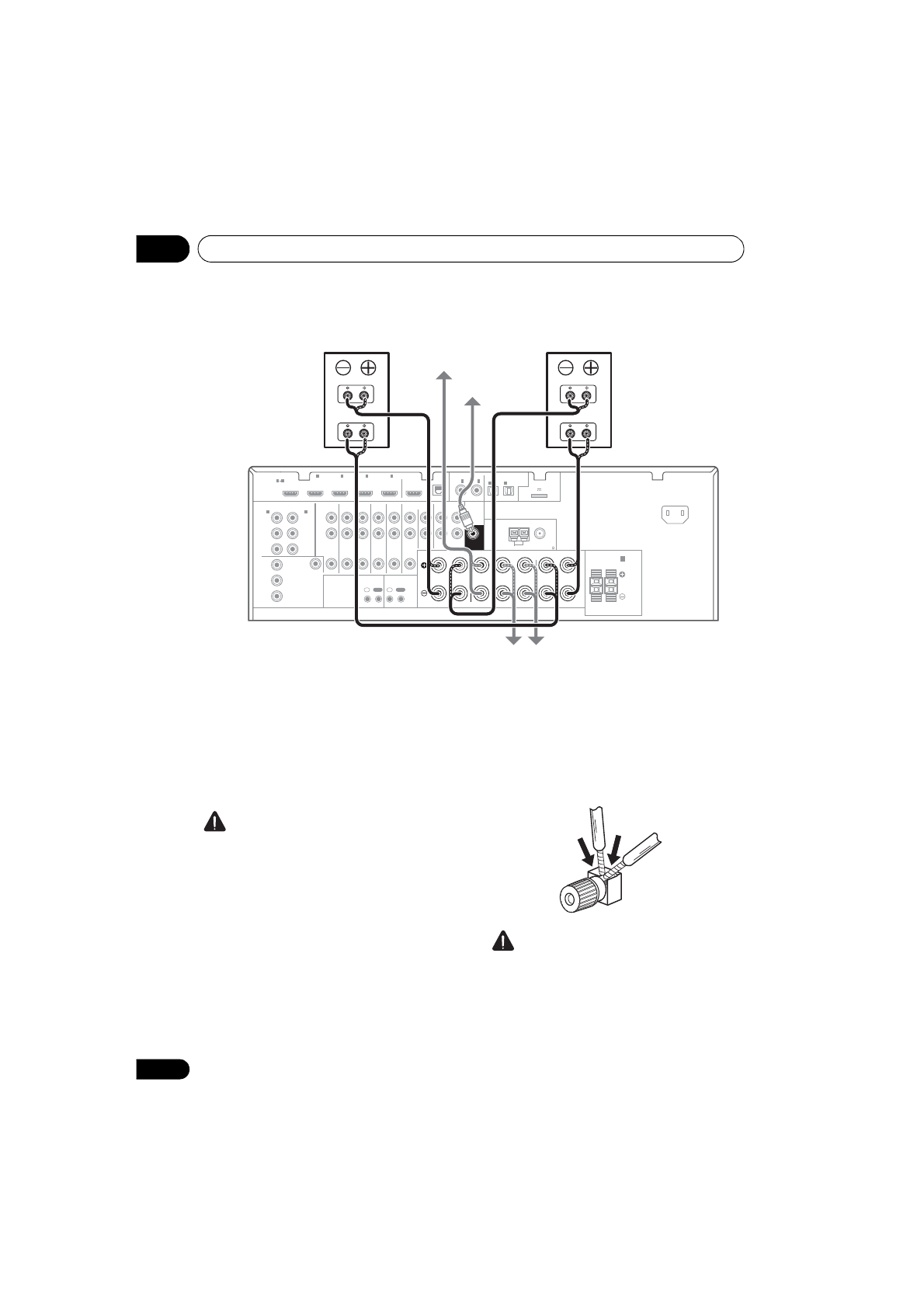

Bi-amping your speakers
Bi-amping is when you connect the high
frequency driver and low frequency driver of
your speakers to different amplifiers for better
crossover performance. Your speakers must be
bi-ampable to do this (having separate
terminals for high and low) and the sound
improvement will depend on the kind of
speakers you’re using.
CAUTION
• Most speakers with both
High
and
Low
terminals have two metal plates that
connect the
High
to the
Low
terminals.
These must be removed when you are bi-
amping the speakers or you could severely
damage the amplifier. See your speaker
manual for more information.
• If your speakers have a removable
crossover network, make sure you do not
remove it for bi-amping. Doing so may
damage your speakers.
Bi-wiring your speakers
Your speakers can also be bi-wired if they
support bi-amping.
• With these connections, the
Speaker
System
setting makes no difference.
•
To bi-wire a speaker, connect two speaker
cords to the speaker terminal on the receiver.
CAUTION
• Don’t connect different speakers from the
same terminal in this way.
• When bi-wiring as well, heed the cautions
for bi-amping shown at the left.
HDMI
ASSIGNABLE
P
B
P
R
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
(DVD)
(DVR/BDR)
(DVD)
Y
P
B
P
R
Y
P
B
P
R
Y
L
R
R
FRONT
CENTER
SURROUND
SURROUND BACK
FRONT HEIGHT/WIDE/
L
R
L R
L
R
L
ZONE 2
OUT
DVR/BDR
DVD
OUT
IN
CD-R/TAPE
OUT
IN
IN
CD
IN
TV/SAT
IN
VIDEO
IN
(DVR/BDR)
(OUTPUT 5 V 100 mA MAX)
(CD)
(Single)
SUBWOOFER
(TV/SAT)
AM LOOP
FM UNBAL 75
COMPONENT VIDEO
AUDIO
PRE OUT
ANTENNA
OPTICAL
ADAPTER PORT
VIDEO
IR
CONTROL
SPEAKERS
SPEAKERS
MONITOR
OUT
LAN
COAXIAL
BD IN
IN
IN
IN
IN
OUT
(10/100)
IN
IN
1
IN
2
1
IN
1
IN
2
1 4
2
3
4
IN
1
A
IN
2
B
IN
OUT
IN
OUT
High
Low
High
Low
AC IN
Front left
Subwoofer
Center
Surround right
Front right
Surround left
Bi-amp compatible
speaker
Bi-amp compatible
speaker
VSX-1020/VSX-1025
