Product Description and Specifica-
tions

Read all safety warnings and all instruc-
tions.

Failure to follow the warnings and in-

structions may result in electric shock, fire
and/or serious injury.

Intended Use

The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts. In this, mitre angles
from  – 47 °  to  +52 °  as  well  as  bevel  angles  from  0 °  to  45 °  are
possible.
The capacity of the power tool is designed for sawing hard-
wood, softwood, particle and fibreboard, as well as alumini-
um and plastic.

Product Features

The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.

1

Blade guard

2

Lever for releasing the tool arm

3

Handle

4

On/Off switch

5

Retracting blade guard

6

Fence

7

Saw table

8

Mounting holes for material clamp

9

Insert plate

10

Locking knob for various mitre angles

11

Mitre detent lever

12

Mitre angle indicator

13

Scale for mitre angle

14

Mounting holes

15

Recessed handles

16

Drill holes for extension bars

17

Adjustable fence

18

Material clamp

19

Dust bag

20

Chip deflector

21

Wing bolt for fixing the adjustable fence

22

Hex key (size 6 mm)/cross-head screwdriver

23

Stop screw for 45 ° bevel angle

24

Tilt-protector bar

25

Chip ejector

26

Bevel lock lever

27

Transport safety-lock

28

Transport handle

29

Spindle lock

30

Adjusting screw of depth stop

31

Indicator for bevel angle

32

Scale for bevel angle

33

Stop screw for 0 ° bevel angle

34

Holes for tilt-protector bar

35

“Tilt-protector bar” fastening set

36

Extension bar

37

Fastening screw for extension bar

38

Cross-head screw
(attachment of retracting blade guard)

39

Hex socket screw for mounting of saw blade

40

Clamping flange

41

Saw blade

42

Interior clamping flange

43

Wing bolt for adjusting the height of the threaded rod

44

Threaded rod

45

Detents for standard mitre angles

46

Screws for insert plate

47

Hex socket screws (6 mm) of the fence

48

Screw for bevel angle indicator

Accessories shown or described are not part of the standard deliv-
ery scope of the product. A complete overview of accessories can
be found in our accessories program.

Noise Information

Sound emission values determined according to
EN 61029-2-9.

Typically the A-weighted noise levels of the product are:
Sound pressure level 92 dB(A); Sound power level
105 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!



Danger area! Keep hands, fingers or
arms away from this area.

Observe the dimensions of the saw blade.
The hole diameter must match the tool
spindle without play. Do not use reducers
or adapters.

When sawing mitre/bevel angles, the ad-
justable fence must be pulled outward.

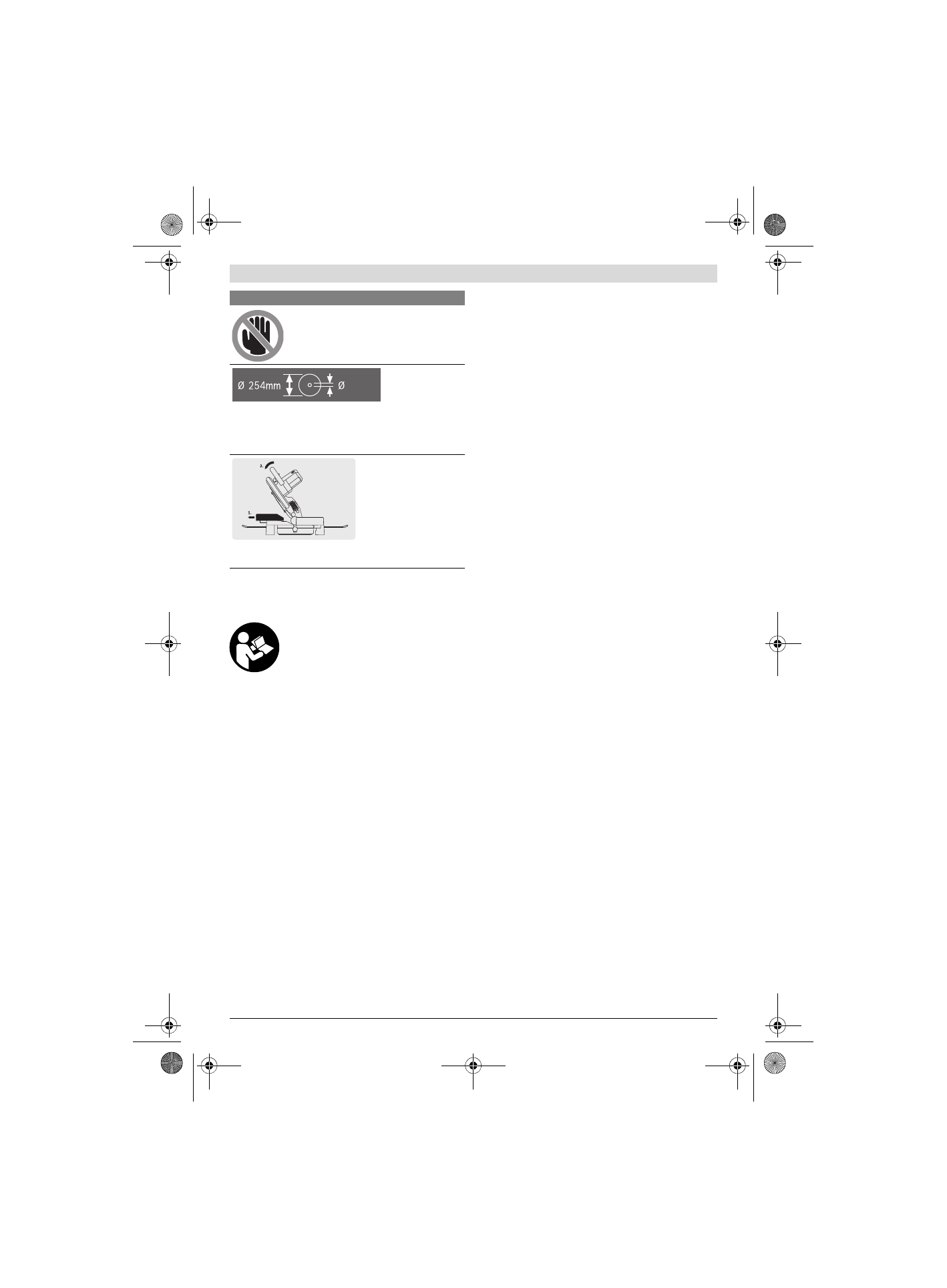

Symbols and their meaning
