Configure System Information

97

 S3300 Smart Managed Pro Switch

3.

Click the

Apply

 button.



To delete an SNMP trap recipient:

1.

Select the check box next to the recipient to remove.

2.

Click the

Delete

 button.

Trap Flags

Use the Trap Flags screen to enable or disable traps the switch can send to an SNMP
manager. When the condition identified by an active trap is encountered by the switch, a trap
message is sent to any enabled SNMP trap receivers, and a message is written to the trap
log.



To configure the trap flags:

1.

Select

System

>

 SNMP

>

 SNMP V1/V2

>

 Trap Flags

.

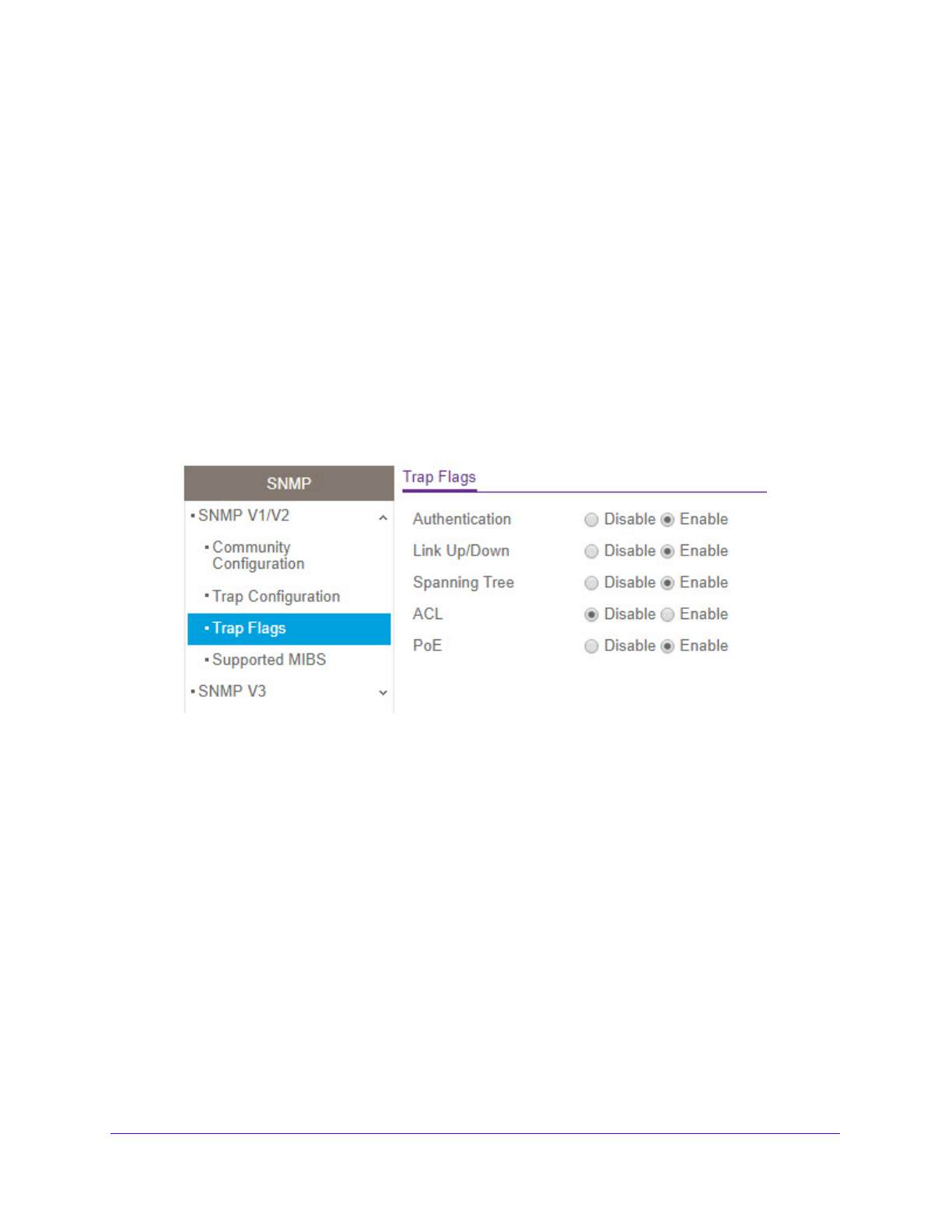

Figure 55. SNMP V1/V2 Trap Flags

2.

Enable or disable the following system traps:

•

Authentication

. When enabled, SNMP traps are sent when events involving

authentication occur, such as when a user attempts to access the device
management interface and fails to provide a valid user name and password.

•

Link Up/Down

. When enabled, SNMP traps are sent when the administrative or

operational state of a physical or logical link changes.

•

Spanning Tree

. When enabled, SNMP traps are sent when various spanning tree

events occur.

•

ACL

. When enabled, SNMP traps are sent when a packet matches a configured ACL

rule that includes ACL logging.

•

PoE

. When enabled, SNMP traps are sent when the PoE status changes.

3.

Click the

Apply

 button.
