Monitoring the System

334

S3300 Smart Managed Pro Switch

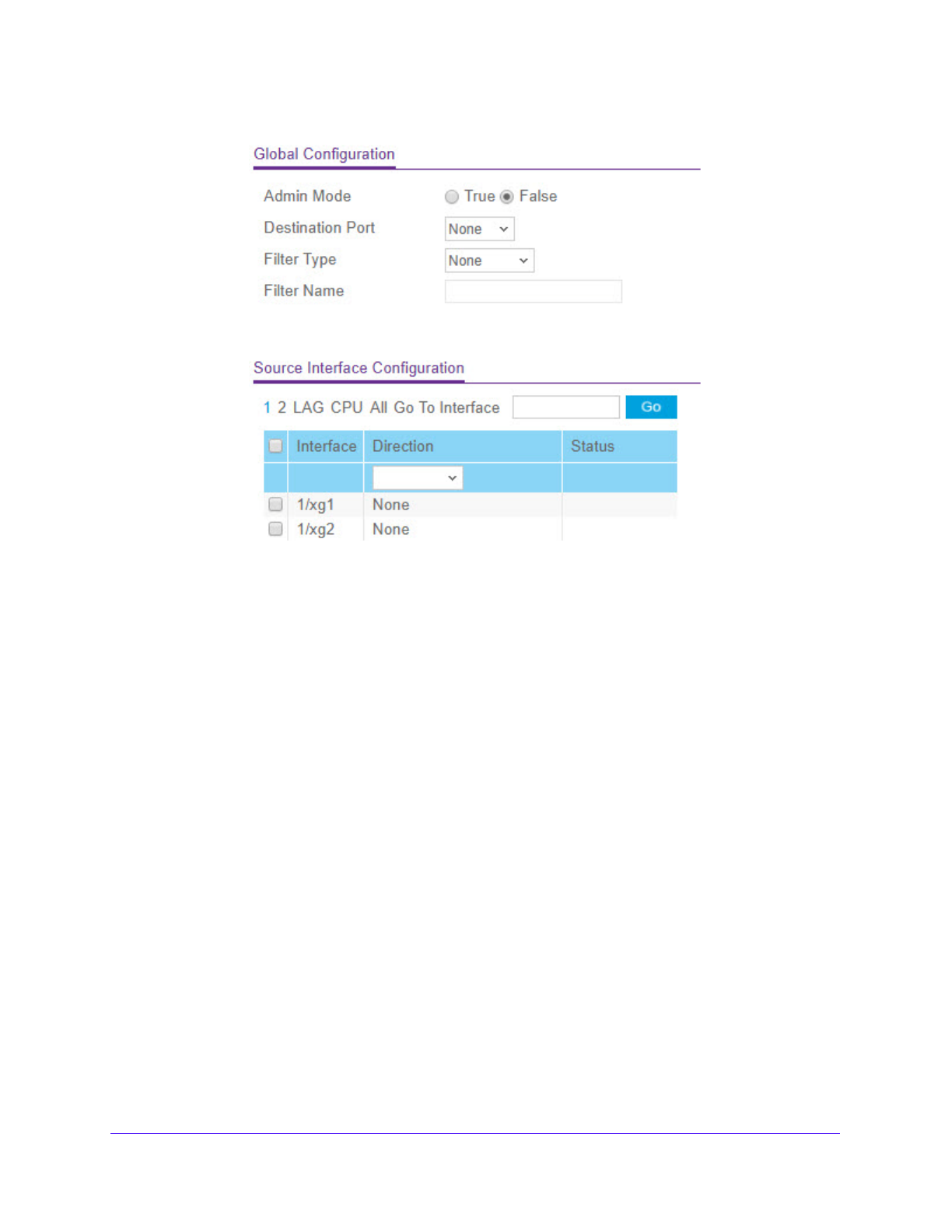

Figure 117. Port Mirroring

2.

In the Global Configuration section of the screen, click the option to enable (

True

) or disable

(

False

) the

Admin Mode

 for the current session. When Admin Mode is enabled, any traffic

entering or leaving the source ports of the current session is copied (mirrored) onto the
corresponding destination port. The default mode is disabled (False).

3.

In the

Destination Interface

 list, select the destination interface (port) to which port traffic is

be copied. The default value is

None

.

4.

Select the

Filter Type

 to configure IP or MAC ACLs which can mirror traffic that matches a

permit rule. Possible values are:

•

None

. No filter is configured for the session.

•

IP ACL

. Configure IP ACL.

•

MAC ACL

. Configure MAC ACL.

5.

In the

Filter Name

 field, enter the name of the filter, if it is configured for the session.

6.

In the Source Interface Configuration section of the screen, select the source port or ports.

You can configure multiple ports and LAGs as source ports. The CPU port can also be
configured as a source port. When the CPU is a source port, traffic received or sent by
the CPU is mirrored to the probe port.

a.

Display the ports or LAGs to configure as source ports.

To display physical interfaces, LAGs, or both, click one of the following links above the
table heading:

•

1

. Only physical interfaces are displayed. This is the default setting.

•

LAGS

. Only link aggregation groups are displayed.
