Getting Started

25

 S3300 Smart Managed Pro Switch

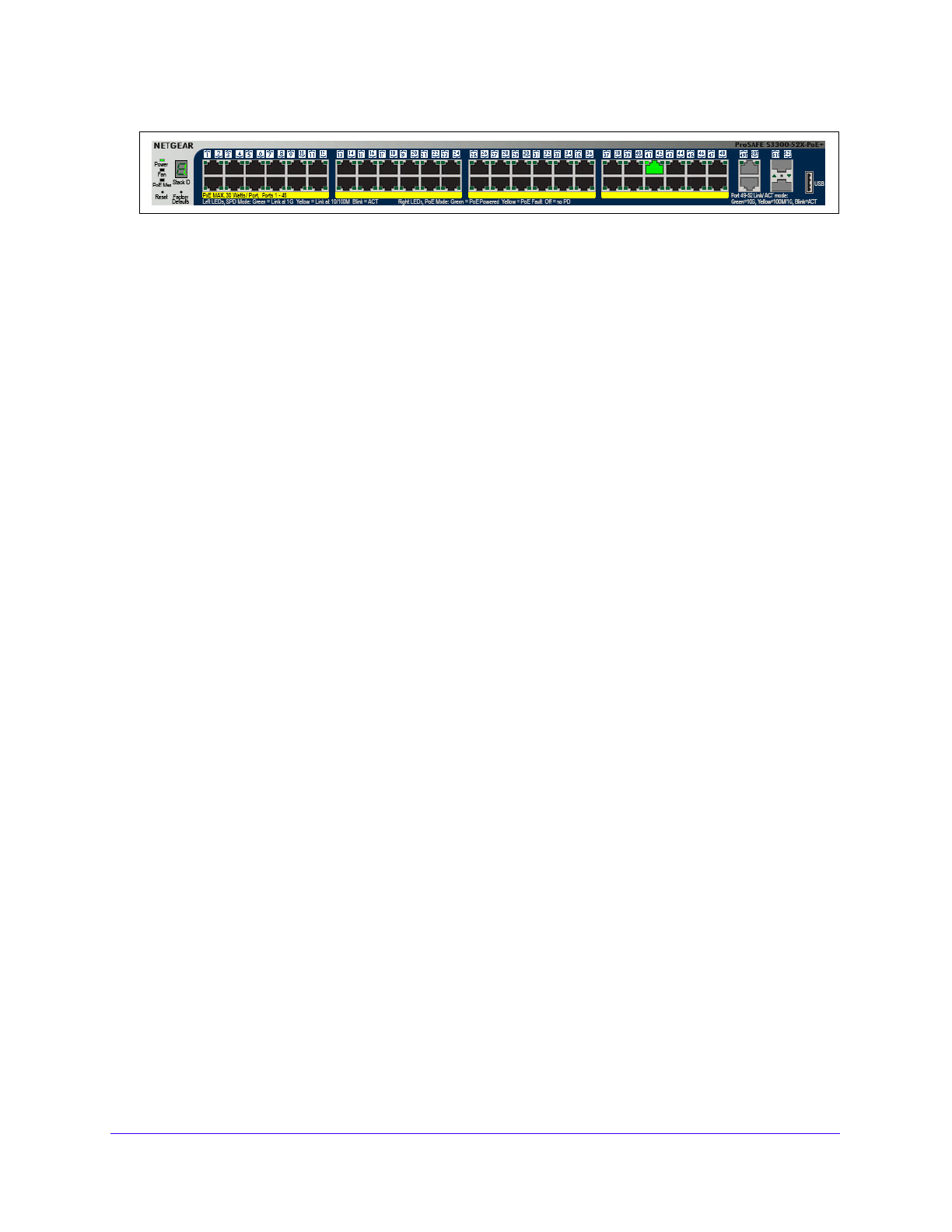

Figure 12. S3300-52X-PoE+

In the S3300, the four uplink ports can work in either Stacking mode or in Ethernet mode.

•

By default those ports are in Stacking mode, and their color is gray.

•

When these ports are configured in Ethernet mode, then their color is blank (not
connected).

Depending upon the status of the port, the port color in Device View is either red, green,
yellow, gray or black.

•

Green and yellow indicate that the port is enabled.

•

Red indicates that an error has occurred on the port or that the port is administratively
disabled.

•

Black indicates that no link is present.

When a link is present, the color of the port in the device view is either green or yellow:

•

A green speed LED indicates operational ports at the following link speed:

-

10G copper ports — 10 Gbps

-

1G copper ports — 1000 Mbps (1 Gbps)

-

Fiber SFP+ ports — 10 Gbps

•

A yellow speed LED indicates operational ports at the following link speed:

-

1G copper ports — 10/100 Mbps

-

Fiber SFP+ ports — 1000 Mbps

Click the port you want to view or configure to see a menu that displays statistics and
configuration options, as shown in

Figure 13

 on page 26. Select the menu option to access

the page that contains the configuration or monitoring options.
