Configuring Switching

142

S3300 Smart Managed Pro Switch

LAG Membership

Use the LAG Membership screen to select two or more full-duplex Ethernet links to be
aggregated together to form a link aggregation group (LAG), which is also known as a port
channel. The switch can treat the port channel as if it were a single link.



To add members to a LAG:

1.

Select

Switching



>

 LAG

>

 Basic

>

 LAG Membership

.

2.

From the LAG ID list, select the LAG to configure.

3.

(Optionally) In the LAG Name field, enter the name you want assigned to the LAG.

You can enter any string of up to 15 alphanumeric characters. A valid name has to be
specified to create the LAG.

4.

In the Port Selection Table, click the box below each port to include in the LAG.

A check mark in the box below the port indicates that the port is a member of the LAG. In
the following figure, ports 11–14 are members of LAG 1.

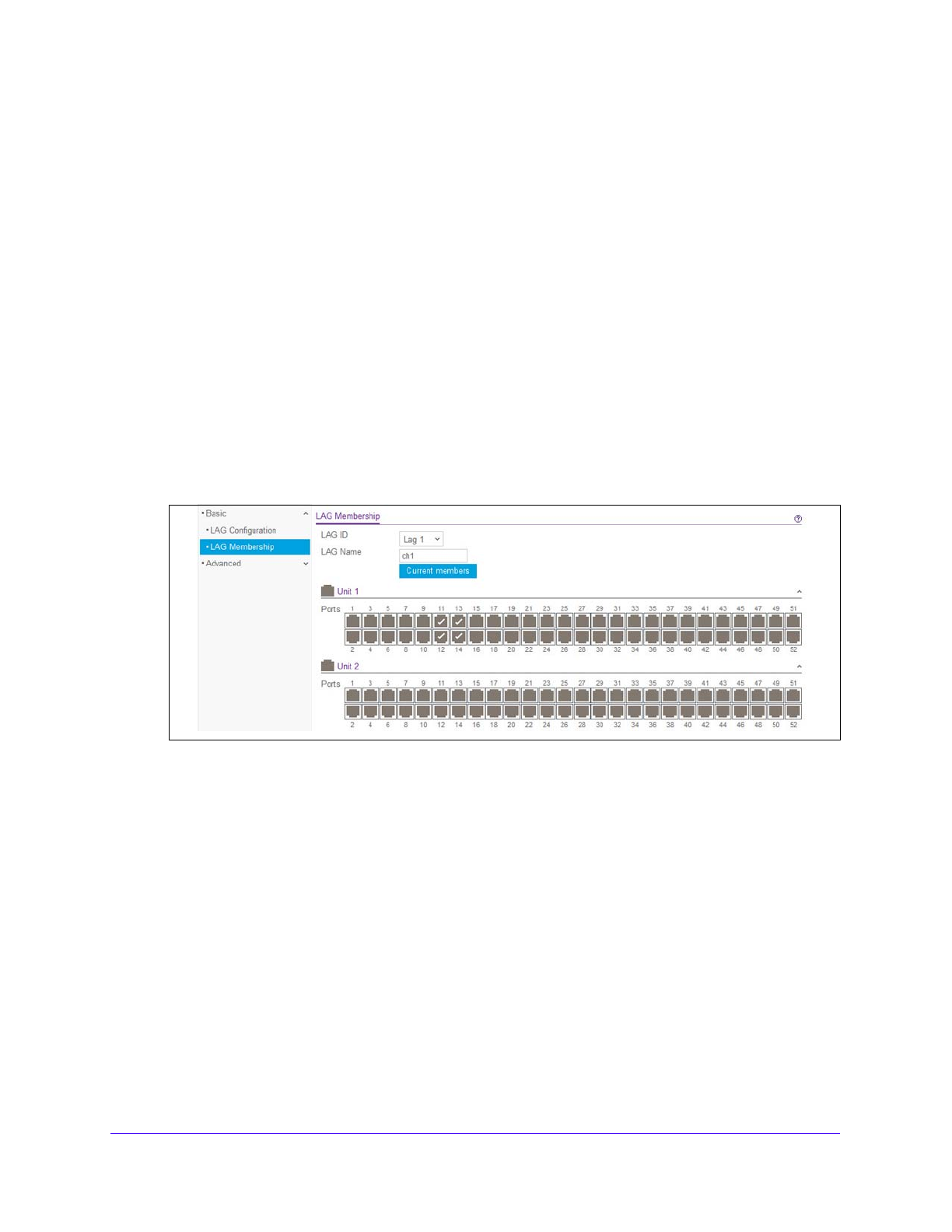

Figure 84.  LAG Membership

5.

Click the

Apply

 button

.

6.

To verify the configuration and view the ports that are members of the selected LAG, click

Current Members

. This action opens a new window with a list of current members.
