Configure System Information

85

 S3300 Smart Managed Pro Switch

Advanced Stack-Port Configuration



To configure a Stack-port:

1.

Click

System

>

 Stacking > Advanced > Stack-port Configuration.

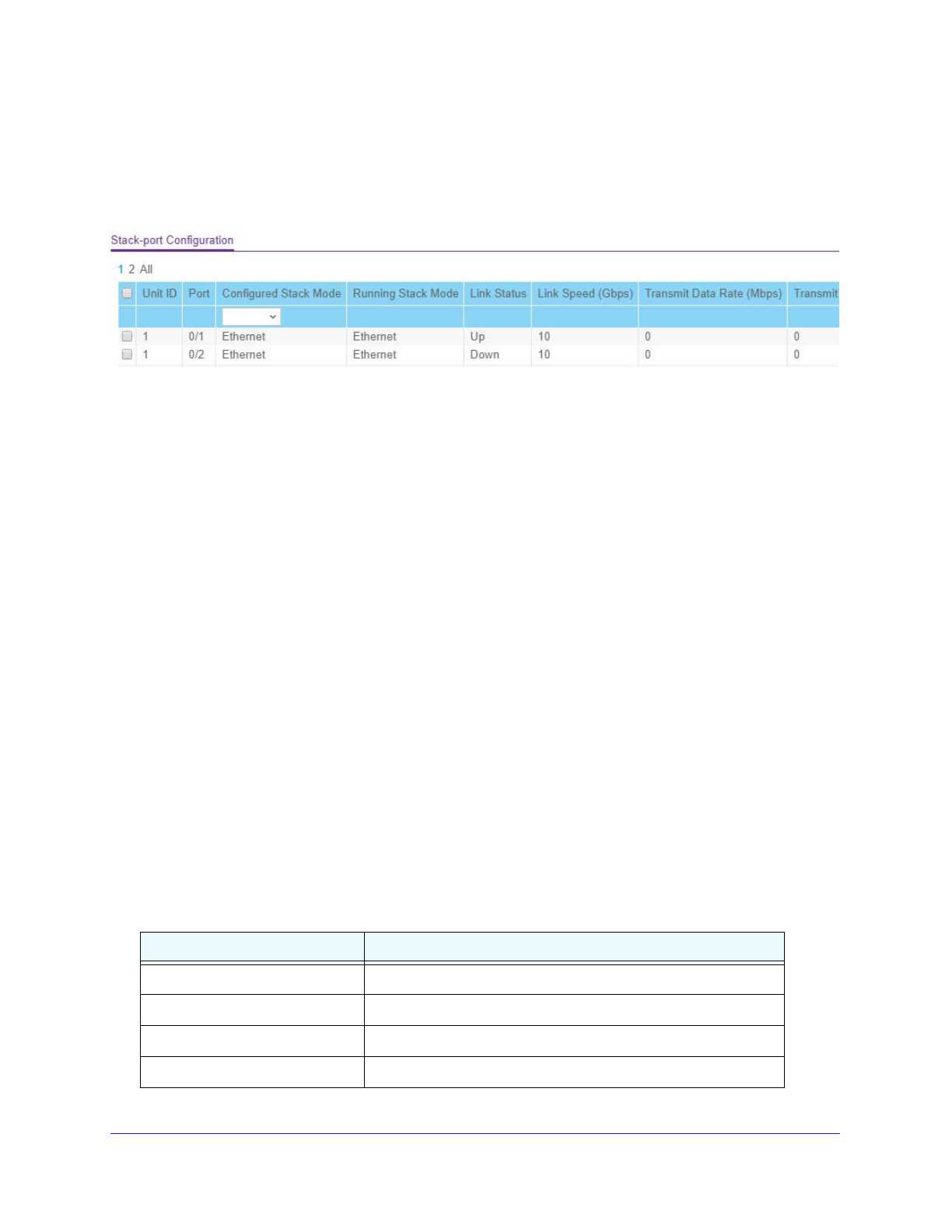

Figure 48. Stack-Port Configuration

2.

Select either the

Unit ID

 or

All

.

•

Select the

Unit ID

field to display information for the selected unit.

•

Select

All

 to display information for all units.

3.

In the

Configured Stack Mode

 field, specify the operating mode of the port to be either

Ethernet

 or

Stack

. The default value for front panel stack mode is

Stack

. The default value

for back panel stack mode is

Stack

. The default value for

Configured Stack Mode

 is

Ethernet.

4.

In the M4300 models, not all ports can be configured as stack ports, and only some
particular ports can be configured as stack ports. The maximum is eight stack links.

5.

For the predefined eight ports on the M4300-24X and M4300-12X12F models, both fiber
and copper stack links are needed. So, the last eight ports are predefined as follows:

a.

For M4300-24X, predefine the last eight ports (port 17 to 24):

-

Ports 17 to 20 are 10G copper.

-

Ports 21 to 24 are combo.

b.

For M4300-12X12F, predefine four fiber ports and four copper ports:

-

Ports 9 to 12 are 10G fiber

-

Ports 12 to 24 are 10G copper.

6.

Manually reboot the switch for the changes to take effect.

The following table describes the non-configurable Stack-port Configuration data that is
displayed.

Table 28.  Stack-port Configuration

Field

Description

Unit ID

The Unit ID of the specific switch.

Port

Displays the stack port on the given unit.

Running Stack Mode

Displays the runtime mode of the stack port.

Link Status

Displays the link status (Up/Down) of the port.
