 Configuration Examples

338

S3300 Smart Managed Pro Switch

•

Packets leaving the switch are either tagged or untagged, depending on the setting for
that port’s VLAN membership properties. A U for a given port means that packets leaving
the switch from that port are untagged. Inversely, a T for a given port means that packets
leaving the switch from that port are tagged with the VLAN ID that is associated with the
port.

This example demonstrates several scenarios of VLAN use and describes how the switch
handles tagged and untagged traffic.

In this example, you create two new VLANs, change the port membership for default VLAN 1,
and assign port members to the two new VLANs:

1.

In the Basic VLAN Configuration screen create the following VLANs:

•

A VLAN with VLAN ID 10.

•

A VLAN with VLAN ID 20.

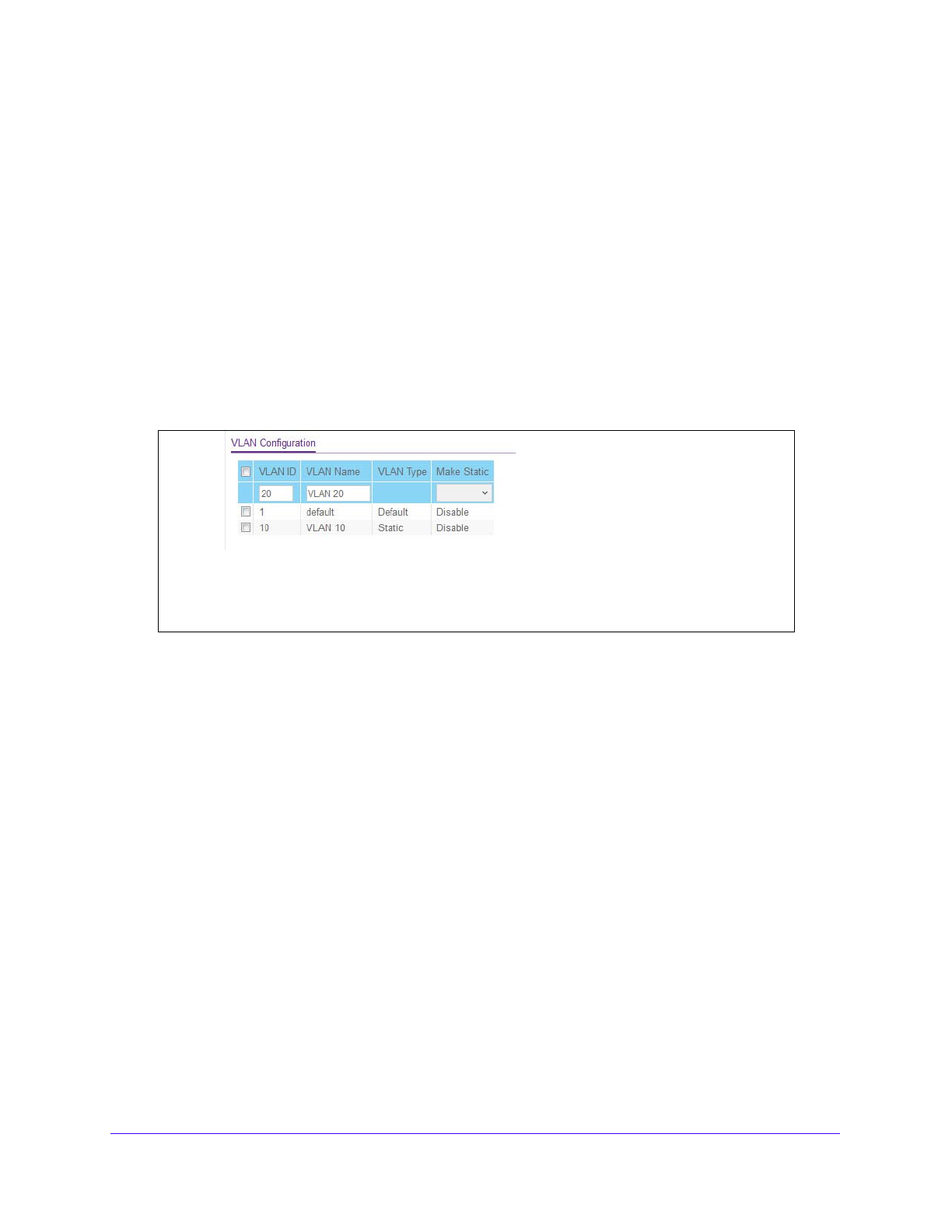

Figure 118. VLAN Configuration Example

For more information about how to perform this step, see

Basic VLAN Configuration

on

page 145.

2.

In the VLAN Membership screen, specify the VLAN membership as follows:

•

For the default VLAN with VLAN ID 1, specify the following members: port 7 (U) and
port 8 (U).

•

For the VLAN with VLAN ID 10, specify the following members: port 1 (U), port 2 (U),
and port 3 (T).

•

For the VLAN with VLAN ID 20, specify the following members: port 4 (U), port 5 (T),
and port 6 (U).
