Configuring Quality of Service

231

 S3300 Smart Managed Pro Switch

Class Configuration

Use the Class Configuration screen to add a new DiffServ class name, or to rename or delete
an existing class. The screen also allows you to define the criteria to associate with a DiffServ
class. As packets are received, these DiffServ classes are used to prioritize packets. You can
have multiple match criteria in a class. The logic is a Boolean logical-and for this criteria. After
creating a Class, click the class link to the Class screen.



To create a DiffServ class:

1.

Select

QoS

>

 DiffServ

>

 Advanced

>

 Class Configuration

.

2.

In the Class Name field, enter a class name.

3.

Select the class type

4.

Click the

Add

 button.

The switch supports only the Class Type value All, which means all the various match
criteria defined for the class should be satisfied for a packet match. All signifies the logical
AND of all the match criteria.

5.

Click the

Cancel

 button to cancel the configuration on the screen, and reset the data on the

screen to the latest value of the switch.



To rename an existing class:

1.

Select the check box next to the configured class.

2.

In the Class Name field, update the name.

3.

Click the

Apply

 button.



To delete a class:

1.

Select the check box next to the class name.

2.

Click the

Delete

 button.



To configure the class match criteria:

1.

Click the class name for an existing class.

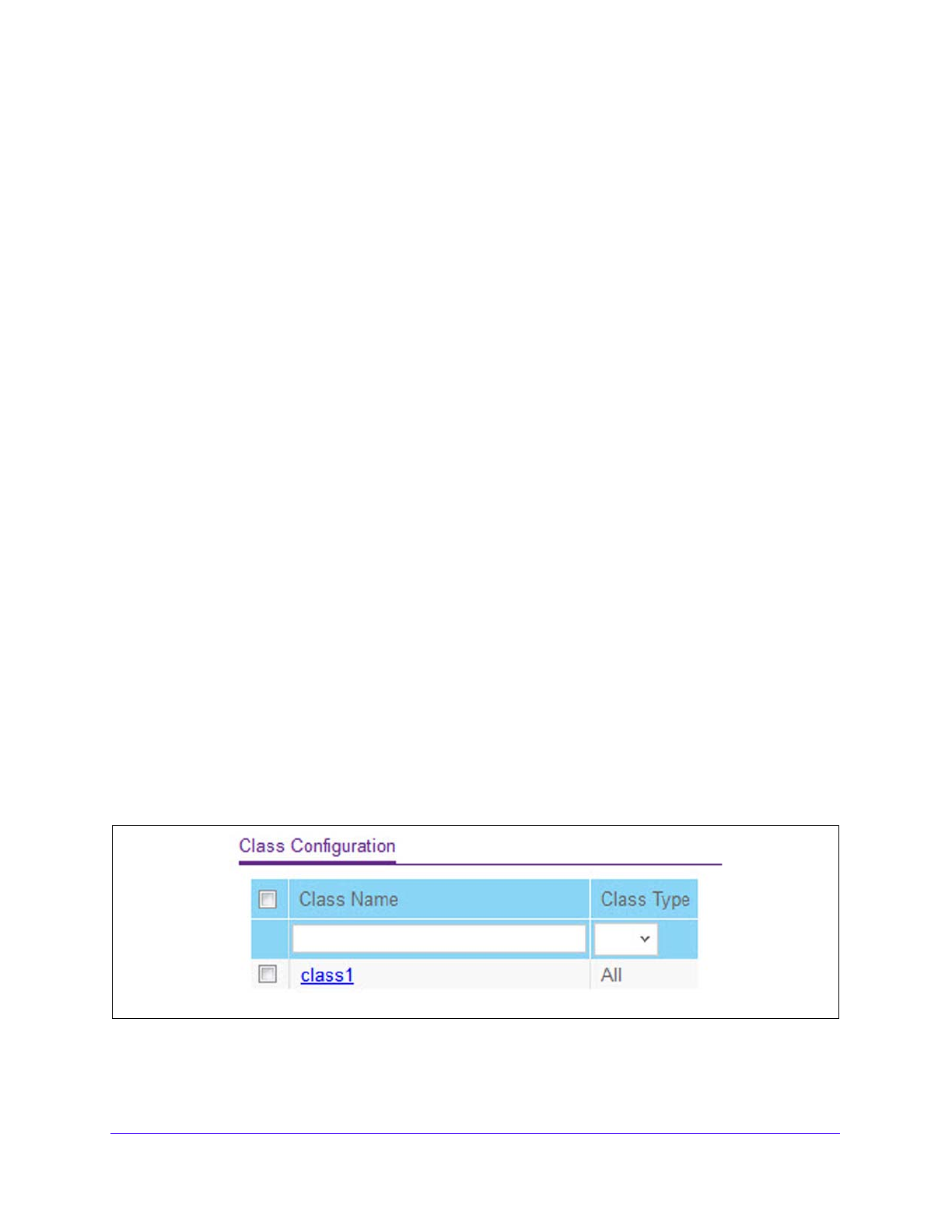

Figure 94.  DiffServ Class Name

The class name is a hyperlink. The following figure shows the configuration fields for the
class.
