Getting Started

23

 S3300 Smart Managed Pro Switch

Navigation Tabs, Configuration Menus, and Screen Menu

The navigation tabs along the top of the web interface give you quick access to the various
switch functions. The tabs are always available and remain constant, regardless of which
feature you configure.

When you select a tab, the features for that tab appear as menus directly under the tabs. The
configuration menus in the blue bar change according to the navigation tab that is selected.

The configuration screens for each feature are available as submenu links in the screen
menu on the left side of the screen. Some items in the menu expand to reveal multiple
submenu links, as the following figure shows.

Link

Submenu

links

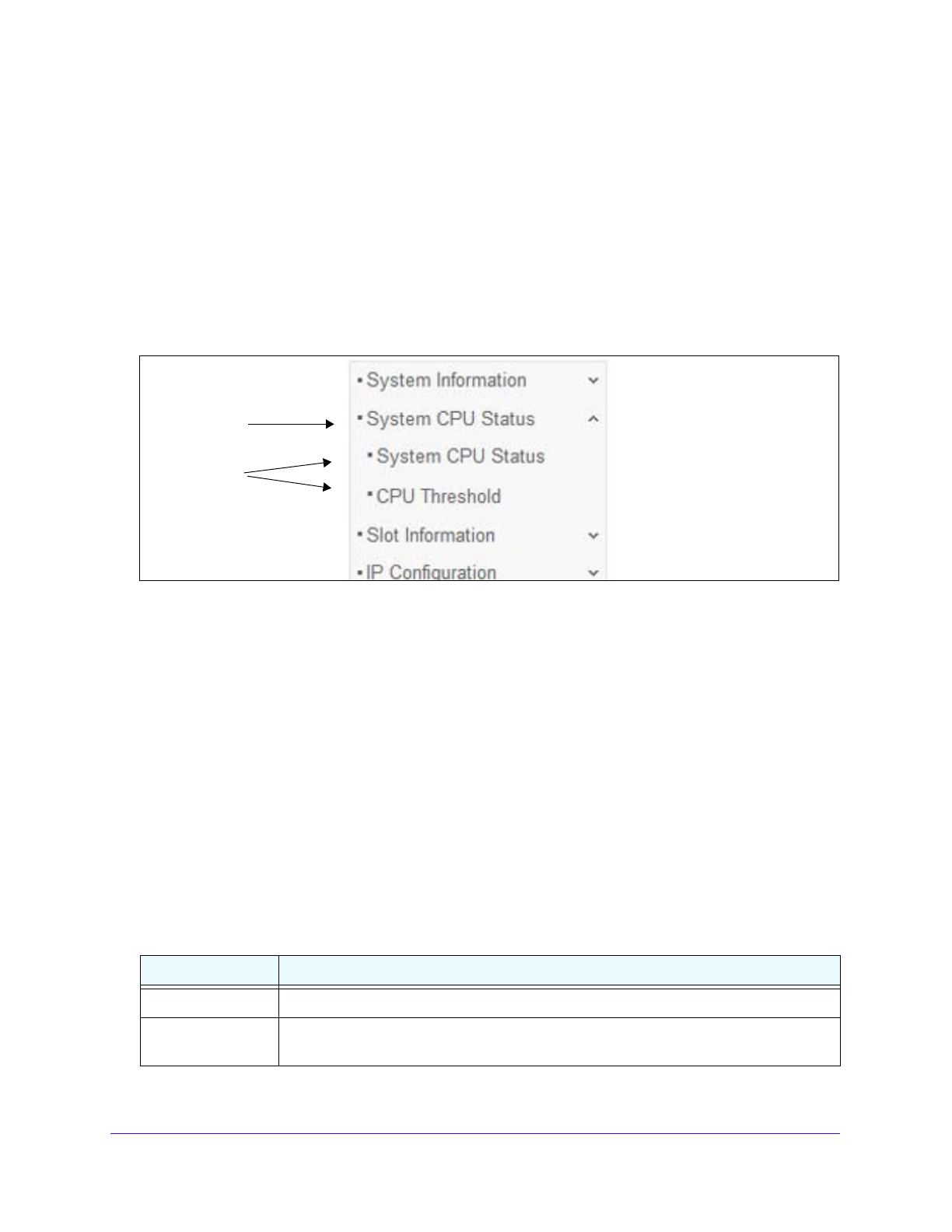

Figure 8. Submenu Links

When you click a menu item that includes multiple configuration screens, the item becomes
preceded by a down arrow symbol and expands to display the additional submenu links.

Configuration and Status Options

The area directly under the configuration menus and to the right of the links displays the
configuration information or status for the screen you select. On screens that contain
configuration options, you can input information into fields or select options from drop-down
lists.

Each screen contains access to the HTML-based help that explains the fields and
configuration options for the screen. Each screen also contains command buttons.

The following table shows the command buttons that are used throughout the screens in the
web interface:

Table 1.  Command buttons

Button

Function

Add

Places the new item configured in the heading row of a table.

Apply

Sends the updated configuration to the switch. Configuration changes take effect
immediately.
