22

 | English

u

Do not let children use the power tool unsupervised.

They could unintentionally blind themselves or other per-
sons

u

If the text of the laser warning label is not in your na-
tional language, stick the provided warning label in
your national language over it before operating for the
first time.

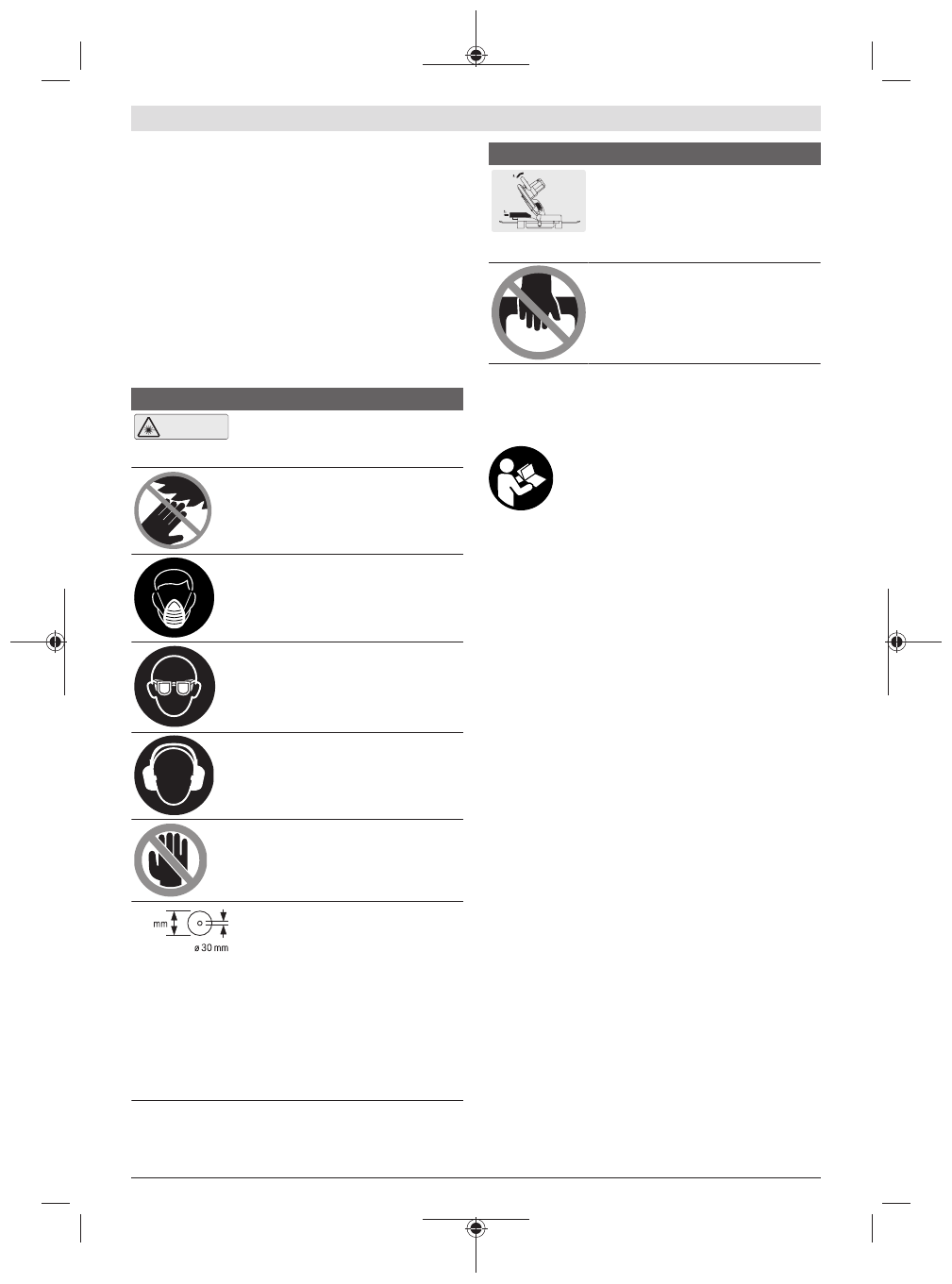

Symbols

The following symbols may be important for the operation of
your power tool. Please take note of these symbols and their
meaning. Correctly interpreting the symbols will help you to
operate the power tool more effectively and safely.

Symbols and their meaning

LASER RADIATION

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

EN 60825-1:2014

<1mW,  635 nm

Laser radiation
Do not look directly into the beam
Laser class 2

Keep hands away from the cutting area
while the power tool is running.

 Con-

tact with the saw blade can lead to injur-
ies.

Wear a dust mask.

Wear safety goggles.

Wear hearing protection.

 Exposure to

noise can cause hearing loss.

Danger area! Keep hands, fingers and
arms away from this area.

216

ø max.

Take note of the dimensions of the saw
blade. The hole diameter must fit the tool
spindle without play. If it is necessary to
use reducers, ensure that the dimensions
of the reducer are suitable for the base
blade thickness and the saw blade hole
diameter, as well as the tool spindle dia-
meter. Wherever possible, use the redu-
cers provided with the saw blade.

The saw blade diameter must match the
information specified on the symbol.

Symbols and their meaning

The adjustable fence must be pulled out-
wards or removed completely when saw-
ing bevel angles.

Never carry the power tool using the
handle of the tool arm.

Product Description and
Specifications

Read all the safety and general instructions.

Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.

Please observe the illustrations at the beginning of this oper-
ating manual.

Intended Use

The power tool is a stationary machine for cutting in a
straight line with and against the grain in hardwood, soft-
wood, chipboard and fibreboard. It is possible to cut mitre
angles of –47° to +47° and bevel angles of 0° to +45°.
When using appropriate saw blades, sawing aluminium pro-
files and plastic is also possible.

Product Features

The numbering of the product features refers to the diagram
of the power tool on the graphics page.

(1)

Dust bag

(2)

Protective guard

(3)

Transport handle

(4)

Handle

(5)

Lock-off function for on/off switch

(6)

Laser warning label

(7)

Laser protection cap

(8)

Laser beam outlet aperture

(9)

Retracting blade guard

(10)

Length gauge

(11)

Fence

(12)

Saw table

(13)

Clamping screw for extension bar

(14)

Insert plate

(15)

Locking knob for various mitre angles

(16)

Mitre pre-setting lever

(17)

Angle indicator for mitre angles

(18)

Scale for mitre angles

1 609 92A 6DZ | (15.03.2021)

Bosch Power Tools
