12

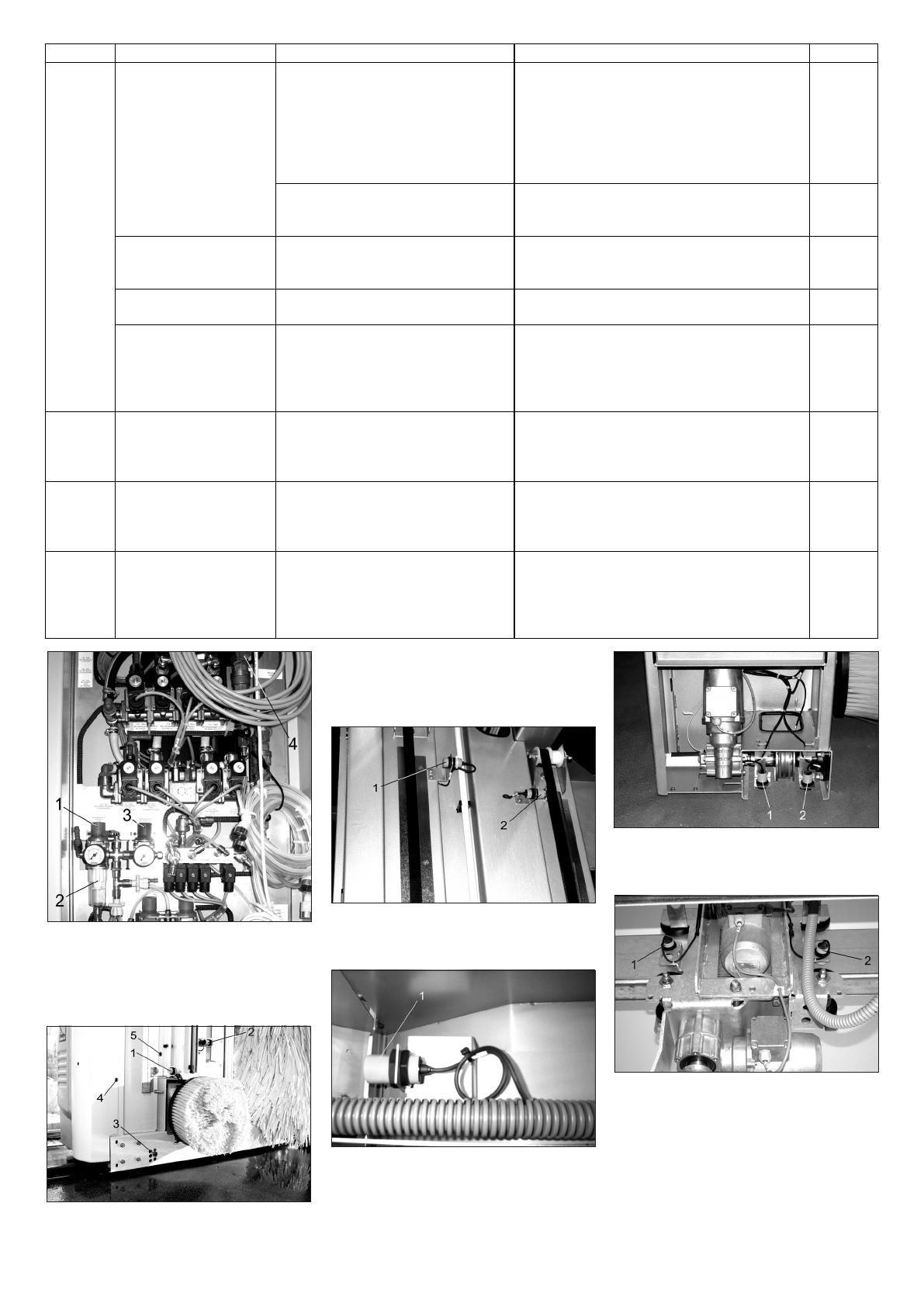

Figure 1
1 Maintenance unit
2 Filter
3 Pressure lessener wheel wash
4 Dirt catcher

Figure 2
1 Lower roof brush limit switch (DBU)

2 Lower drier limit switch (TRU)
3 Light barrier wheel wash facility
4 Light barrier position 1
5 Light barrier position 2

Figure 3
1 Upper roof brush limit switch (DBO)
2 Upper roof drier limit switch (TRO)

Figure 4
1 Limit switch for roof drier safety bracket

Figure 5
1 Limit switch for travel start (PTS)
2 Limit switch for travel end (PFE)

Figure 6
1 Limit switch for side brush 1 start

(SB1_a)

2 Limit switch for side brush 1 end

(SB1_e)

Time

Activity

Assembly affected

Remedy

of whom

monthly or
after 2000
washes

Clean filter

Block compressed air in the com-
pressed air maintenance unit (Diag. 1)

Turn off the compressed air supply and use the
manual operation to move the wheel wash sys-
tem in and out until the pressure has been re-
leased. Then check for zero pressure at the
manometer, screw off filter housing, remove fil-
ter cartridge, clean filter with compressed air,
re-insert cartridge, and screw on housing.

Operator

Detergent suction filter in the deter-
gent containers

Screw off the cover of the detergent containers
and rinse the filters of the suction hoses with
clean water.

Operator

Clean dirt catcher

Dirt catcher Fresh water (option), Dirt
catcher Fresh water (Diag. 1)

Shut off water supply, screw off cover of the dirt
catcher, rinse out filter with water, re-insert filter
and screw on cover.

Operator

Visual check of belt for
roof brush, roof drier

Belt of roof brush, roof drier

Visual inspection: Check status of the belts, re-
place, if necessary (Customer Service).

Customer
Service

Tighten and and check
distance of all limit
switches

All limit switches (see diagrams 2 to 6) Check of the nominal distances of 4mm: Use a

4mm thick flat material as feeler gage, measure
distance between limit switch and switching
flag. Readjust limit switch, if necessary by shift-
ing both plastic nuts.

Customer
Service

half-year-
ly or after
5000
washes

Check energy supply line Cables and hoses at: - energy column

or - energy chain or - cable tow

Visible inspection: Condition of hoses and ca-
bles, leaks in hoses and connectors. Check
ease of movement of roller truck at cable tow.

Operator

yearly or
after
10000
washes

Check running surface

SB traversing operation

Check that running surface for SB traversing
operation is clean. Remove contaminations us-
ing special cleaners (for e.g.6.869-035).

Operator

every two
years or
after
20000
washes

Replace belts and pulley Belts and pulleys drier and roof brush Replace belts and pulley

Customer
Service
