Shampoo from the jets for brush watering
mixed as detergent with water is sprayed
on the vehicle.

The detergent for preliminary cleaning is
applied as foam to increase the reaction
time.

The dirt catcher retains particles which
could block the jets.

The dosing pumps mixes the following de-
tergents and cleaning products with water:

–

shampoo (RM 811)

–

drying aid, (foam wax) (RM 829).

–

Foam, (hot foam) (RM 812).

–

Pre-spraying (RM 803 or RM 807)

–

Hot wax (RM 829)

The air needed for to blow-dry the vehicle
sides flows out of the drier jets.

The blow-dry beam is moved along the
contour of the vehicle. Built-in ventilators
generate the necessary air flow to dry the
vehicle.

The positioning ramp has the following
functions:

–

It is used to position the vehicle before
the wash.

–

The drive-out direction is indicated after
the wash.

–

Display of faults.

–

During manual operations, the selected
group is displayed.

The light barriers detect:

–

the position and contours of the vehicle
and

–

the position of the vehicle's wheels.

The canisters for detergents and care-liq-
uid are installed in the pillar 2.

The important plant data on the nameplate.

The control cabinet for the plant is accomo-
dated in column 1.

The main switch for the plant is mounted on
the feed distributor. The feed distributor is
positioned outside the wash plant in the
plant room or another suitable location
nearby.

In the event of danger for persons, property
and animals, the plant must be switched off
immediately by pressing the emergency-
stop button. It is found

–

at the operating point for manual mode,

–

at the wash card/code reader.

The vehicle wash plant is delivered with:

–

with a control station for manual operation

–

with a wash card/code reader (option)

–

with a comfort operating point (option).

–

with a service operating point (option).

A mechanical safety device holds the unit
on the washing tracks even if the customer
washing the vehicle makes grave mistakes.

The wash card or code reader is used for to
operate the wash plant with self-operation.

Note

The wash cards/codes required for opera-
tion are programmed for the specific plant.

enables the use of rainwater or recycled
water as a partial substitute for fresh water.

The optionally obtainable underfloor wash
facility enables the vehicle underside to be
washed. Hereby water is sprayed with high
pressure on the entire underside via two
oscillating jet pipes.

Hot wax is applied to the front half of the ve-
hicle.  The foam is generated from hot wa-
ter, a pre-spraying agent and compressed
air and is applied using the pre-spraying
nozzle.

The pre-cleaning chemicals are applied to
the vehicle from stationary fine nozzles.

The rim cleaner is applied to the wheels
from two nozzles located in the running
gear of the unit.

The high-pressure wash removes excess
dirt from the surface of the vehicle. By min-
imising the risk of scratches from sand
grains or similar substances, the HP clean-
ing is very important for paint-protective
cleaning.  Two designs are available with
operating pressures of 1.6 MPa (16 bar)
and 6 MPa (60 bar) respectively.

Before the drying process, foam wax is ap-
plied to the vehicle from the nozzles of the
drying aid.

Hot water mixed with wax is sprayed onto
the vehicle out of the hot wax nozzles.

When there is danger of frost, the water is
blown out of the pipeline system.   The wash
plant can be equipped with two anti-frost
devices:

–

Anti-frost manual:  The blow-out proce-
dure is enabled via the operator of the
plant.
Automatic anti-frost:  The blow-out pro-
cedure is controlled via a thermostat.

De-mineralised water (from an installed or
optional RO unit) or fresh water with drying
aid added to it is applied to the vehicle
through the nozzles for drying aid.

Using 4 stationary fine nozzles, the polish-
ing wax is sprayed on to the vehicle with the
help of compressed air.  The polishing
process then starts with the help of wash-
ing brushes.

Safety buttons are required when the re-
quired safety clearance between the wash-
ing unit and fixed structures (such as walls,
pillars, wash basins) cannot be maintained.
They avoid persons getting squeezed be-
tween the washing unit and the wall.  The
washing unit stops immediately as soon as
a safety button comes in contact with a hur-
dle.  After checking the reason, the safety
button must be reset by authorised expert.

Surfaces close to the washing area are pro-
tected against being sprayed by dirt or wa-
ter splashes from the rotating side-brushes.
The splash guard is fastened to the exter-
nal surfaces of the running gear and to the
pillars.

The spurposts have the task to ensure a
middle alignment of the vehicle. They pre-
vent the vehicle being placed too far away
from the middle.

In the event of danger for persons, property
and animals, the plant must be switched off
immediately by pressing the emergency-
stop button. It is found

–

at the wash card/code reader

–

at the operating point for manual mode

–

at the entrance to the wash hall, if there
is any operating point or wash card/
code reader there.

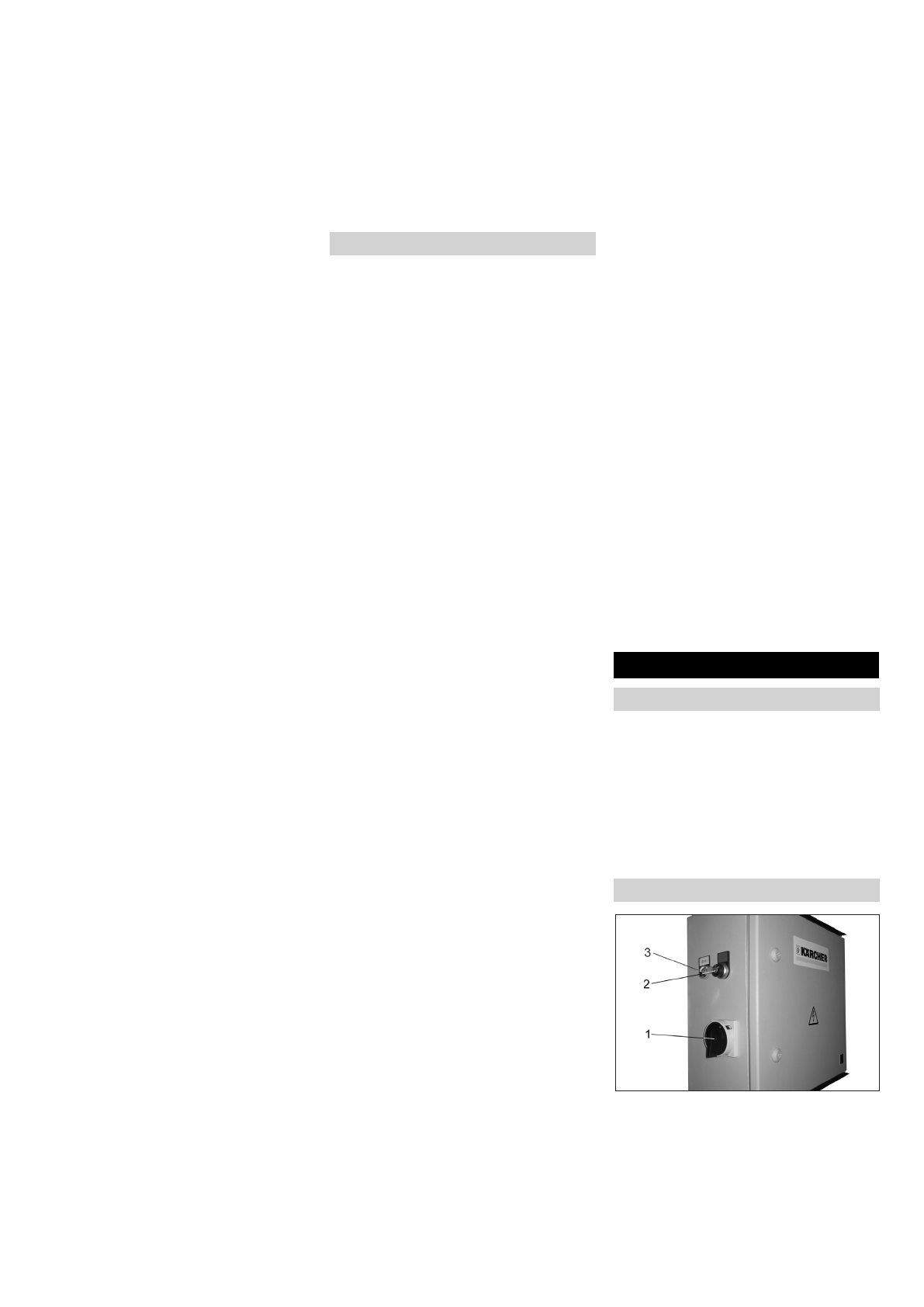

1 Main switch
2 Key switch (Option ABS counting sys-

tems)

3 Automatic/manual switch
The main switch is located at the feeder.



Set main switch at “1” to put the plant
into operation.

Jets for brush watering

Foam wash

Dirt catcher

Dosing pumps

Drier side-jets

Roof drier

Positioning ramp

Light barriers

Detergent

Nameplate

Control cabinet

Feed distributor

Emergency-stop button

Control station

Safeguard against tipping over.

Options

Wash card/code reader

Processed water connection

Underfloor wash facility

Pre-spraying (removing insects)

Intensive cleaning (only CB 2 skandi)

Rim cleaner

Side/ overall high pressure washing

Foam wax

Hot wax

Anti-frost devices

Osmosis

Polishing program

Safety button

Splash guard

Spurposts

Control elements

Emergency-stop

Main switch
