8

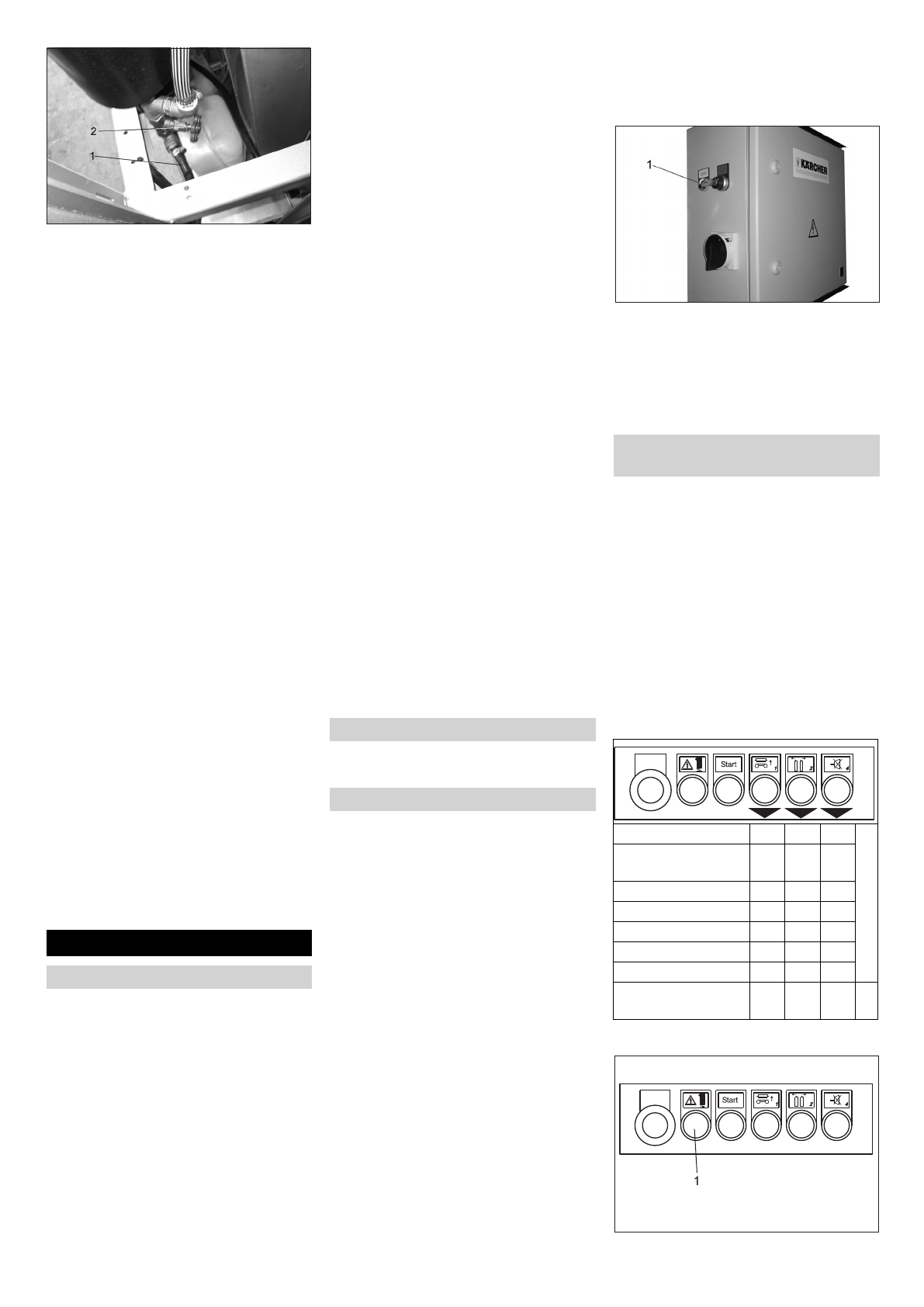

1 Boiler drain hose
2 Boiler drain tap

Check and ensure that the drain hose is
seated correctly at the boiler.

Danger

Danger of scalding by means of hot water.
Hot water comes out from the movable foot
of the unit. Do not keep your feet below the
unit while opening the drain tap.

Open the drain tap of the boiler and
empty the boiler.

Close the drain tap of the boiler.

When putting into operation for the first
time after manual antifrost, close the man-
ual valves for fresh water and processed
water (option).

If the minimum temperature is undercut:

any wash operation which is in progress
is completed.

the gantry hoses and jet pipes are
blown out with compressed air

No more wash programme can be started.

Should the anti-frost measures be intro-
duced with automatic anti-frost as a pre-
caution when the plant is shut down, an
additional switch can be installed by the
factory.
Once the danger of frost has passed, the
plant automatically resumes a state of op-
erational readiness.

Note

If the attachment set "Anti-frost boiler" has
been installed, then the boiler must be re-
filled when the frost risk is over:

Switch on the functions "Fresh water"
and "hot wax" in the manual operations
"Group 5 Water" until the boiler has
been filled up.

The basis for a safe operational plant is the
regular maintenance according to the fol-
lowing maintenance plan
Use exclusively original parts of the manu-
facturer or those parts recommended by
him like

replacement and wear parts

accessory parts

fuel,

detergents.

Danger

Risk of electric shock. Switch on the plant
voltage-free, in addition switch on the main
switch to “0” and secure against it switching
on again.
Risk of injury from compressed air unexpect-

edly emerging. Compressed-air cylinders

and lines also remain under pressure after

the plant has been switched off. It is absolute-

ly necessary to get rid of pressure before

starting work on the plant. To do this, turn off

the compressed air supply and move the

wheel wash system in and out in manual

mode to release the pressure.    Then check

for the absence of pressure on the manome-

ter at the maintenance unit.

Risk of injury from high-pressure water jet un-

expectedly emerging. It is absolutely neces-

sary to remove all pressure in the high-

pressure system before starting work on the

plant.

Risk of eye injuries from parts flying off or dirt.
Keep clear of rotating brushes. Goggles must
be worn during maintenance work.

Operator

Work designated with the sign “Operator”
may only be carried out by persons who
have been instructed in the safe operation
and maintenance on the wash plant

Customer Service

Work designated with the sign “Customer
Service” may only be done by the fitters of
Kärcher Customer Service.

In order to ensure a reliable operation of the
plant, we recommend that you conclude a
maintenance contract with us. Please contact
your relevant Kärcher Customer Service.

First remove the upper panel of the pillars.

Then remove the lower panel of the pillars.

Your own safety and the safety of others
demands that the plant is switched off dur-
ing maintenance and service work. Howev-
er, not all plant parts on which maintenance
is being done are freely accessible. This
makes it necessary to move certain plant
parts during maintenance and servicing
work. The operational mode “Manual Oper-
ation” is intended for this. Manual operation
is carried out using the operating point for
manual mode.

Danger

Risk of injury. Comply with the following se-
quence of working steps for to ensure your
own safety and the safety of others.

Drive the vehicle out of the plant.

Ensure that no persons or animals are
in the plant.

Switch on plant.

Switch on manual operation.

Move plant parts.

Switch off plant and secure against it
switching on again.

Carry out maintenance and servicing work.

Caution

Risk of damage to the plant and vehicle. Do
not use manual control for washing.

1 Automatic/manual switch

Turn automatic/manual switch to manu-
al position. The control voltage/ basic
position at the control station starts
blinking and the traffic light will show
STOP if manual operations are activat-
ed.

Note

Not all manual functions can be run using
the control station for manual operations.
The Comfort control station or the Service
control station is required to run all manual
functions.

The manual functions are divided into
groups.

Press button or button combination
(press simultaneously) to obtain the de-
sired group. The positioning ramp indi-
cates the selected group via a flashing
signal with the lamp “forward”.

Automatic anti-frost device

Maintenance and care

Maintenance instructions

Who may carry out maintenance and
servicing?

Maintenance contract

Remove the panels

Manual operation

Activate manual operation

Manual Operations: Control station

for manual operations

Select group

Group

1 roof brush/wheel
washer

X

2 side- brushes

X

3 drier

X

X

4 portal drive

X

5 water

X

X

6 pumps

X

X

7 Frost protection
(option)

X

X

X

Switch off group

30

EN
