6
In the event of danger for persons, property
and animals, the plant must be switched off
immediately by pressing the emergency-
stop button. It is found
–
at the wash card/code reader
–
at the operating place for manual oper-
ator station
–
at the entrance to the wash hall, íf an
operating point or wash card/code
reader is located there.
Caution
Risk of damage to vehicle which is to be
cleaned. If the wash plant develops a fault
once the detergent has been applied, it
must be switched off and the detergent re-
moved by spraying the vehicle thoroughly
with water to prevent the paintwork being
damaged through an extended period of
exposure to the detergent.
Note
In the case of self-operating plants, a spe-
cialist familiar with the plant must be con-
tactable who can carry out measures, or
have them done, in order to avoid possible
dangers.
Note
Before switching on again, the cause for
activating the emergency switch button has
to be remedied. Persons or animals may
not remain in the working area. Vehicles
must be driven out of the plant.

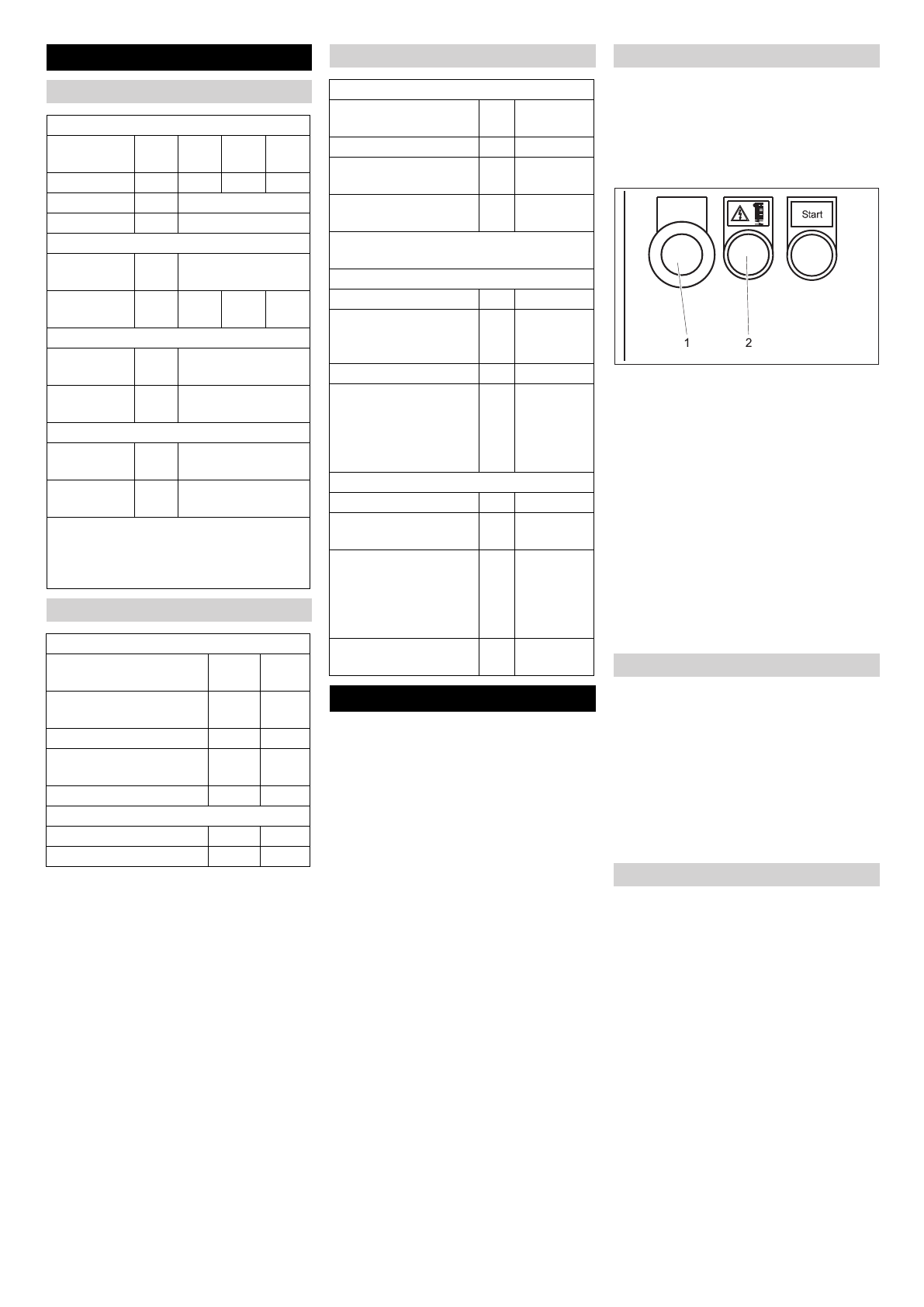

1 Emergency-stop button
2 Control supply voltage/normal position
button
Release emergency-stop button by
pulling it.
Set automatic/manual switch at the
feeder to automatic.
Press control supply voltage/normal po-
sition button on the operating point for
manual mode.
In the normal position, the above green sig-
nal light “forward” of the vehicle positioning
traffic light lights up. The plant is again
ready for operation and the the vehicle be-
ing washed can be driven in.
Stop valve opens for water and com-
pressed air.
Set main switch on the feeder to “1”.
Set automatic/manual switch to auto-
matic.
Press control supply voltage/normal po-
sition button on the operating point for
manual mode.
The plant is again ready for operation and the
the vehicle being washed can be driven in.
Caution
Risk of damage. When using Carlite brushes,
the vehicle must be manually cleaned before-
hand, if the appliance is not equipped with an
upgrade kit high pressure!
Caution
In order to avoid damage to the vehicle, the
following precautionary measures have to
taken on the vehicle before starting the
wash plant:
Close windows, doors and roof openings.
Push in antennas, fold over in direction
of rear or dismantle
.
Fold in large or wide overhanging mirrors.
Check vehicle for loose vehicle parts
and dismantle them, e.g.:
–
trim strips,
–
spoilers,
–
bumpers,
–
door handles,
Technical specifications
Dimensions
Plant dimensions
CB 2/
23
CB 2/
25
CB
2/28
Height
mm
3215 3415 3715
Width
mm
3500
Depth *)
mm
2020
Vehicle size limits dimensions **)
Washing
width
mm
2300
Washing
height
mm
2300 2500 2800
Washable vehicle lengths ***)
without safe-
ty distance
mm
5800
with safety
distance
mm
5270
Hall width
with safety
distance
mm
4500
without safe-
ty distance
mm
4050
>*) Rotating roof brush, rotating side
brushes **) almost all vehicles can be
washed within these measurements ***)
with 9000 mm drive channel length
Features
Wash brushes
Diameter of side-brushes
Side
mm
965
Side-brush rotation
speed
1/min
107
Diameter of brush Roof
mm
880
Brush rotation speed
Roof
1/min
127
Portal drive speed
m/min
0...20
Sound level
Brush cleaning
dB(A)
67
Drier operation
dB(A)
87
Connection values
Electrical connection
Voltage
V
400/3~, P,
N
Frequency
Hz
50
Connection output Ba-
sic plant
kW
16
Pre-securing Control
cabinet *
A
max. 35
* to be provided at installation site accord-
ing to the local requirements
Water connection
Nominal width
Inch
1
Flow pressure accord-
ing to DIN 1988 (with
100 l/min)
MPa
(bar)
0,4...0,6
(4...6)
Temperature
°C
max. 50
Water consumption/ve-
hicle with 0.45 MPa
(programme-depend-
ent with 4.5 m vehicle
length)
l
80...210
Compressed air connection
Nominal width
Inch
1/2
Pressure
MPa
(bar)
0,6...0,8
(6...8)
Consumption/Washes
(without anti-frost de-
vice, programme-de-
pendent with 4.5 m
vehicle length)
l
50
Use in frost protection l
approx.
700
Operation
Switching on after emergency-stop
Start up
Preparing the vehicle
