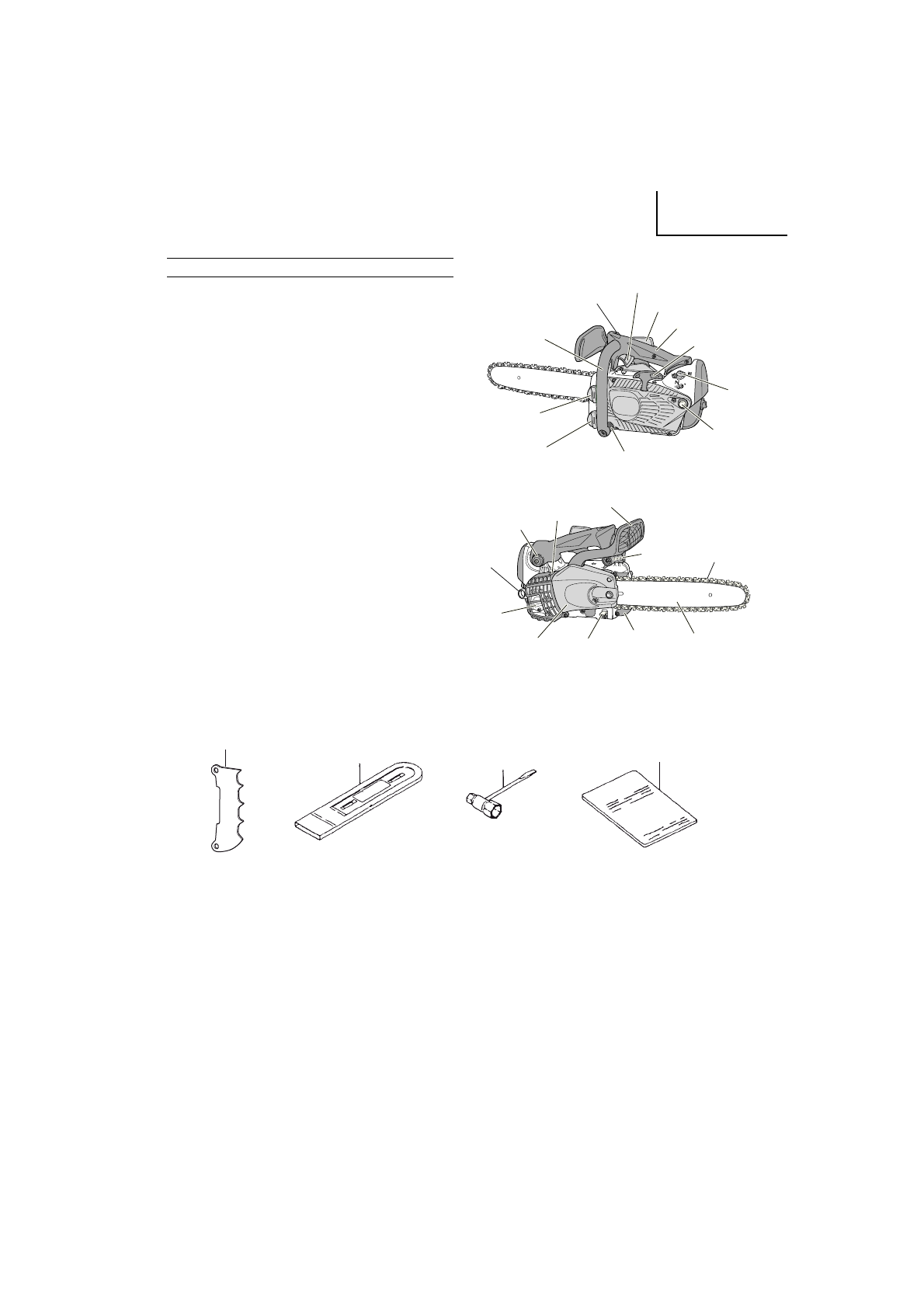

1. Throttle trigger: Device activated by the operator
ʼ
s
fi
nger, for
controlling the engine speed.
2. Throttle trigger lockout: Device that prevents the accidental
operation of the throttle trigger until manually released.
3. Ignition switch: Device for allowing the engine to be star ted or
stopped.
4. Oil tank cap: For closing the oil tank.
5. Recoil star ter: Pull handle to star t the engine.
6. Front handle: Suppor t handle located at or towards the front of
the engine housing.
7. Fuel tank cap: For closing the fuel tank.
8. Rear handle: Suppor t handle located on the top of the engine
housing.
9. Choke lever: Device for enriching the fuel/air mixture in the
carburetor, to aid star ting.
10. Priming pump; Device for supplying extra fuel, to aid star ting.
11. Guide bar: The par t that suppor ts and guides the saw chain.
12. Saw chain: Chain, ser ving as a cutting tool.
13. Chain brake (Front hand guard): Device for stopping or locking
the chain.
14. Attachment point: The par t for suspending the unit by using a
safety strap, carabineer or rope.
15. Chain catcher: device for restraining the saw chain.
16. Side case: Protective cover to the guide bar, saw chain, clutch
and sprocket when the chain saw is in use.
17. Mu
ffl
er: Reduces engine exhaust noise and directs the exhaust
gases.
18. Anti-vibration spring: Reduce the transmission of vibrations to
the operator's hands.
19. Anti-vibration rubber: Reduce the transmission of vibrations to
the operator's hands.
20. Spiked bumper (optional): Device for acting as a pivot when in
contact with a tree or log.
21. Guide bar cover: Device for covering the guide bar and saw
chain when the unit is not being used.
22. Combi box spanner: The tool for removing or installing a spark
plug and tensioning the saw chain.
23. Handling instructions: Included with unit. Read before operation
and keep for future reference to learn proper, safe techniques.
24. Hot sur face caution label: Label for caution to hot sur face.
