OPERATING

PROCEDURES

Operator

safety

WARNING

This

chain

saw

(CS33EDT)

is

designed

especially

for

tree

care

and

surgery.

Only

persons

trained

in

tree

care

and

surgery

may

use

this

saw.

Observe

all

literature,

procedures

and

recommendations

from

the

relevant

professional

organization.

Failure

to

do

so

constitutes

a

high

accident

risk.

We

recommend

always

using

a

rising

platform

for

sawing

in

trees.

Rappelling

techniques

are

extremely

dangerous

and

require

special

training.

The

operator

must

be

trained

in

and

familiar

with

the

use

of

safety

equipment

and

working

and

climbing

techniques.

Always

use

the

restraining

equipment

for

both

the

operator

and

the

saw.

Fuel

(Fig.

8)

WARNING

○

  The chain saw is equipped with a two-stroke engine. Always

run the engine on fuel, which is mixed with oil. Provide good
ventilation, when fueling or handling fuel.

○

  Fuel contains highly

fl

 ammable and it is possible to get the

serious personal injur y when inhaling or spilling on your body.
Always pay attention when handling fuel. Always have good
ventilation when handling fuel inside building.

Fuel

○

  Always use branded 89 octane unleaded gasoline.

○

  Use genuine two-cycle oil or use a mix between 25:1 to 50:1,

please consult the oil bottle for the ratio or HITACHI dealer.

○

  If genuine oil is not available, use an anti-oxidant added quality

oil expressly labeled for air-cooled 2-cycle engine use (JASO
FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW
(2-stroke water-cooling type) mixed oil.

○

  Never use multi-grade oil (10 W/30) or waste oil.

○

  Always mix fuel and oil in a separate clean container.

Always start by

fi

 lling half the amount of gasoline, which is to be used.

Then add the whole amount of oil. Mix (shake) the fuel mixture. Add
the remaining amount of gasoline.
Mix (shake) the fuel-mix thoroughly before

fi

 lling the fuel tank.

Fueling

WARNING

(Fig.

9)

○

  Always shut o

ff

   the engine and let it cool for a few minutes before

refueling.

○

  Do not smoke or bring

fl

 ames or sparks near the fueling site.

○

  Slowly open the fuel tank (13), when

fi

 lling  up  with  fuel,  so  that

possible overpressure disappears.

○

  Tighten the fuel tank cap carefully, after fueling.

○

  Always move the unit at least 3 m from the fueling area before

star ting.

○

  Always wash any spilled fuel from clothing immediately with soap.

○

  Be sure to check any fuel leaking after refueling.

Before  fueling,  clean  the  tank  cap  area  carefully,  to  ensure  that  no
dir t falls into the tank. Make sure that the fuel is well mixed by shaking
the container, before fueling.

Chain

oil

(Fig.

9)

Slowly open the oil tank (14), and

fi

 ll  up  with  chain  oil.  Always  use

good quality chain oil. When the engine is running, the chain oil is
automatically discharged.
Fill up the oil tank (14) with chain oil ever y time when refueling.

NOTE

When pouring fuel (13) or chain oil (14) into the tank, place the
unit with cap side up. (

Fig.

9

)

Starting

the

cold

engine

(Fig.

10 -15)

CAUTION

Before star ting, make sure that the bar/chain does not touch
any thing.

1.  Make sure chain brake is engaged. (

Fig.

10

)

2.  Set ignition switch (15) to ON position (

Fig.

11

).

3.  Push priming pump (16) about ten times so that fuel

fl

 ows

through priming pump into carburetor. (

Fig.

12

)

4.  Turn the choke lever (17) to choked position (

Fig.

12

). This will

automatically lock the throttle in star ting position.

5.  Pull recoil star ter briskly, taking care to keep the handle in your

grasp and not allowing it to snap back. (

Fig.

13

)

6.  When you hear

fi

 rst ignition, return the choke lever to run

position. (

Fig.

12

)

7.  Pull recoil star ter briskly again in the aforementioned manner.

(

Fig.

13

)

NOTE

If engine does not star t, repeat procedures from 4 to 7.

8.  As soon as engine start, pull throttle trigger full once and release

immediately. (

Fig.

14

)

Then half-throttle is disengaged.

9.  Make sure chain brake is disengaged. (

Fig.

15

)

Allow the engine about 2-3 minutes to warm up before subjecting
it to any load.

Do not run the engine at high speed without the load to shor ten
the longevity of the engine.

Starting

the

warm

engine

Use only 1, 2, 7, and 9 of the star ting procedure for a cold engine.
If the engine does not star t, use the same star ting procedure as for
a cold engine.

Chain

lubrication

test

Check that chain oil is discharged properly. When the saw chain
star ts to revolve, point the head of the guide bar to a stump, etc., and
pull the throttle trigger to per form high-speed operation for around
10 seconds. If chain oil is sprayed over the stump, it is discharged
properly. (

Fig.

16

)

Chain

brake

operation

(Fig.

17)

Chain brake (18), is designed to activate in an emergency such as kick-
back action. Please check to verify that it works properly before use.
Application of brake is made by moving the front hand guard towards
the bar. During the chain brake operation, even if the throttle trigger
is pulled, the engine speed does not increase and the chain does not
turn. To release the brake, pull up the front hand guard.

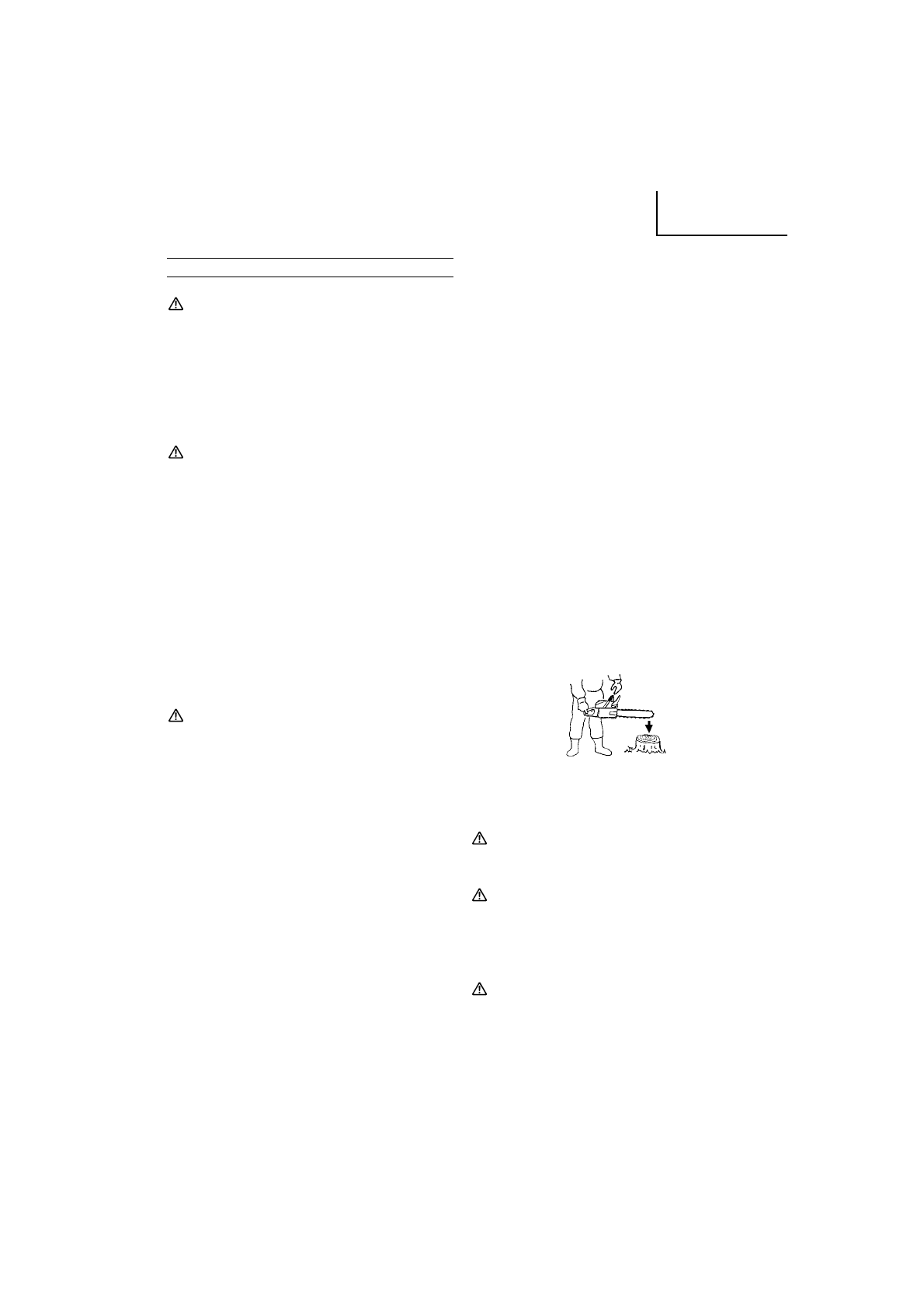

How

to

con

fi

rm:

1) Turn

o

ff

  the engine.

2)  Holding the chain saw horizontally, release your hand from the front

handle, hit the tip of the guide bar to a stump or a piece of wood, and
con

fi

 rm brake operation. Operating level varies by bar size.

In case the brake is not e

ff

 ective, ask our dealer for inspection and

repairs.  If  the  engine  keeps  rotating  at  high  speed  with  the  brake
engaged, the clutch will overheat causing trouble.
When the brake engages during operation, immediately release the
throttle trigger to stop the engine.

WARNING

Do not carr y the machine with the engine running.

Stopping

(Fig.

18)

Decrease engine speed, and push ignition switch (15) to stop position.

WARNING

Do not put the machine where there are

fl

 ammable  materials

such as dried grass, since the mu

ffl

  er is still hot after the engine

has stopped.

NOTE

If the engine does not stop, it can be forced to stop by rotating the
choke lever to the choked position.

Before restar ting the engine, ask our dealer for repairs.

WARNING

○

  Do not overreach or cut above shoulder height.

○

  Use extra caution when felling, and do not use the saw in a nose-

high position or above shoulder height.

CHAIN

CATCHER

The chain catcher is located on the power head just below the chain
to fur ther prevent the possibility of a broken chain striking the chain
saw user.
