Product Description and Specifica-
tions

Read all safety warnings and all instruc-
tions.

Failure to follow the warnings and in-

structions may result in electric shock, fire
and/or serious injury.

Intended Use

The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts in wood. Horizontal
mitre  angles  of  – 60 °   to  +60 °   as well as vertical bevel angles
of 0 °  to 45 °  are possible.
The machine is designed with sufficient capacity for sawing
hard and softwood as well as press and particle board.

When operating as a table saw, the power tool is not permit-
ted for cutting aluminium or other non-ferrous metals or al-
loys.

Product Features

The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.

1

Sliding table

2

Table extension

3

Insert plate

4

Riving knife

5

Blade guard

6

Sticker for marking of the cutting line

7

Auxiliary stop of the parallel guide

8

8

Parallel guide

9

Parallel fence of the table width enlargement

10

10

Table width enlargement

11

Saw table

12

Crank for lowering and raising the saw blade

13

Scale for clearance of the saw blade to the parallel guide

8

14

ON button



Keep hands away from the cutting
area while the machine is running.

Danger of injury when coming in con-
tact with the saw blade.

Do not dispose of power tools into house-
hold waste!

Only for EC countries:

According to the European Guideline
2002/96/EC for Waste Electrical and
Electronic Equipment and its implementa-
tion into national right, power tools that
are no longer usable must be collected
separately and disposed of in an environ-
mentally correct manner.

Indicates the rotation direc-
tion of the handwheel for low-
ering (

transport position

)

and raising (

working posi-

tion

) the saw blade.

Indicates the maximum per-
missible workpiece height for
the standard bevel angles 90 °
and 45 ° .

Observe the dimensions of
the saw blade. The hole diam-
eter must match the tool spin-
dle without play. Do not use
reducers or adapters.

When changing the saw blade,
pay attention that the cutting
width is not smaller and the
blade body thickness is not
larger than the thickness of
the riving knife.

Indicates the function of the
locking knob on the angle stop
when adjusting mitre angles.

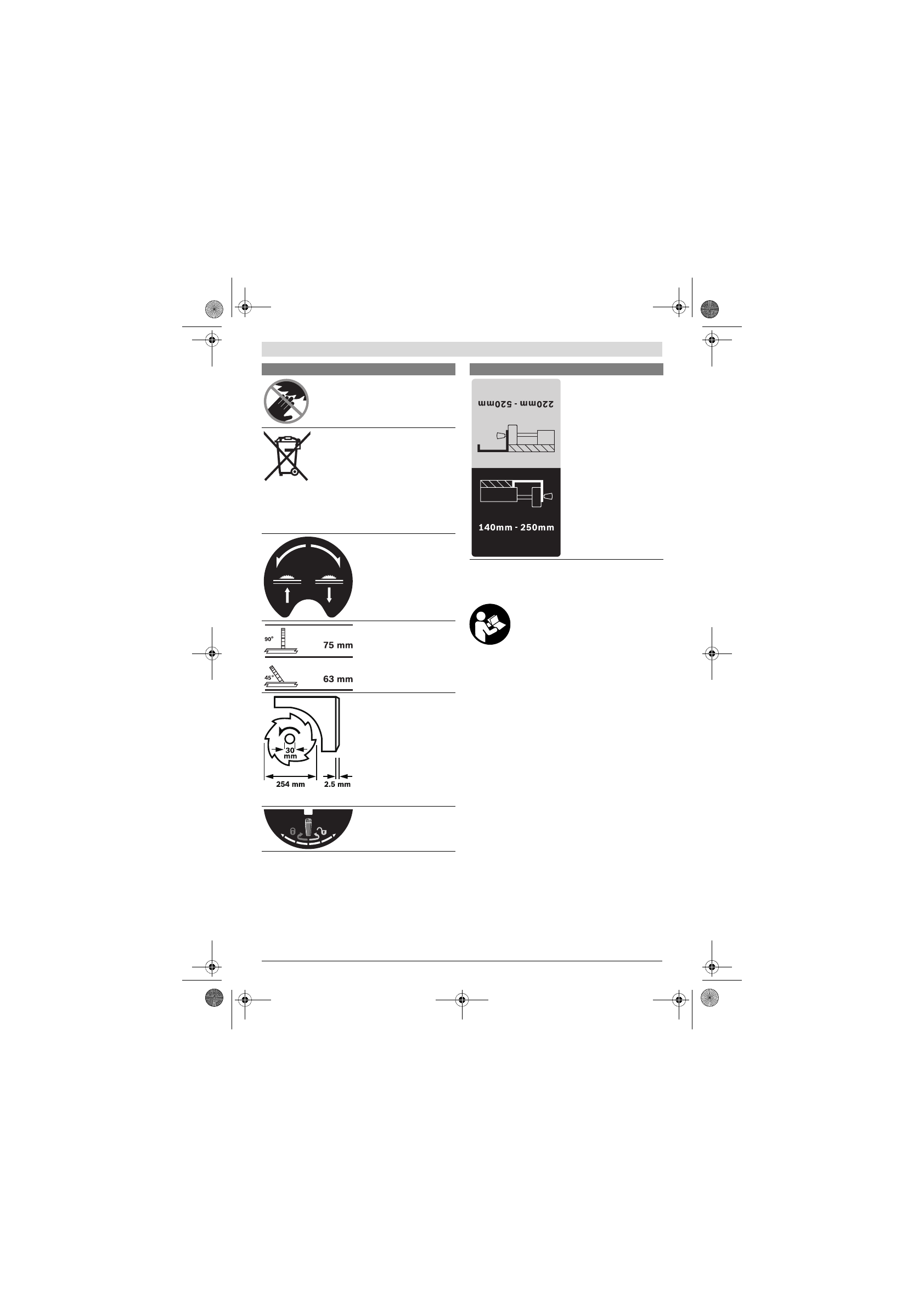

Symbols and their meaning

Indicates the possible posi-
tions of the parallel fence at
the table width enlargement.

The colour of the sticker cor-
responds with the scale col-
ours on the front guide rod.
Depending on the position of
the parallel fence, the scale in-
dicates the clearance to the
saw blade.

Symbols and their meaning
