Do not touch the saw blade after working before it has
cooled.

The saw blade becomes very hot while working.

Products sold in GB only

: Your product is fitted with a

BS 1363/A approved electric plug with internal fuse (ASTA
approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an author-
ised customer service agent. The replacement plug should
have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains sock-
et elsewhere.

Symbols

The following symbols can be important for the operation of
your power tool. Please memorise the symbols and their
meanings. The correct interpretation of the symbols helps
you operate the power tool better and more safely.

Product Description and Specifica-
tions

Read all safety warnings and all instruc-
tions.

Failure to follow the warnings and in-

structions may result in electric shock, fire
and/or serious injury.

Intended Use

The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts in wood. Horizontal
mitre angles of – 47 ° to +47 ° as well as vertical bevel angles
of 0 ° to 45 ° are possible.
The machine is designed with sufficient capacity for sawing
hard and softwood as well as press and particle board.

When using appropriate saw blades, sawing aluminium pro-
files and plastic is also possible.

Product Features

The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.

1

Mounting holes

2

Clamping screw for saw-table extension

3

Saw-table extension

4

Recessed handles

5

Scale for mitre angle

6

Adjustable fence

7

Material clamp

8

Stop for 45 ° bevel angle

9

Stop screw for 45 ° bevel angle

10

Bevel lock lever

11

Locking screw for slide device

12

Slide device

13

Chip ejector

14

Chip deflector

15

On/Off switch

16

Handle

17

Locking switch for releasing the tool arm

18

Blade guard

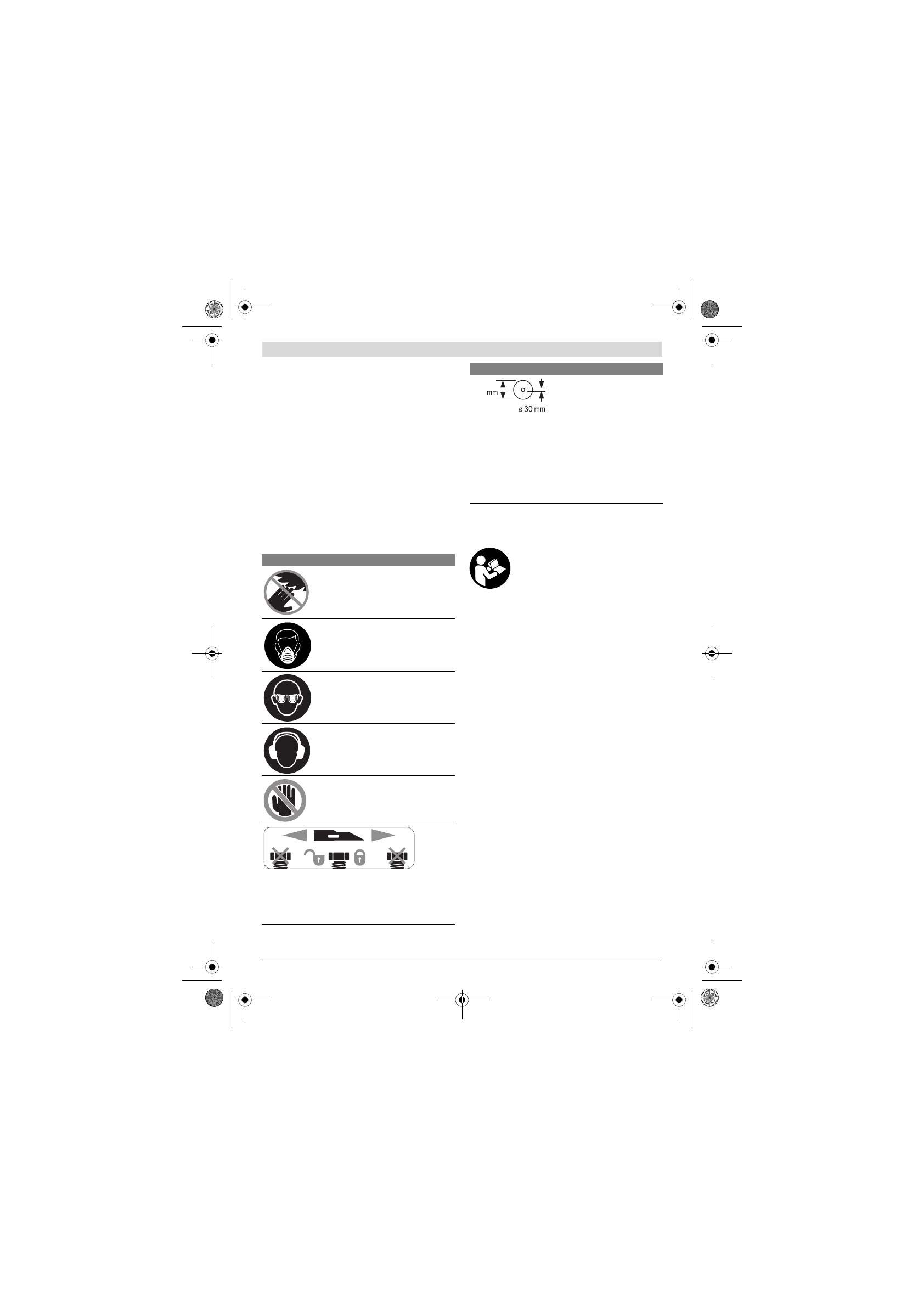

Symbols and their meaning



Keep hands away from the cutting
area while the machine is running.

Danger of injury when coming in con-
tact with the saw blade.



Wear a dust respirator.



Wear safety goggles.



Wear ear protectors.

Exposure to

noise can cause hearing loss.



Danger area! Keep hands, fingers or
arms away from this area.

Sawing bevel angles:

The middle locking screw has to be loos-
ened to move the adjustable fence.
The two outer fixing screws must not be
loosened!

Observe the dimensions of the saw blade.
The hole diameter must match the tool
spindle without play. If it is necessary to
use reducers, ensure that the dimensions
of the reducer are suitable for the base
blade thickness and the saw blade hole di-
ameter, as well as the tool spindle diame-
ter. Wherever possible, use the reducers
provided with the saw blade.

Symbols and their meaning
