 English |

19

Bosch Power Tools

1 619 929 L21 | (12.9.13)

Product Description and Specifica-
tions

Read all safety warnings and all instruc-
tions.

Failure to follow the warnings and in-

structions may result in electric shock, fire
and/or serious injury.

Intended Use

In conjunction with the suitable application tools, the ma-
chine is intended for drilling in wood, metal, and plastic.

The light of this power tool is intended to illuminate the power
tool’s direct area of working operation and is not suitable for
household room illumination.

Product Features

The numbering of the components shown refers to the repre-
sentation of the power tool on the graphic pages.

1

Base plate

2

Quick-clamping lever

3

Quick-clamQuick-clamping deviceping device

4

Drilling column

5

Rack

6

Speed diagram

7

Clamping lever of the height adjustment

8

Clamping lever of depth stop

9

Depth stop

10

Laser warning label

11

Handwheel

12

Motor unit

13

On/Off switch with Quick-Stop function

14

Display

15

Speed regulator

16

Keyless chuck

17

Tool bit *

18

Mounting holes

19

Parallel guide

20

Wing bolts of the parallel guide

21

Gear selector

22

Illumination and laser unit

23

Allen key (4 mm)

24

Fastening screw of the drilling column

25

Guide cog of the drilling column

26

Guide groove of the base plate

27

Securing ring

28

Holding ring

29

Clamping sleeve

30

Illumination button

31

Laser-cross button

32

Button for speed indication/drilling-depth indication

33

Zero-point button

34

Set screws for clamping force of the brake

* Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.

Technical Data

Noise/Vibration Information

Measured sound values determined according to EN 61029.

Typically the A-weighted noise levels of the product are:
Sound pressure level 77 dB(A); Sound power level 90 dB(A).
Uncertainty K = 3 dB.

Wear hearing protection!

Starting the operation of the display

Drilling

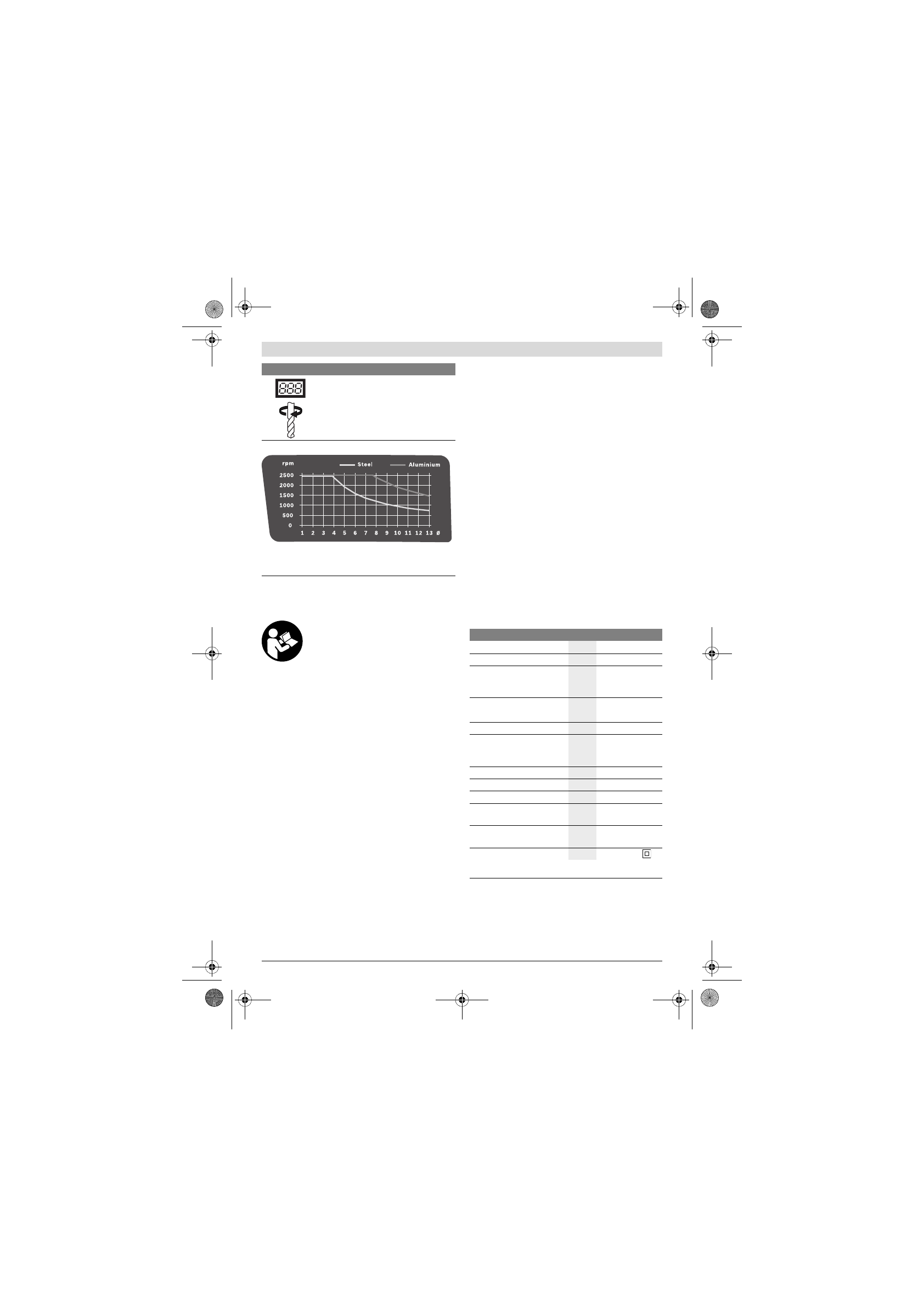

Speed Diagram

The diagram provides the speed (

rpm

) to be set dependent

on the drill bit diameter (

Ø

in mm) for the materials (

Steel

)

and (

Aluminium

).

Symbols and their meaning

Drill Press

PBD 40

Article number

3 603 M07 0..

Rated power input

W

710

No-load speed
– 1st  gear
– 2nd  gear

min

-1

min

-1

200 – 850

600 – 2500

Laser type

nm

mW

650

< 1

Laser class

2

Max. drilling dia.
– Steel
– Wood

mm
mm

13
40

Chuck clamping range

mm

1.5 – 13

Drill stroke, max.

mm

90

Total height

mm

650

Size of base plate
(Width x depth x height)

mm

330 x 350 x 30

Weight according to
EPTA-Procedure 01/2003

kg

11.2

Protection class

/

II

The values given are valid for a nominal voltage [U] of 230 V. For differ-
ent voltages and models for specific countries, these values can vary.
