18

www.snapper.com

Reverse Mowing Option (RMO)

The Reverse Mowing Option allows for mowing (or use of
other PTO driven attachments) while traveling in reverse.
If you choose to mow in reverse, turn the RMO key after
the PTO is engaged.  The L.E.D. light will illuminate, and
the operator can then mow in reverse. Each time the PTO
is engaged the RMO needs to be reactivated if desired.

PTO Switch

The PTO (Power Take-Off) switch engages and disen-
gages attachments that use the PTO. To engage the PTO,
pull UP on the switch. Push DOWN to disengage.

Note that

the operator must be seated firmly in the tractor seat for
the PTO to function.

Ignition Switch

The ignition switch starts and stops the engine, it has three
positions:

OFF

Stops the engine and shuts off the
electrical system.

RUN

Allows the engine to run and powers the
electrical system.

START

Cranks the engine for starting.

NOTE: Never leave the ignition switch in the RUN position
with the engine stopped–this drains the battery.

Ground Speed Pedals

The tractor’s forward ground speed is controlled by the for-
ward ground speed control pedal. The tractor’s reverse
ground speed is controlled by the reverse ground speed
control pedal.
Depressing either pedal will increase ground speed. Note
that the further down the pedal is depressed, the faster the
tractor will travel.

Cruise Control

The cruise control is used to lock the ground speed control
in forward. The cruise control has five lock positions.

Mower Lift Lever

The mower lift lever controls the mower cutting height.
Pull lever to lower the height and pull up to raise the
height.

Seat Adjustment Lever

The seat can be adjusted forward and back. Move the
lever, position the seat as desired, and release the lever
to lock the seat into position.

Transmission Release Valve Lever

The transmission release valve lever deactivates the
transmission so that the tractor can be pushed by hand.
See

Pushing the Tractor By Hand.

Fuel Tank

To remove the cap, turn counterclockwise.

Power Outlet (Select Models)

The power outlet is 12V-DC. Accessory must be rated at
9 amps or less.

Fuel Level Gauge

Displays the fuel level in the tank.

Parking Brake

The parking brake knob is used to lock the parking brake
when the tractor is stopped. Fully depressing the brake
pedal and pulling up on the knob engages the parking
brake.

Brake Pedal

Depressing the brake pedal applies the tractor brake.

12V

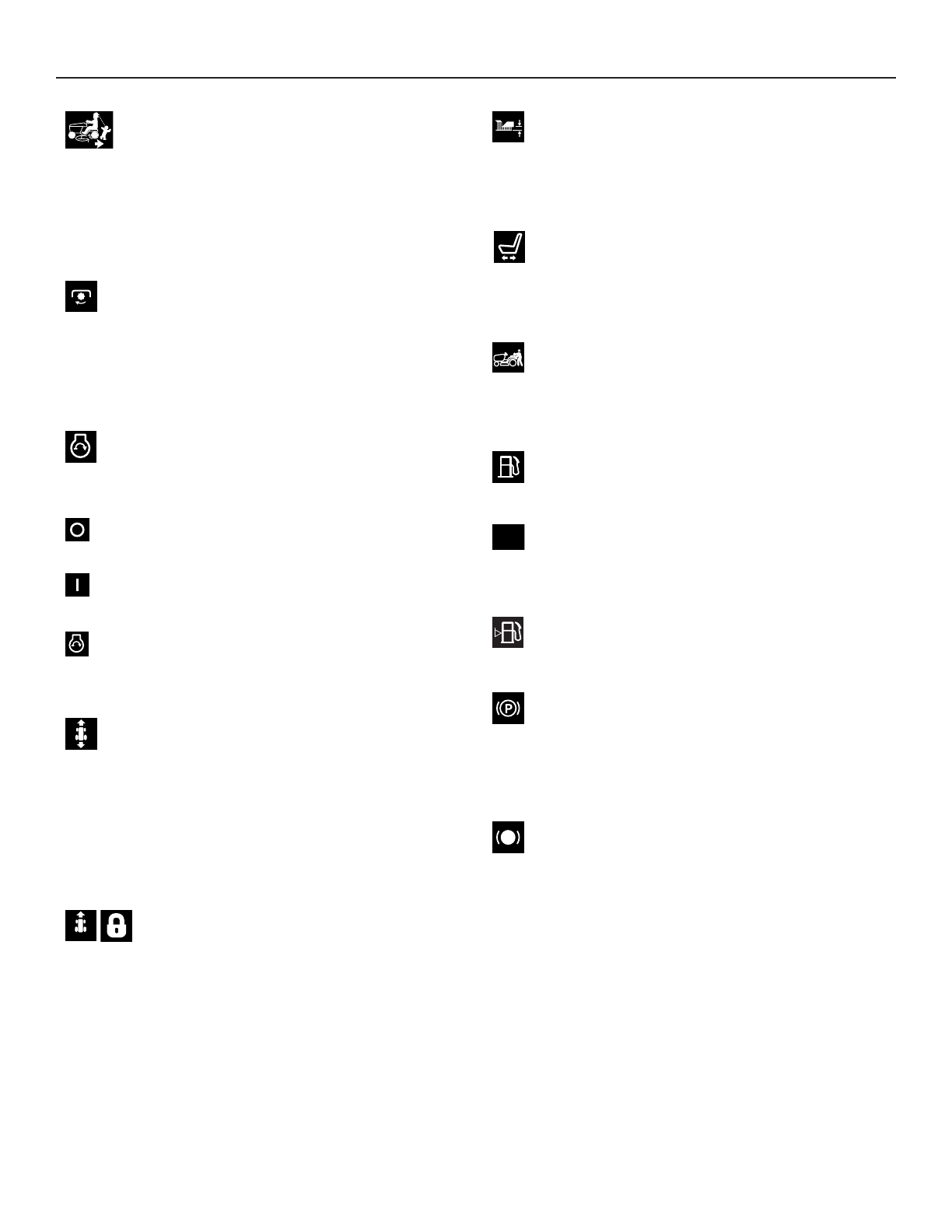

FEATURES AND CONTROLS

Not for

Reproduction
