9

English

ASSEMBLY

PROCEDURES

WARNING

Never tr y to star t engine without side case securely fastened.

1.  Remove chain bar clamp nuts (1).
2.  Remove the side case (2) as pinching the rear par t of the side

case (2). (

Fig.

1

)

*  In case of installing the spiked bumper (3), install the spiked

bumper (3) to the unit with two screws. (

Fig.

2

)

3.  Install the chain bar (4) onto the bolts (5), then push it toward the

sprocket (6) as far as it will go. Make sure that the boss of chain
tension adjust bolt (7)

fi

 ts into the hole of the bar (8). (

Fig.

3

)

NOTE

Slightly move the bar back and for th and make sure the chain
tension boss (7)

fi

 ts into the hole (8) in the bar properly. (

Fig.

3

)

4. Con

fi

 rm the direction of saw chain (9) is correct as in the

fi

 gure,

and align the chain on the sprocket. (

Fig.

4

)

5.  Guide the chain drive links into the bar groove all around the bar.
6.  Install the side case (2) onto the bolts (5).


Then tighten the clamp nuts (1) temporarily. (

Fig.

1

)

7.  Raise the bar end, and tighten the chain (9) by turning the tension

adjustment bolt (10) clockwise. To check proper tension, lightly
lift up the center of chain and there should be about 0.5 – 1.0 mm
clearance between bar and edge of drive link (11). (

Fig.

5,

6

)

CAUTION

PROPER TENSION IS EXTREMELY IMPORTANT

8.  Raise the bar end and securely tighten the chain bar clamp nuts

with the combi box spanner. (

Fig.

6

)

9.  A new chain will stretch so adjust the chain after a few cuts and

watch chain tension carefully for the

fi

 rst half hour of cutting.

NOTE

Check the chain tension frequently for optimum per formance
and durability.

CAUTION

○

  When the chain is excessively tightened, the bar and chain will

be damaged rapidly. Conversely, when the chain is excessively
loosened, it may get out of the groove in the bar.

○

  Always wear gloves when touching the chain.

WARNING

During operation, hold chain saw

fi

  rmly with both hands. A single

hand operation may cause serious injur y.

OPERATING

PROCEDURES

Fuel

(Fig.

7)

WARNING

○

  The chain saw is equipped with a two-stroke engine. Always

run the engine on fuel, which is mixed with oil. Provide good
ventilation, when fueling or handling fuel.

○

  Fuel contains highly

fl

 ammable and it is possible to get the

serious personal injur y when inhaling or spilling on your body.
Always pay attention when handling fuel. Always have good
ventilation when handling fuel inside building.

Fuel

○

  Always use branded 89 octane unleaded gasoline.

○

  Use genuine two-cycle oil or use a mix between 25:1 to 50:1,

please consult the oil bottle for the ratio or HITACHI dealer.

○

  If genuine oil is not available, use an anti-oxidant added quality

oil expressly labeled for air-cooled 2-cycle engine use (JASO
FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW
(2-stroke water-cooling type) mixed oil.

○

  Never use multi-grade oil (10 W/30) or waste oil.

○

  Always mix fuel and oil in a separate clean container.

Always star t by

fi

 lling half the amount of gasoline, which is to be

used.
Then add the whole amount of oil. Mix (shake) the fuel mixture. Add
the remaining amount of gasoline.
Mix (shake) the fuel-mix thoroughly before

fi

 lling the fuel tank.

Fueling

WARNING

(Fig.

8)

○

  Always shut o

ff

  the engine before refueling.

○

  Slowly open the fuel tank (12), when

fi

 lling up with fuel, so that

possible overpressure disappears.

○

  Tighten the fuel cap carefully, after fueling.

○

  Always move the unit at least 3 m from the fueling area before

star ting.

○

  Always  wash  any  spilled  fuel  from  clothing  immediately  with

soap.

○

  Be sure to check any fuel leaking after refueling.

Before  fueling,  clean  the  tank  cap  area  carefully,  to  ensure  that  no
dir t falls into the tank. Make sure that the fuel is well mixed by shaking
the container, before fueling.

Chain

oil

(Fig.

8)

Fill up with chain oil (13). Always use good quality chain oil. When the
engine is running, the chain oil is automatically discharged.

NOTE

When pouring fuel (12) or chain oil (13) into the tank, place the
unit with cap side up. (

Fig.

8

)

ADJUSTMENT

OF

CHAIN

OIL

SUPPLY

The chain oil quantity discharged through the lubrication system is
factor y adjusted to the maximum. Adjust the quantity in accordance
with the operating condition.
Turn the adjusting screw (14) counterclockwise to increase the
quantity and turn it clockwise to decrease the quantity. (

Fig.

9

)

(standard setting turns counterclockwise 1-1 1/2 from slightly seated)

Starting

(Fig.

10 -15)

CAUTION

Before star ting, make sure chain brake is engaged and that the
bar/chain does not touch any thing. (

Fig.

10

)

1.  Set ignition switch (15) to ON position. (

Fig.

11

)

*Push priming bulb (17) several times so that fuel

fl

 ows through

bulb into carburetor. (

Fig.

12

)

2.  Pull the choke lever (16) to choked position (

Fig.

12

).  This will

automatically lock the throttle in starting position.

3.  Pull recoil star ter briskly, taking care to keep the handle in your

grasp and not allowing it to snap back. (

Fig.

13

)

4.  When you hear

fi

 rst ignition, return the choke to run position.

(

Fig.

12

)

5.  Pull recoil star ter briskly again in the aforementioned manner.

(

Fig.

13

)

NOTE

If engine does not star t, repeat procedures from 2 to 5.

6.  As  soon  as  engine  star t,  pullthrottle  lever  full  once  and  release

immediately. (

Fig.

14

) Then half-throttle is disengaged.

Make sure chain brake isdisengaged. (

Fig.

15

)

Allow the engine about 2-3minutes to warm up before subjecting
it to any load.

Do not run the engine at high speed without the load to shor ten
the longevity of the engine.

Chain

brake

operation

(Fig.

16)

Chain brake (18), if so equipped, is designed to activate in an
emergency such as kick-back action. Please check to verify that it
works properly before use.
Application of brake is made by moving the front guard towards the
bar. During the chain brake operation, even if the throttle lever is
pulled, the engine speed does not increase and the chain does not
turn. To release the brake, pull up the chain brake lever.

How

to

con

fi

rm:

1) Turn

o

ff

  the engine.

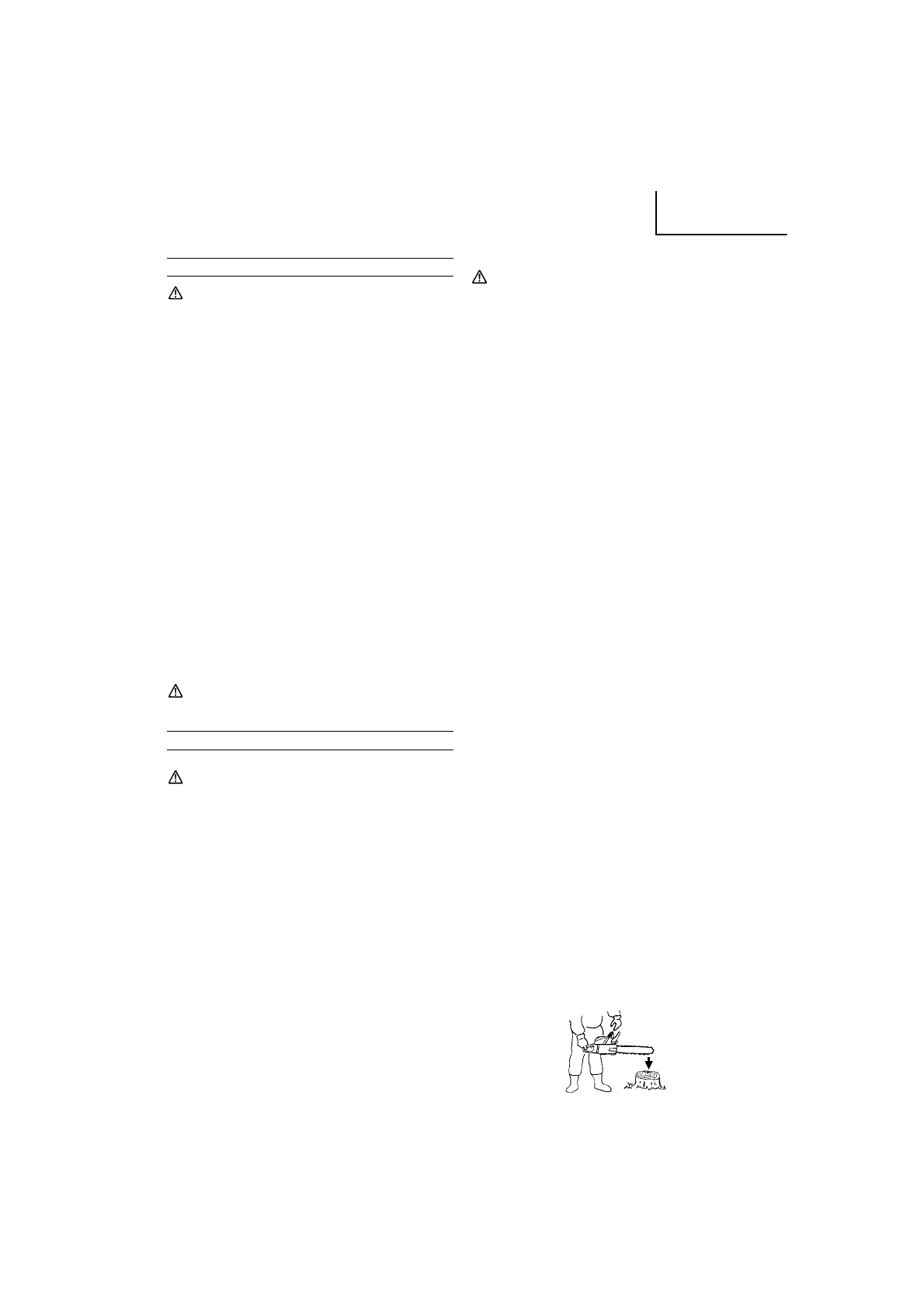

2)  Holding the chain saw horizontally, release your hand from the

front handle, hit the tip of the guide bar to a stump or a piece
of wood, and con

fi

 rm brake operation. Operating level varies by

bar size.
