1-7

English

Figure 2

Figure 3

Figure 4

Figure 5

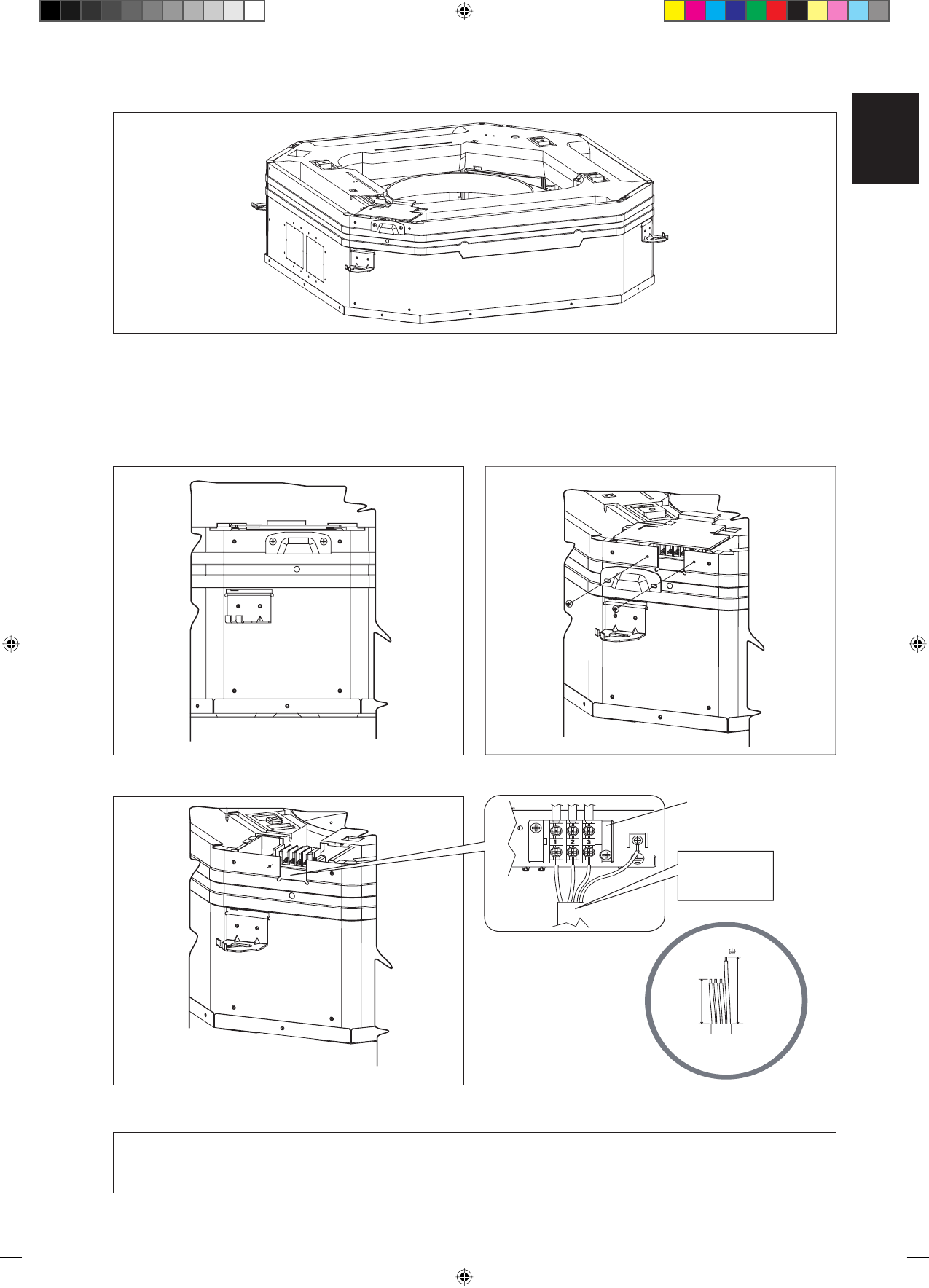

Wires Installation

Figure 1 and Figure 2 shows the location of cover wire in Indoor unit.
Steps to install power supply wires and wires from outdoor unit.

Remove wire cover by removing 2 screws as shown in Figure 3.
Wires will go through the hole as shown in Figure 4 and 5 respectively without crossing the height of the hole.
After that, wire cover will be assembled back to close the wire.

1.
2.
3.

Figure 1

!

CAUTION

Do not install the unit at altitude over 2000m for both indoor and outdoor.

Power supply
terminal block

A

1-3

B

A<B

Shape wires so
that the stop valve
cover fit securely.
