CONTROLS AND FUNCTIONS

6

1

Antenna terminals

Connect FM and AM antennas.
See page 13 for connections information.

2

AUDIO/VIDEO jacks

Connect audio and video components.
See page 12 for connection information.

3

REMOTE jacks

These jacks are used to input/output remote control
signals.
See page 34 for connection information.

4

CONTROL OUT jack

This is a control expansion jack. Consult your nearest
authorized YAMAHA dealer or service center about this
jack.

5

AC IN

Use to plug in the supplied power cable.
See page 15 for connection information.

6

AC OUTLET(S) (SWITCHED)

Use to supply power to your other audio and video
components.
See page 15 for details.

7

CD jacks

Connect a CD player.
See page 12 for connection information.

8

PHONO jacks and GND terminal

Connect a turntable.
See page 12 for connection information.

9

ZONE 2 jacks

Connect a Zone 2 component.
See page 34 for connection information.

0

SUBWOOFER OUTPUT jack

Connect a subwoofer with built-in amplifier.

A

COUPLER jacks

Connect an external unit.
See page 15 for connection information.

B

SPEAKERS terminals

Connect speakers.
See page 11 for connection information.

C

IMPEDANCE SELECTOR switch

Switches the impedance setting.
See page 15 for details.

■

Asia and General models only

D

VOLTAGE SELECTOR

See page 15 for details.

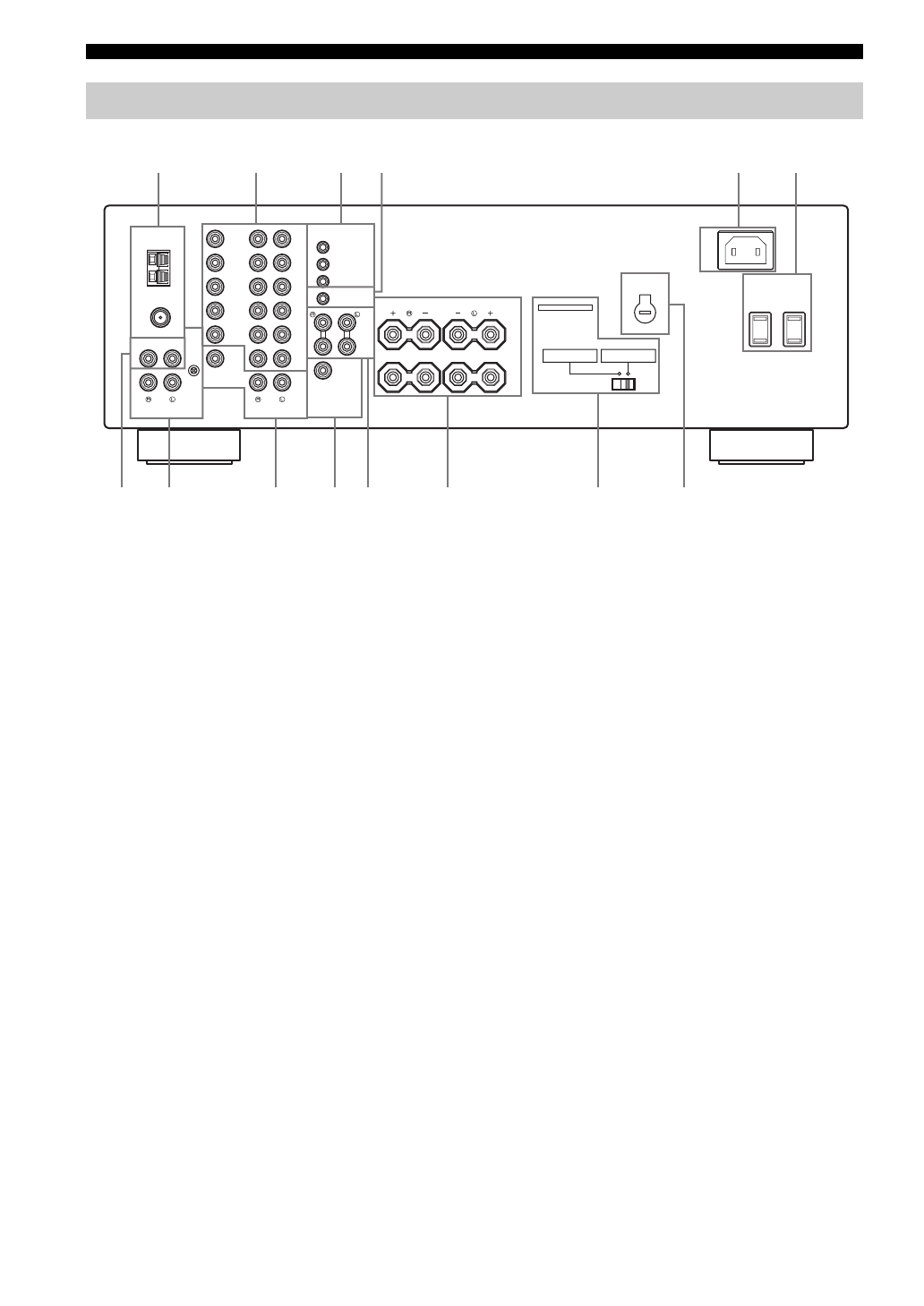

Rear panel

AC OUTLETS

SWITCHED

IMPEDANCE SELECTOR

SET BEFORE POWER ON

SPEAKERS

A

B

AC IN

REMOTE

OUT

IN

DVD

DTV/

CBL

IN

IN

(PLAY)

OUT

(REC)

OUT

MD/

TAPE

ZONE 2

OUT

ZONE 2

OUT

MONITOR

OUT

VCR

DVD

GND

GND

AM

ANT

FM

ANT

75

Ω

UNBAL.

DTV/

CBL

IN

OUT

CD

PHONO

VCR

IN

MAIN

IN

PRE
OUT

SUB

WOOFER

+12V 15mA MAX.

2

1

CONTROL OUT

COUPLER

OUTPUT

AUDIO

AUDIO

VIDEO

TUNER

A OR B: 4

Ω

MIN. /SPEAKER

A+B: 8

Ω

MIN. /SPEAKER

A OR B:  6

Ω

MIN. /SPEAKER

A+B:12

Ω

MIN. /SPEAKER

7

0

C

D

8

A

B

1

2

3

5

6

4

9

VOLTAGE

SELECTOR

(General model)
