CONTROLS AND FUNCTIONS

9

INTR

ODUCTION

English

This section describes the function of each button on the
Zone 2 remote control used to control Zone 2. You can
also use the Zone 2 remote control to control YAMAHA
CD players and YAMAHA cassette tape deck.

1

Infrared signal transmitter

Sends infrared signals.

2

Input selector buttons

Select the desired input source of Zone 2.

3

PRESET

u

 /

d

Selects the preset station number (1 to 8) when TUNER is
selected as the input source.

4

A/B/C/D/E

Selects the preset station group (A to E) when TUNER is
selected as the input source.

5

CD/TAPE control buttons

Controls YAMAHA CD players or YAMAHA cassette
tape deck.

6

ID1/ID2 switch

Switches the remote control ID between ID1 and ID2 (see
page 33).

7

POWER

Turns on Zone 2.

8

STANDBY

Sets Zone 2 to the standby mode.

9

VOLUME +/–

Increases or decreases the sound output level of Zone 2.

This does not affect the OUT (REC) level.

0

MUTE

Mutes the sound output to Zone 2. Press again to restore
the sound output to the previous volume level.

A

CD/TAPE switch

Switches the function of the control buttons numbered

5

between controlling YAMAHA CD players and
controlling YAMAHA cassette tape deck.

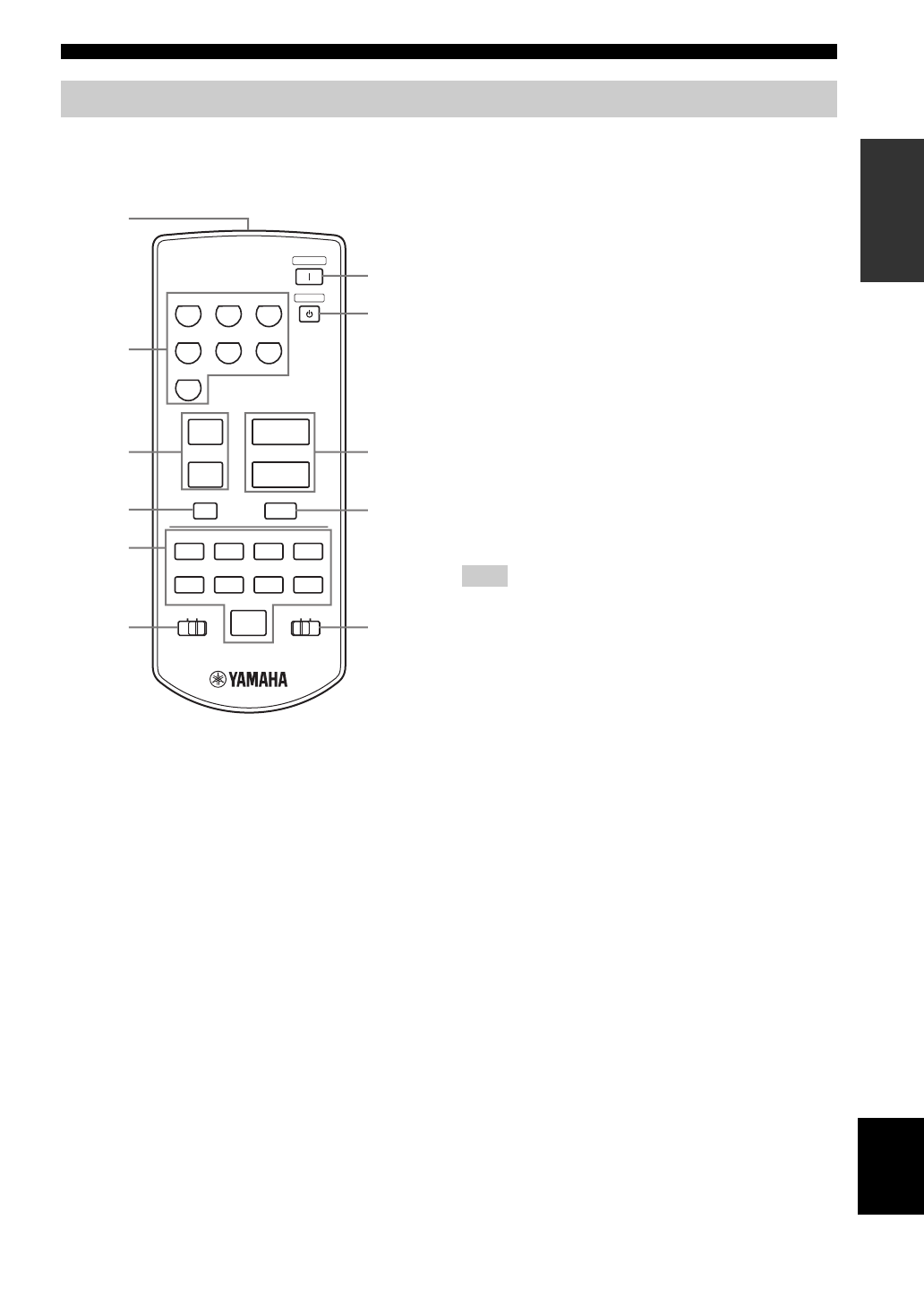

Zone 2 remote control
