CONTROLS AND FUNCTIONS

3

INTR

ODUCTION

English

1

MASTER ON/OFF

Press inward to the ON position to turn on the power of
this unit. Press again to release it outward to the OFF
position to turn off this unit.
See page 16 for details.

Even when this unit is turned off, this unit consumes a small
amount of power to preserve the memory.

2

MAIN ZONE ON/OFF

Turns on Main Zone of this unit or sets it to the standby
mode.
See page 16 for details.

• This switch is operational only when MASTER ON/OFF is

pressed inward to the ON position.

• In the standby mode, this unit consumes a small amount of

power to receive infrared signals from the remote control.

3

SPEAKERS A/B

Turns on or off the speaker set connected to the
SPEAKERS A and/or SPEAKERS B terminals on the rear
panel each time the corresponding button is pressed (see
page 17).

4

ZONE 2 ON/OFF

Turns on Zone 2 or set it to the standby mode. When Zone
2 is turned on, signals are output at the ZONE 2 OUT
jacks.

This switch is operational only when MASTER ON/OFF is
pressed inward to the ON position.

5

ZONE CONTROL

Press to control the input source of Zone 2.

• This button is operational only when Zone 2 is turned on.
• When you press this button, the ZONE 2 indicator flashes in the

front panel display for approximately 5 seconds. Select the
input source of Zone 2 while the indicator is flashing.

• You can select the preset station when TUNER is selected as the

input source of Zone 2.

6

Remote control sensor

Receives infrared signals from the remote control.

Switch the remote control ID between ID1 and ID2 when using
multiple YAMAHA receivers or amplifiers (see pages 9, 32 and
33).

7

Front panel display

Shows information about the operational status of this
unit.

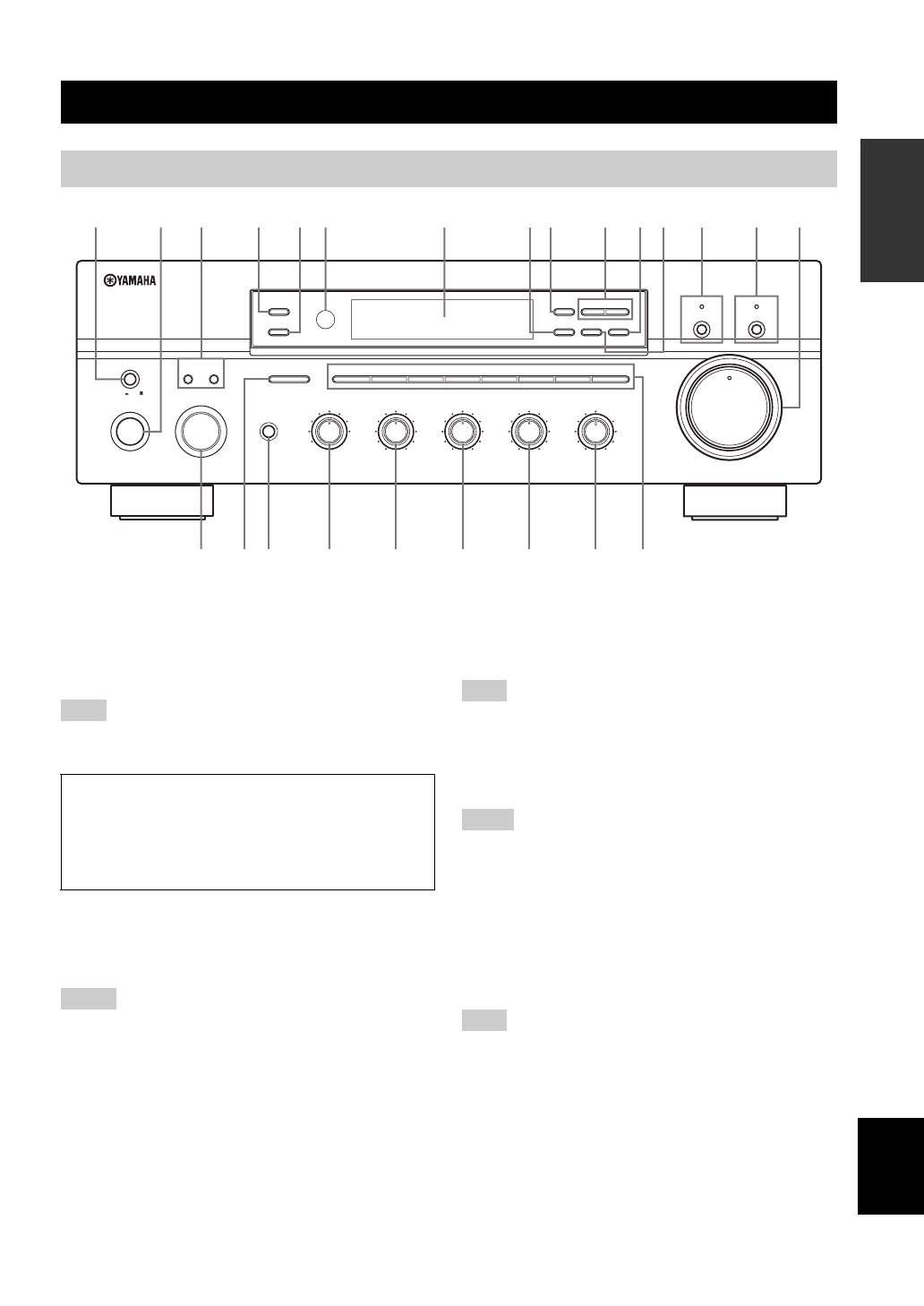

CONTROLS AND FUNCTIONS

Front panel

ON/OFF

INPUT

MAIN ZONE

PHONES

BASS

MASTER

SPEAKERS

ON

OFF

CD DIRECT AMP

PURE DIRECT

5

5

1

0

1

4

4

2

2

3

3

+

–

VOLUME

l

 TUNING

h

ZONE 2 ON/OFF

ZONE CONTROL

FM/AM

EDIT

A/B/C/D/E

1

2

3

4

5

6

7

8

MEMORY

MAN'L/AUTO FM

TUNING MODE

AUTO/MAN'L

B

A

TREBLE

5

5

1

0

1

4

4

2

2

3

3

+

–

BALANCE

5

5

1

0

1

4

4

2

2

3

3

R

L

LOUDNESS

5

7

1

FLAT

6

4

8

2

10

–30dB

3

9

REC OUT

MD/TAPE

SOURCE

CD

DVD

VCR

TUNER

DTV/CBL

PHONO

0

12

12

2

8

4

∞

20

20

60

60

26

26

40

40

16

16

-dB

-dB

DISPLAY

6

3

1

2

5

4

9

8

A B

7

D

C

0

H

G

F

I

J

K

L

M

N

E

(General model)

Note

Memory back-up

The memory back-up circuit prevents the stored data
from being lost. However, the stored data will be lost if
the power cord is disconnected from the AC wall outlet
for more than one week.

Notes

Note

Notes

Note
