1-14
ON/OFF
Indoor (ATXN)
25
35
50
60
Outdoor (ARXN)
25
35
50
60
Additional charge [g/m]
20
20
20
20

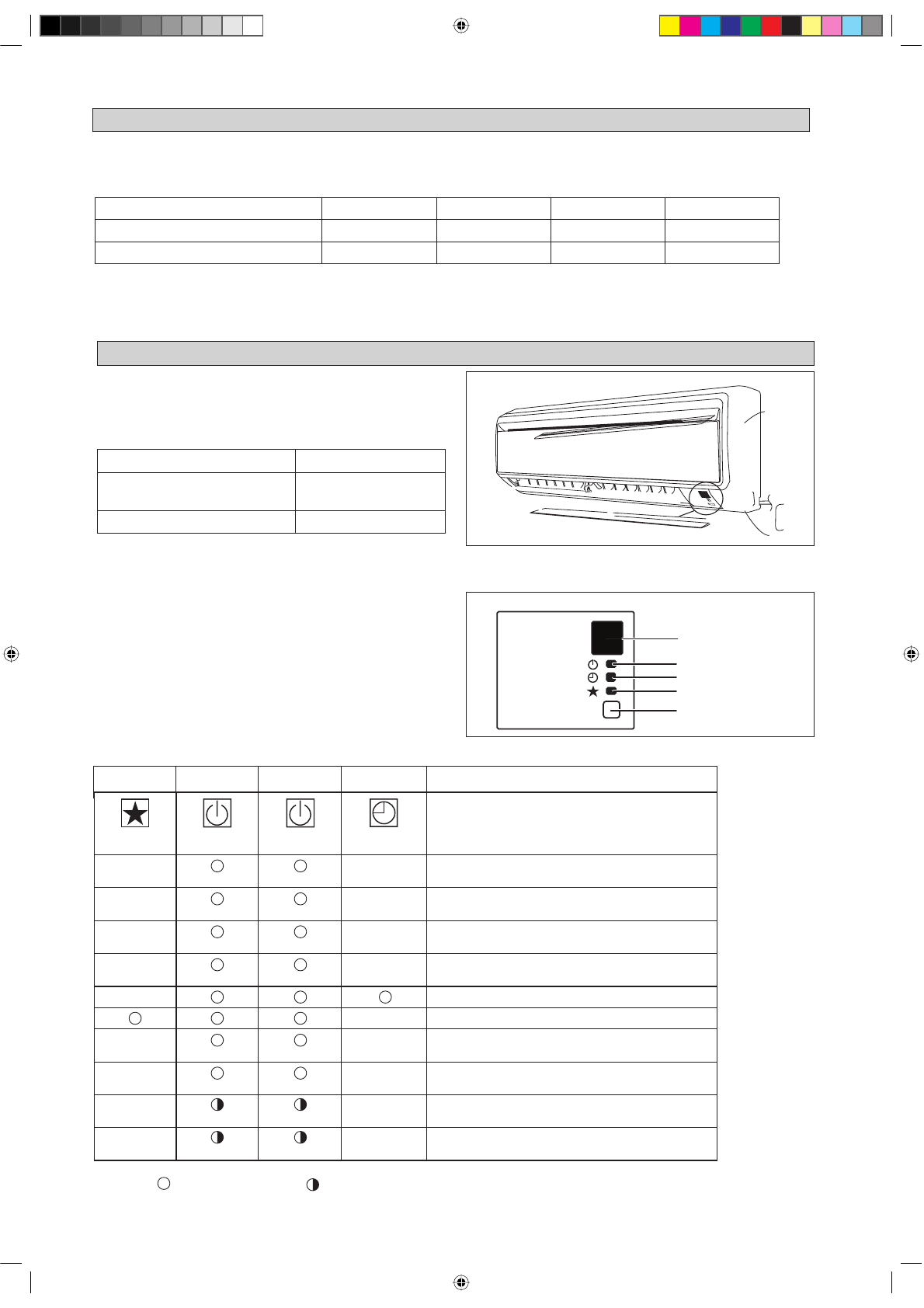

The refrigerant is pre-charged in the outdoor unit. If the piping length is less than 7.5m, then additional charge after
vacuuming
is not necessary. If the piping length is more than 7.5m, then use the additional charge value as indicated in
the table.
Additional refrigerant charge [g] per additional 1m length as tabulated
Example:
ATXN25 & ARXN25 with 12m piping length, additional piping length is 4.5m.
Thus,
Additional charge = 4.5[m] x 20[g/m]
= 90.0[g]
IR Signal Receiver
When an infrared remote control operating signal has been
transmitted, the signal receiver on the indoor unit will respond
as below to conf rm acceptance of the signal transmission.
LED Indicator Lights for Cooling Unit/Heat
Pump Unit
Cooling Unit/Heat Pump Unit
The table shows the LED indicator lights for the air conditioner
unit under normal operation and fault conditions.
The LED indicator lights are located at the side of the air
conditioner unit.
The heat pump units are equipped with an “auto” mode
sensor whereby it will provide reasonable room temperature
by switching automatically to either “cool” or “heat” mode
according to the temperature set by the user.
IR Receiver
Cool/Heat
Timer
Sleep
ON/OFF switch
IR
Receiver
INDICATOR LIGHTS
ON to OFF
1 Long Beep
OFF to ON
Pump down / Cool force on
2 Short Beep
Others
1 Short Beep
LED Indicator Lights: Normal Operation And Fault Conditions For Cooling/Heat Pump Unit
ADDITIONAL CHARGE
1 IM-5WMYJ-1113(2)DK SIESTA_EN.i14 14
1/8/15 2:01:22 PM
COOL/HEAT
(GREEN/RED)
Operation
GREEN
Cool mode
RED
Heat mode
RED
GREEN
Auto mode in Heating operation
Auto mode in Cooling operation
Timer on
GREEN
GREEN
RED
Sleep mode on
Fan mode on
Dry mode on
Defrost operation
GREEN
Unit error
ON
Blinking
COOL/HEAT
(BLUE/RED)
BLUE
RED
RED
BLUE
BLUE
BLUE
RED
BLUE
MV/JX
NV
Model
