EN

9

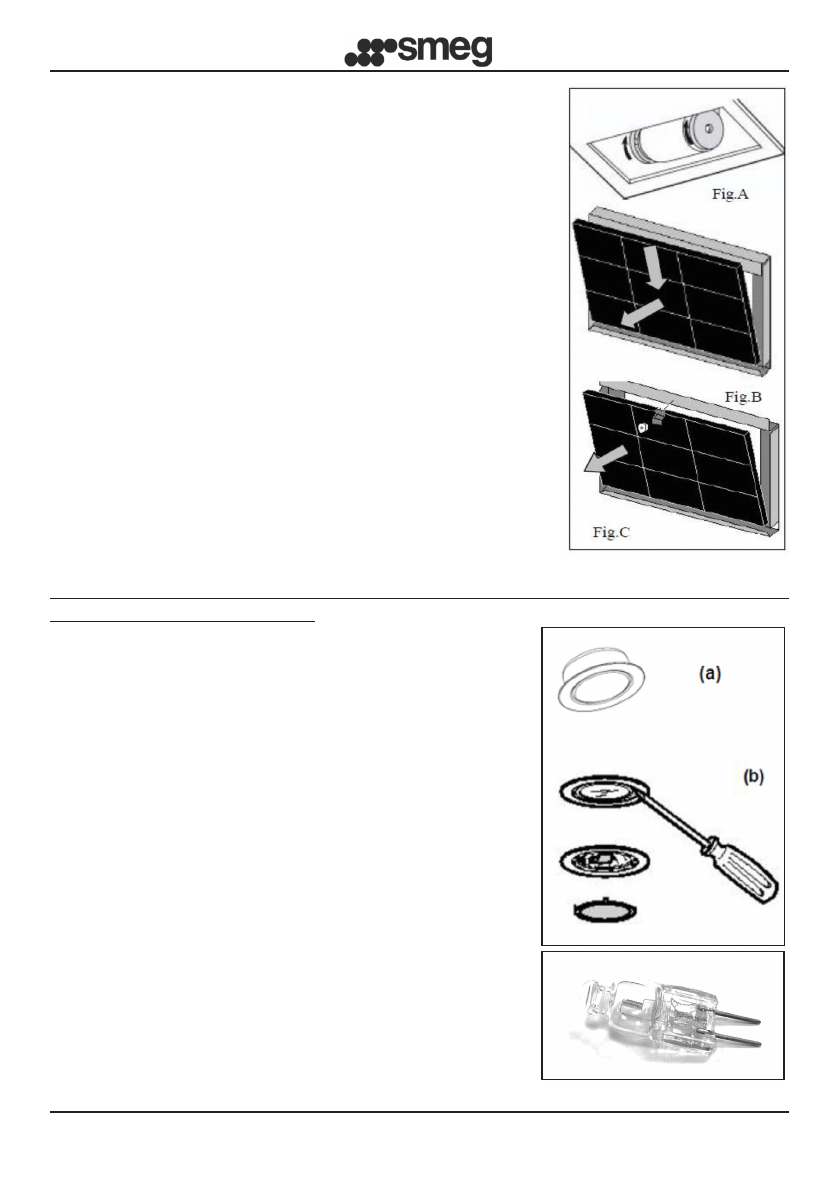

In  the  case  of  the  disc  filter,  simply  tilt  the  two  filters  by

90°  as  shown  in  (fig.A)  and  then  extract  them  from  their

housing.

In the case of a cartridge filter attached with springs, (fig.B)

exert the pressure required to counteract the resistance of

the spring and then remove the filter

In  the  case  of  a  cartridge  filter  blocked  with  a  bracket  and

threaded knob, (fig. C), unscrew the knob, remove the locking

bracket and then remove the active carbon filter. Replace the

carbon  filters  and  the  metal  non-grease  filters  by  performing

the operations in inverse order

Before performing any maintenance and/or cleaning always disconnect the

hood from the power supply

Depending on the model, the hood can be equipped

with different types of lighting, with LED or halogen

lamps:

a)  WITH LED LIGHTS:

 The LED lights guarantee a

significant number of hours of operation. Should it be

replace due to being worn or faulty, the entire spotlight

must  be  replaced.  In  this  case,  contact  qualified

Technical Support. This appliance is equipped with

Class 1M white LED light, in accordance with EN

standard  60825-1:  1994  +  A1:2002  +  A2:2001;

maximum emitted optical power@439nm: 7μW.

Do not look directly at the light with optical instruments

(binoculars, magnifying glass...).

b) Halogen:

 lamp with G4 fitting, 20W

power

 and 12V

voltage.

 Replace the lamp by removing the glass

support ring of the spotlight with a screwdriver. Once

the glass is removed, remove the faulty lamp from

its housing and fit the new lamp. Replace the glass

of the spotlight by blocking it with the ring.

Code ILCOS: HSG/C/UB-20-12-G4

REPLACEMENT LAMPS:
