EN

3

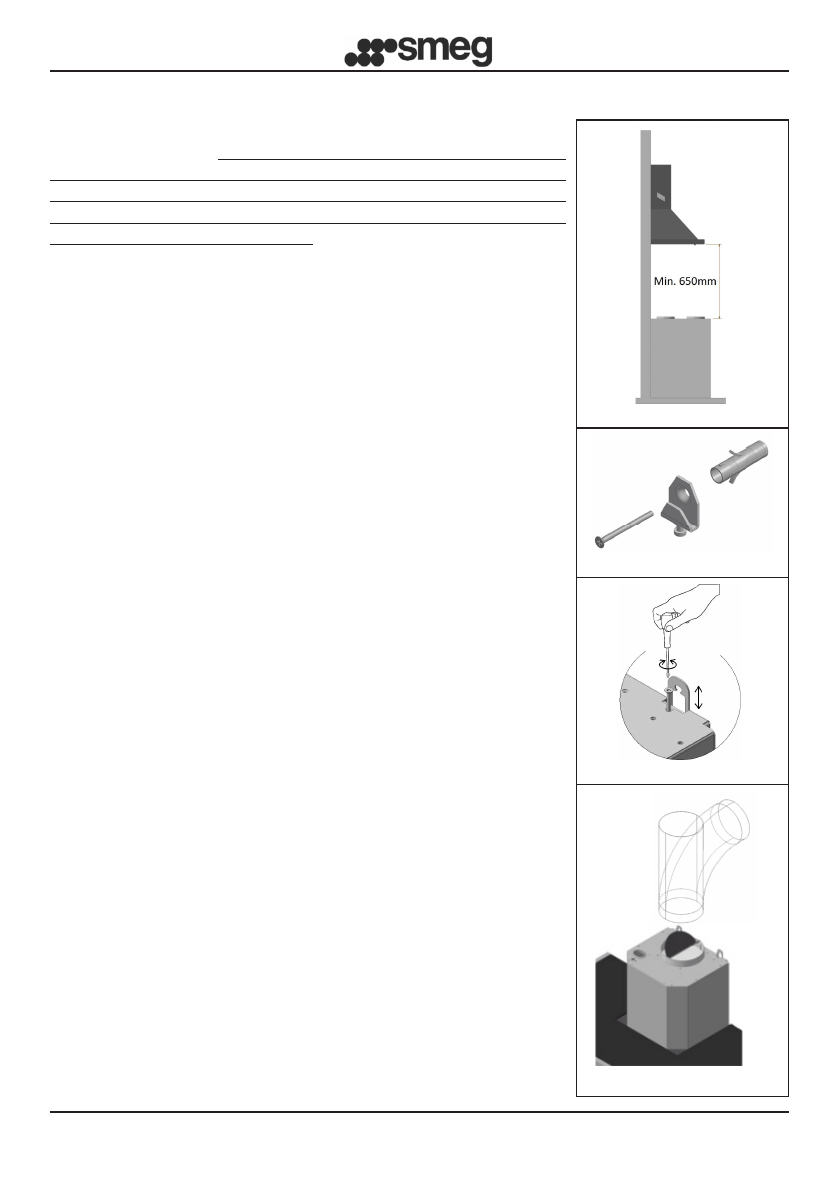

INSTALLATION INSTRUCTIONS:

The hood is supplied with all the accessories necessary

for its installation.

The minimum distance between the

lower surface of the hood and the hob must be at least

650mm for electric hobs (Fig. 1). If the motor inlet is

equipped with a non-return valve for fumes, make sure

it can open and close freely.

For easy installation it is recommended to follow the

procedures described below:

1)  The hood must be centred with respect to the hob surface.

2)  There are different installation procedures depending

on  the  hood  model.  Choose  one  of  the  following  fixing

systems:

a)  2 levelling hooks that fasten on with the supplied

expansion plugs (Fig. 2)

b)  Rear levelling bracket that fastens on with the

supplied expansion plugs (Fig. 3)

c)  For island models refer to the special installation

attachment.

N.B.:  Fixing  systems  a)  and  b)  fit  on  to  the  back  of  the

hood in the holes L1 (Fig. 5).

3)

Remove  the grease  filters and  position  the hood  on  the

wall and mark the reference position for the holes to

anchor the relative fixing system.

4)  Drill the 2 holes previously marked after removing the

hood from the wall

5)

Anchor  the  fixing  system  to  the  wall  by  tightening  the

expansion plug

6)  Mark holes L2 on the wall to secure the plugs safely in

the holes. (plugs supplied)

7)

Hang  the  hood  on  the  fixing  system  (fig.  2  and  3)  and

level it using the adjustment screws ( fig.2 ).

8)

Securely fix the hood by fully tightening the two expansion

screws of the holes L2

AIR CONNECTION SYSTEMS:

EXTRACTION version:

Connect the fume expulsion duct (inside diameter Ø 150

mm) to the exhaust of the motor inlet. The expulsion duct

must not have a diameter Ø of less than 120 mm.

Note that if the hood is supplied with an active carbon

filter, this must be removed (see page 8)

Deviation for Germany:

When the hood and other appliances powered by energy

other than electricity are simultaneously ON, the negative

pressure in the room must not exceed 4 Pa (4 x 10

-5

 bar).

Fig. 1

Fig. 2

Fig. 3

Ø150

Fig. 4
