Extraction Hood for Sanding

The extraction hood

7

 can be used for low-dust

sanding of paint, varnish and plastics in con-
junction with the carbide grinding head

9

 or the

rubber sanding plate

16

 with a sanding sheet

17

. The extraction hood

7

 is not suitable for

working metals.
A suitable Bosch vacuum cleaner can be con-
nected to the extraction hood

7

.

The extraction hood

7

 is mounted in the same

manner as the protection guard

12

. The brush

collar is exchangeable.

Auxiliary Handle

f

Operate your machine only with the auxilia-
ry handle 5.

Screw the auxiliary handle

5

 on the right or left

of the machine head depending on the working
method.

Vibration-dampening Auxiliary Handle

The vibration-dampening auxiliary handle reduc-
es the vibrations, making operation more com-
fortable and secure.

f

Do not make any alterations to the auxiliary
handle.

Do not continue to use an auxiliary handle if it
is damaged.

Hand Guard

f

For operations with the rubber sanding
plate 16 or with the cup brush/wheel
brush/flap disc, always mount the hand
guard 15.

The hand guard

15

 is fastened with the auxiliary

handle

5

.

Mounting the Grinding Tools

f

Before any work on the machine itself, pull
the mains plug.

f

Grinding and cutting discs become very hot
while working; do not touch until they have
cooled.

Clean the grinder spindle

6

 and all parts to be

mounted.

For clamping and loosening the grinding tools,
lock the grinder spindle with the spindle lock
button

2

.

f

Actuate the spindle lock button only when
the grinder spindle is at a standstill.

Other-

wise, the machine may become damaged.

Grinding/Cutting Disc

Pay attention to the dimensions of the grinding
tools. The mounting hole diameter must fit the
mounting flange without play. Do not use reduc-
ers or adapters.
When using diamond cutting discs, pay atten-
tion that the direction-of-rotation arrow on the
diamond cutting disc and the direction of rota-
tion of the machine (see direction-of-rotation ar-
row on the machine head) agree.
See graphics page for the mounting sequence.
To fasten the grinding/cutting disc, screw on
the clamping nut

10

 and tighten with the two-

pin spanner; see Section “

Quick-clamping Nut

”.

f

After mounting the grinding tool and before
switching on, check that the grinding tool is
correctly mounted and that it can turn free-
ly. Make sure that the grinding tool does
not graze against the protection guard or
other parts.

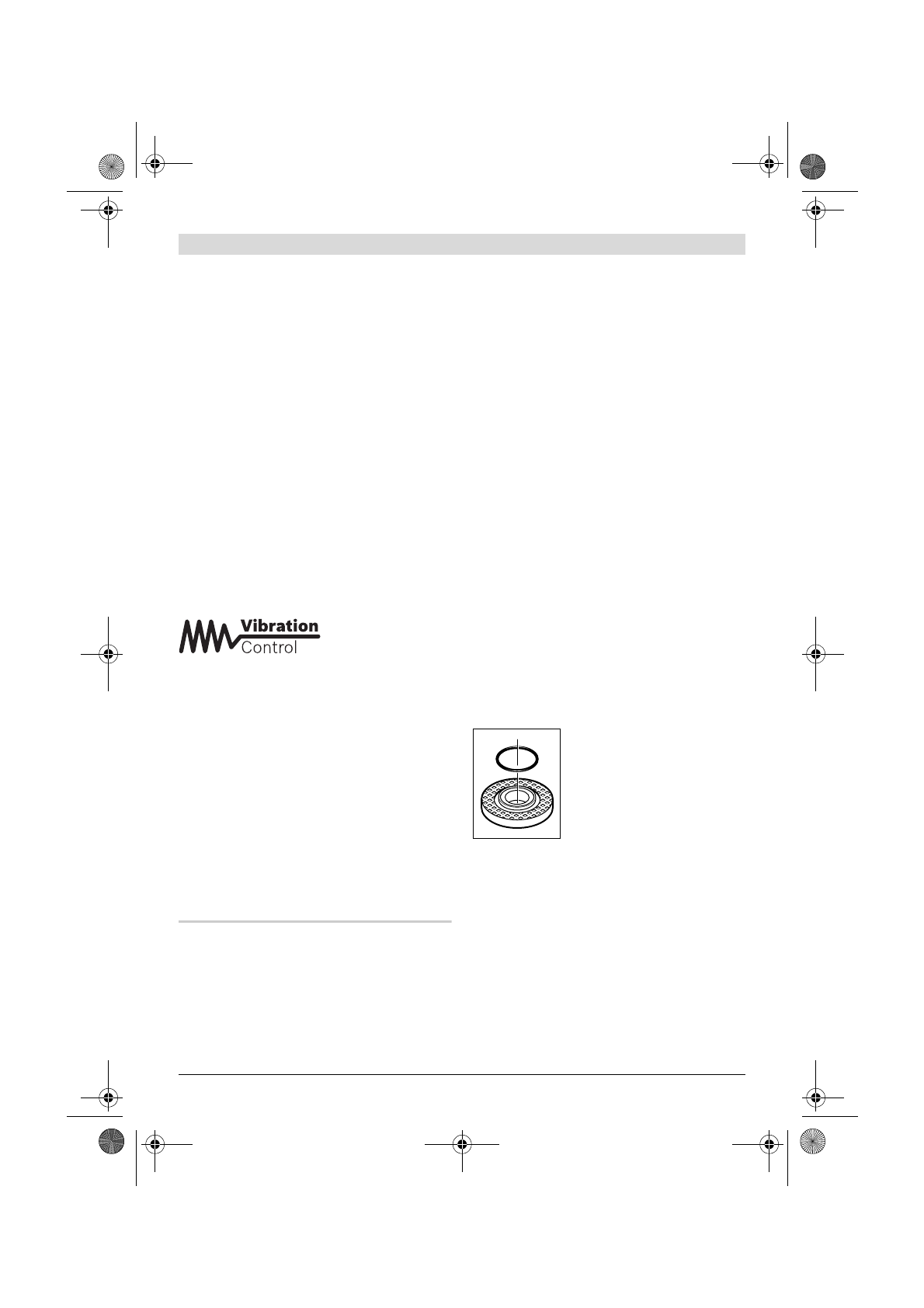

An O-ring (plastic part) is in-
serted in the mounting flange

8

around the centring collar.

If

the O-ring is missing or is
damaged,

 it must in all cases

be replaced (article number
1 600 210 039) before the
mounting flange

8

 is mounted.

Flap Disc

f

For operations with the flap disc, always
mount the hand guard 15.

Rubber Sanding Plate

f

For operations with the rubber sanding
plate 16, always mount the hand guard 15.

See graphics page for the mounting sequence.
Screw on the round nut

18

 and tighten with the

two-pin spanner.
