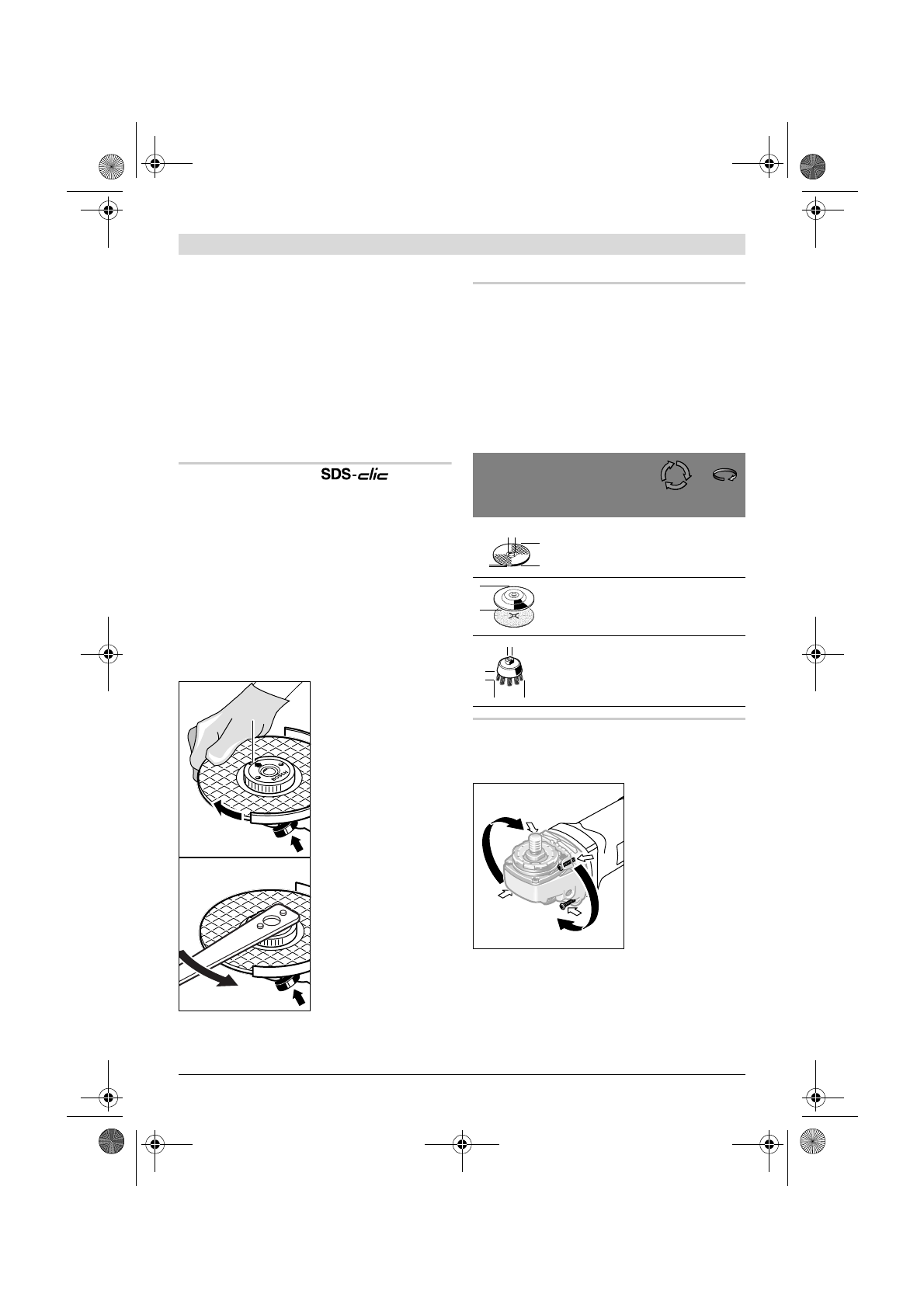

 English |

29

Bosch Power Tools

1 609 929 R00 | (21.4.08)

Cup Brush/Disc Brush

f

For operations with the cup brush/wheel
brush, always mount the hand guard 15.

See graphics page for the mounting sequence.
The cup brush/disc brush must be able to be
screwed onto the grinder spindle until it rests
firmly against the grinder spindle flange at the
end of the grinder spindle threads. Tighten the
cup brush/disc brush with an open-end span-
ner.

Quick-clamping Nut

For convenient changing of grinding tools without
the use of additional tools, you can use the quick-
clamping nut

11

 instead of the clamping nut

10

.

f

The quick-clamping nut 11 may be used only
for grinding or cutting discs.

Use only a flawless, undamaged quick-clamp-
ing nut 11.
When screwing on, pay attention that the side
of the quick-clamping nut 11 with printing
does not face the grinding disc; the arrow must
point to the index mark 22.

Lock the grinder spin-
dle with the spindle
lock button

2

. To tight-

en the quick-clamping
nut, firmly turn the
grinding disc in clock-
wise direction.

A properly attached,
undamaged quick-
clamping nut can be
loosened by hand
when turning the
knurled ring in anti-
clockwise direction.

Never loosen a tight
quick-clamping nut
with pliers. Always
use the two-pin span-

ner.

 Insert the two-pin spanner as shown in

the illustration.

Approved Grinding Tools

All grinding tools mentioned in these operating
instructions can be used.
The permissible speed [rpm] or the circumfer-
ential speed [m/s] of the grinding tools used
must at least match the values given in the table.
Therefore, observe the permissible

rotation-

al/circumferential speed

 on the label of the

grinding tool.

Rotating the Machine Head

f

Before any work on the machine itself, pull
the mains plug.

The machine head
can be rotated with
respect to the ma-
chine housing in
90 °  steps. In this
manner, the On/Off
switch can be
brought into a more
convenient posi-
tion for special
working situations,
e.g., for cutting op-

erations using the cutting guide with dust ex-
traction protection guard

20

/cut off stand or for

left-handed persons.

22

max.

[mm]

[mm]

D

b

d

[rpm]

[m/s]

115
125

6
6

22.2
22.2

7 500
7 500

55
55

115
125

–
–

–
–

7 500
7 500

55
55

75

30 M 14

7 500

45

b

d

D

D

D

b

d
